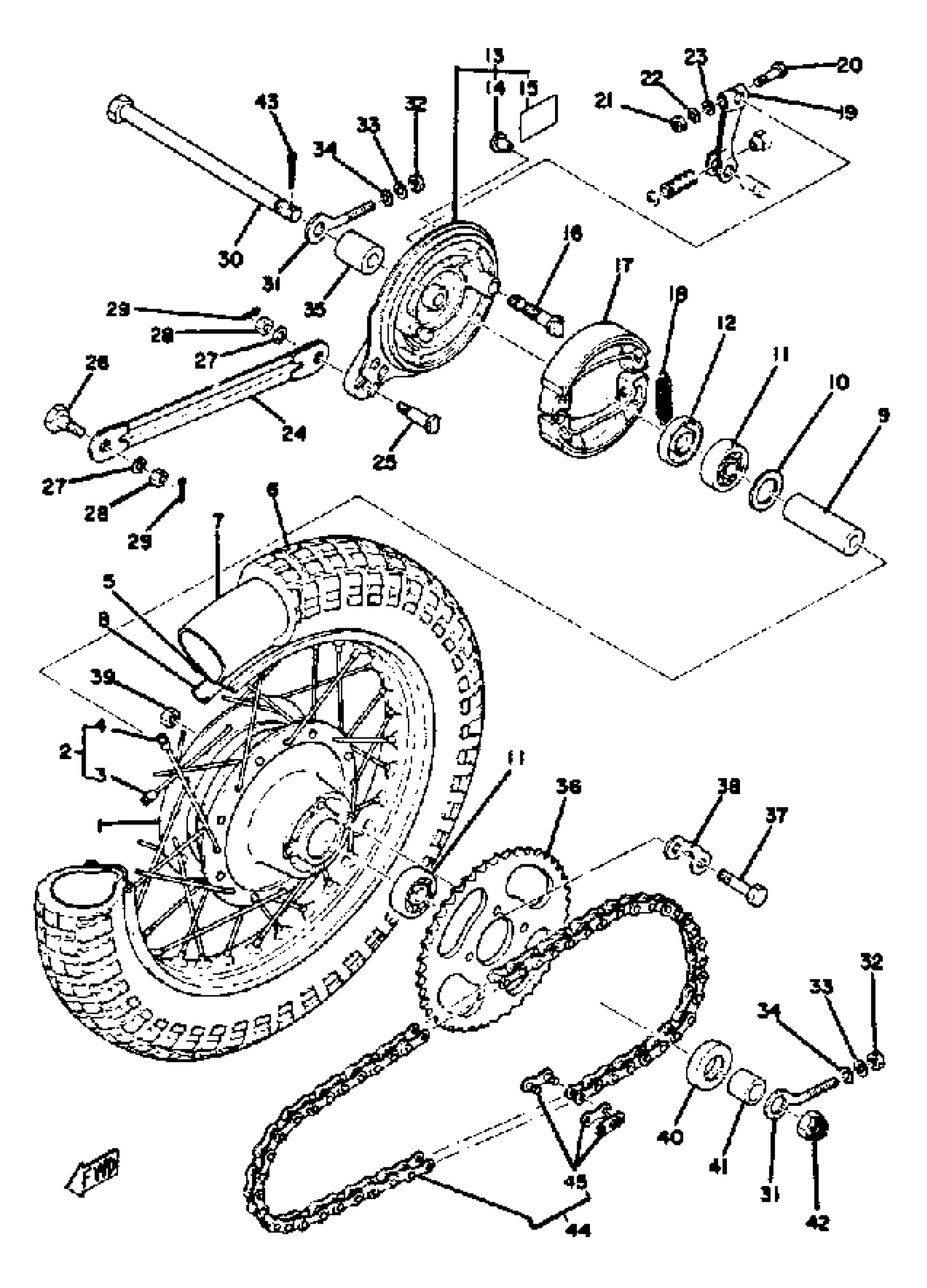

Yamaha GTMXC (GTMX) 1976 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(288-25311-00-00)

Unavailable

2

SPOKE SET, REAR

367-25304-00-00

Unavailable

3

SPOKE SET, INNER 2

(367-25396-90-00)

Unavailable

4

SPOKE SET, OUTER 2

367-25397-90-00

Unavailable

5

RIM 1.40X14

94414-14077-00

Unavailable

6

275-14 IRC TRIALS

94127-14477-00

Unavailable

7

TUBE

94227-14102-00

$21.99

8

BAND, RIM (1K8)

94327-14076-00

$10.49

9

SPACER

90560-12139-00

Unavailable

10

FLANGE, SPACER

109-25315-00-00

$7.99

11

BRG.

93306-30101-00

$36.99

12

OIL SEAL(3TU)

93106-20033-00

$13.49

13

BRAKE SHOE PLT ASSEMBLY

(393-25026-10-Y8)

Unavailable

13

UNAVAILABLE IN PRICE BOOK (393-25320-10-35)

393-25326-10-Y8

Unavailable

14

GROMMET (397)

90480-10068-00

$8.49

15

LABEL, INDICATOR

(437-25134-00-00)

Unavailable

16

CAM SHAFT

122-25351-02-00

Unavailable

17

BRAKE SHOE KIT

2JL-W253E-20-00

Unavailable

17

BRAKE SHOE KIT

4KN-W253E-11-00

Unavailable

18

SPRING, TENSION (566).

90506-16150-00

Unavailable

19

LEVER, CAM SHAFT

122-25355-00-00

Unavailable

20

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

21

NUT, HEXAGON

95380-06600-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

BAR, TENSION

353-25371-00-00

Unavailable

25

BOLT 1092537300

90109-08063-00

Unavailable

26

BOLT (183-25378-00)

90109-08368-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

28

. NUT

95380-08700-00

Unavailable

29

PIN, COTTER

91490-20025-00

Unavailable

30

AXLE, WHEEL

367-25381-01-00

Unavailable

31

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

32

NUT, HEXAGON

95380-06600-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

WASHER, PLAIN (646)

92990-06600-00

Unavailable

35

COLLAR 102253830000

90387-12412-00

Unavailable

36

SPROCKET, DRIVEN (41T)

5J1-25441-20-00

Unavailable

37

BOLT 109254110000

90109-08319-00

Unavailable

38

WASHER

2AL-25412-00-00

Unavailable

39

NUT, HEXAGON (509)

90170-08158-00

Unavailable

40

OIL SEAL, SO-TYPE

93104-18006-00

Unavailable

41

COLLAR (40E)

90387-120F9-00

Unavailable

42

NUT CASTLE(481)

90171-12005-00

Unavailable

43

PIN, COTTER

91490-30030-00

Unavailable

44

CHAIN, DRIVE

9Y580-52095-00

Unavailable

44

CHAIN, DRIVE

9Y580-52095-00

Unavailable

45

JOINT, CHAIN (29A)

94680-52001-00

Unavailable
