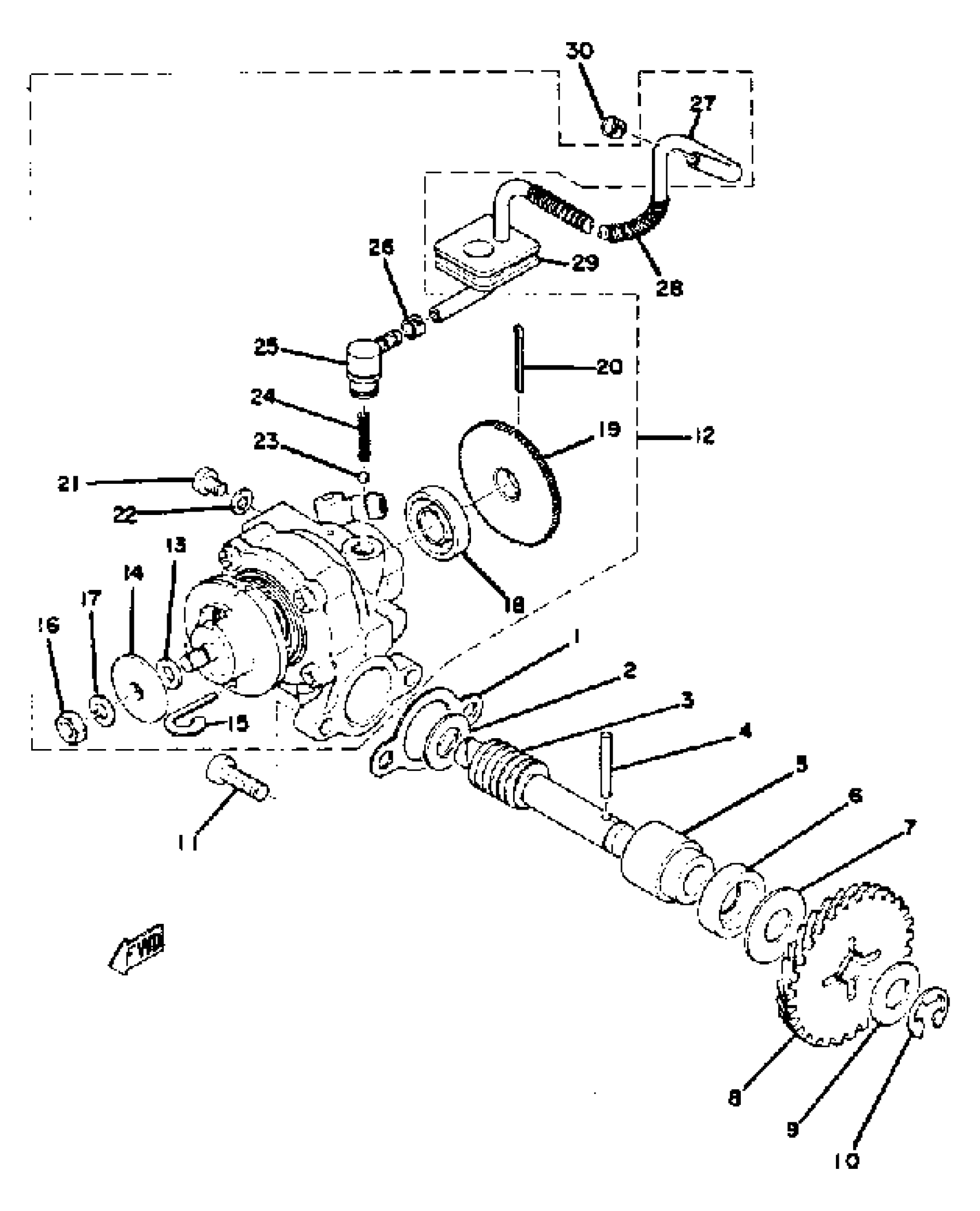

Yamaha GTMXC (GTMX) 1976 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

3

SHAFT, WORM

257-13175-00-00

Unavailable

4

PIN,DOWEL (137)

93603-22028-00

$3.76

5

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

6

OIL SEAL (J10)

93101-10090-00

$8.49

7

WASHER, PLATE(3GM)

90201-106M5-00

$10.49

8

GEAR, PUMP DRIVE

353-13178-00-00

Unavailable

9

WASHER, PLATE

(90201-10129-00)

Unavailable

10

. CIRCLIP, PLUNGER

93440-08001-00

Unavailable

11

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

12

OIL PUMP ASSEMBLY

367-13101-00-00

Unavailable

13

SHIM,PLUNGER

137-13137-00-10

$7.99

14

PLATE, ADJUSTING

137-13138-01-00

Unavailable

15

COVER, ADJUST PULLEY

367-13146-01-00

$6.99

16

NUT, HEXAGON (663)

95380-05600-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

OIL SEAL (J10)

93101-10090-00

$8.49

19

PLATE, STARTER

(353-13128-00-00)

Unavailable

20

. PIN, COTTER

91401-12018-00

Unavailable

21

SCREW, BIND

98980-04008-00

Unavailable

22

GASKET 137131870000

90430-04004-00

Unavailable

23

BALL

93505-32002-00

Unavailable

24

SPRING, CHECK BALL (451)

90501-02217-00

Unavailable

25

NOZZLE

353-13552-01-00

Unavailable

26

CLIP (214-13164-00)

90468-02033-00

Unavailable

27

HOSE (L700)

90445-05M07-00

Unavailable

28

SPRING, COMPRESSION

90501-06025-00

Unavailable

29

HOLDER, OIL PIPE

248-13174-00-00

Unavailable

30

CLIP (214-13164-00)

90468-02033-00

Unavailable
