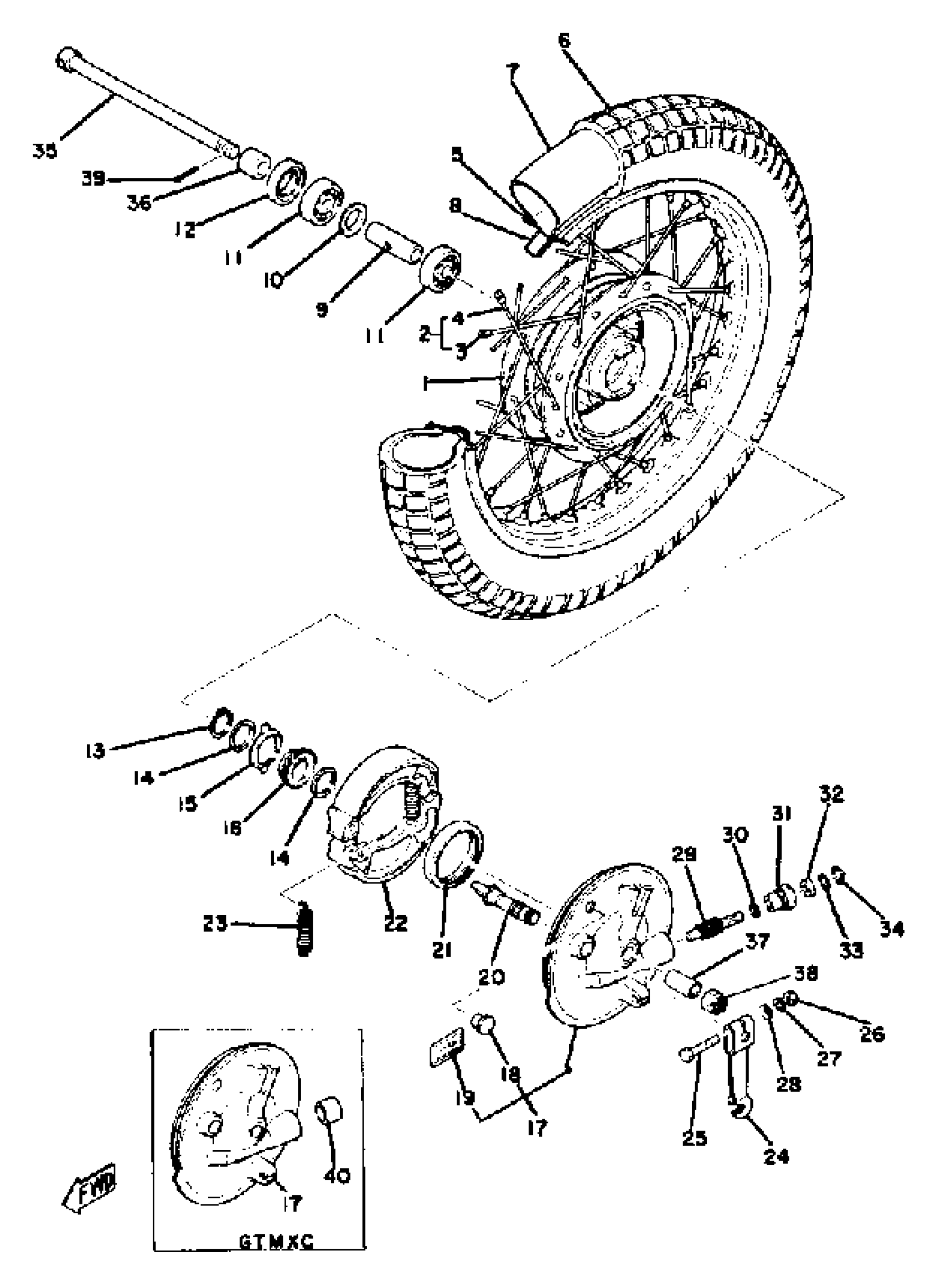

Yamaha GTMXC (GTMX) 1976 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(367-25111-00-Y8)

Unavailable

2

SPOKE SET, FRONT

288-25104-01-00

Unavailable

3

SPOKE SET, INNER 1

(288-25196-90-00)

Unavailable

4

SPOKE SET, OUTER 1

(288-25197-90-00)

Unavailable

5

RIM 1.40X15

94414-15058-00

Unavailable

6

250-15 IRC TRIALS

94125-15478-00

Unavailable

7

TUBE (1K8)

94225-15103-00

$30.99

8

BAND, RIM(3DM)

94313-15154-00

$8.49

9

SPACER, BEARING

90560-10303-00

Unavailable

10

UNAVAILABLE IN PRICE BOOK

195-25115-00-

Unavailable

11

BRG,R-B 6300 35MM 58G NT

93306-30003-00

$41.99

12

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

13

WASHER, PLATE 1832514700

90201-20269-00

$7.49

15

CLUTCH, METER

183-25149-00-00

$6.99

16

GEAR, DRIVE

(368-25135-00-00)

Unavailable

17

BRAKE SHOE PLT ASSEMBLY

393-25016-10-35

Unavailable

18

GROMMET (397)

90480-10068-00

Unavailable

19

LABEL, INDICATOR

(437-25134-00-00)

Unavailable

20

CAM SHAFT

122-25351-02-00

Unavailable

21

SEAL,OIL

93105-47007-00

Unavailable

22

BRAKE SHOE KIT

2JL-W253E-20-00

Unavailable

22

BRAKE SHOE KIT

4KN-W253E-11-00

Unavailable

23

SPRING, TENSION (566).

90506-16150-00

Unavailable

24

LEVER, CAMSHAFT 1

109-25155-00-00

Unavailable

25

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

26

NUT, HEXAGON

95380-06600-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

GEAR, METER

(368-25138-00-00)

Unavailable

30

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

31

BUSHING

109-25136-00-00

Unavailable

32

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

33

O-RING (26H)

93210-14579-00

Unavailable

34

RING, STOP

102-25137-00-00

Unavailable

35

AXLE, WHEEL

99999-02188-00

Unavailable

36

COLLAR

90387-10077-00

Unavailable

37

COLLAR

90387-10264-00

Unavailable

38

NUT 3532518200

90171-10004-00

Unavailable

39

PIN, COTTER

91490-20025-00

Unavailable

40

PLUG 288251390000

90338-18014-00

Unavailable
