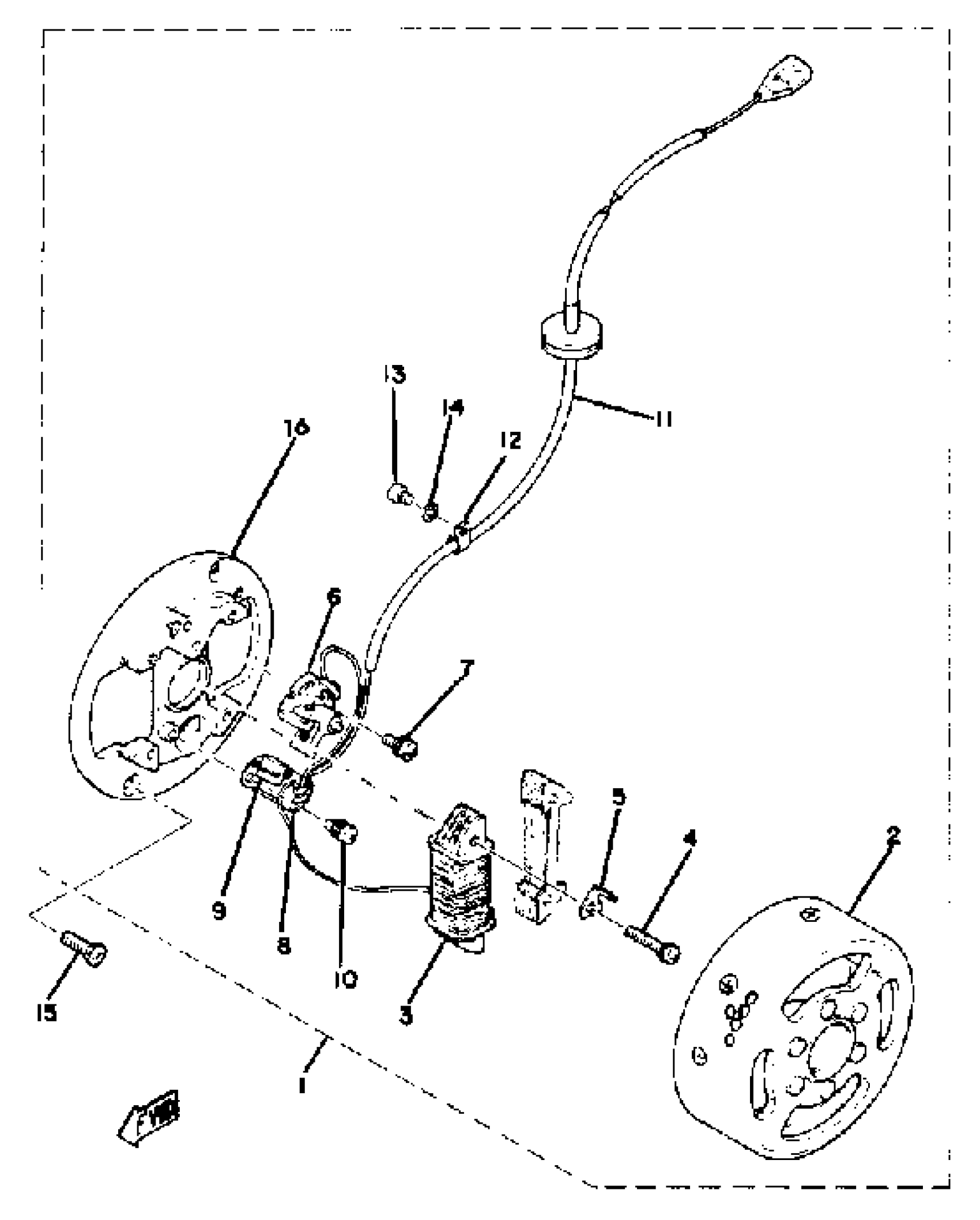

Yamaha GTMXC (GTMX) 1976 FLYWHEEL MAGNETO GTMXC Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLY (367-81300-21-00)

1T0-81300-20-00

Unavailable

2

ROTOR ASSEMBLY

(1T0-81350-20-00)

Unavailable

3

. COIL, SOURCE

207-81312-21-00

Unavailable

4

SCREW, PAN HEAD

98517-04025-00

Unavailable

5

. PLATE, TIMING

296-81332-20-00

Unavailable

6

. CONTACT BRKR ASSEMBLY

1V1-81321-90-00

Unavailable

7

SCREW, PAN HEAD

110-81346-21-00

$5.49

8

. CONDENSER

296-81325-90-00

Unavailable

9

. LUBRICATOR

116-81331-20-00

Unavailable

10

SCREW, PAN HEAD

110-81346-21-00

$5.49

11

LEAD WIRE ASSEMBLY

(367-81315-20-00)

Unavailable

12

CLAMP

(367-81328-20-00)

Unavailable

13

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

SCREW, FLAT

98707-05016-00

$7.99

16

BASE, MAGNETO

520-81309-20-00

Unavailable
