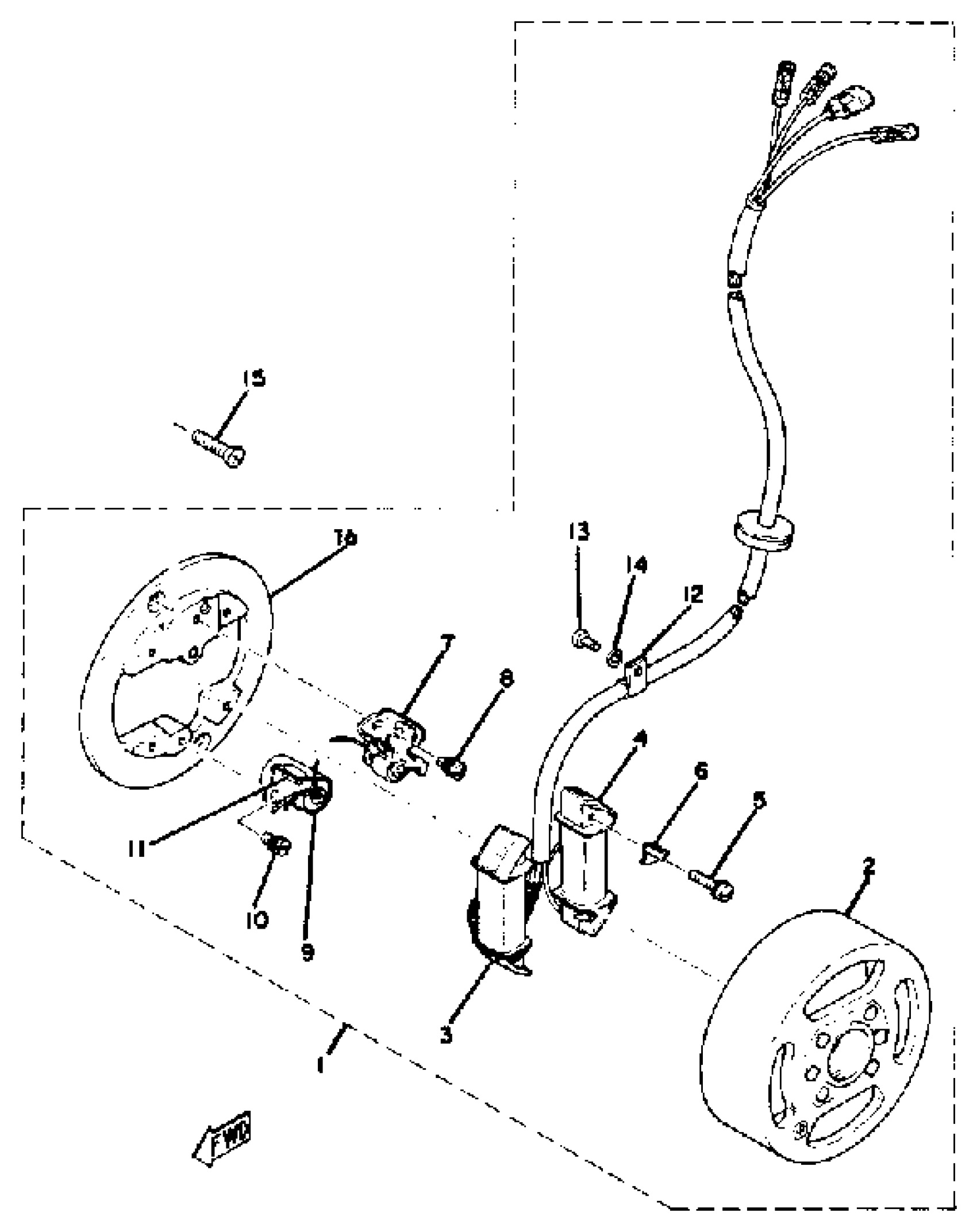

Yamaha GTMXC (GTMX) 1976 FLYWHEEL MAGNETO GT80C Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLY

(368-81300-11-00)

Unavailable

2

ROTOR ASSEMBLY

(2A3-81350-11-00)

Unavailable

3

. COIL, IGNITION 1

368-81311-10-00

Unavailable

4

COIL, LIGHTING 1

(368-81313-10-00)

Unavailable

5

SCREW, PAN HEAD

98517-04025-00

Unavailable

6

PLATE, TIMING

(296-81332-10-00)

Unavailable

7

. CONTACT BREAKER ASSY

207-81321-90-00

Unavailable

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

8

POINT GAUGE

(169-28121-00-00)

Unavailable

8

. CONTACT BREAKER ASSY

207-81321-90-00

Unavailable

8

. CONDENSER 2

207-81326-90-00

Unavailable

8

TUNE KIT JT/GT/A-F

(ACC-01100-67-00)

Unavailable

8

B7HS NGK 4PK

B7H-S0000-00-00

Unavailable

9

. CONDENSER 2

207-81326-90-00

Unavailable

10

SCREW, PAN HEAD

110-81346-21-00

$5.49

11

. LUBRICATOR

207-81331-10-00

Unavailable

12

. CLAMP

109-81328-11-00

Unavailable

13

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

15

SCREW, FLAT

98707-05016-00

Unavailable

16

BASE, MAGNETO

(368-81309-10-00)

Unavailable
