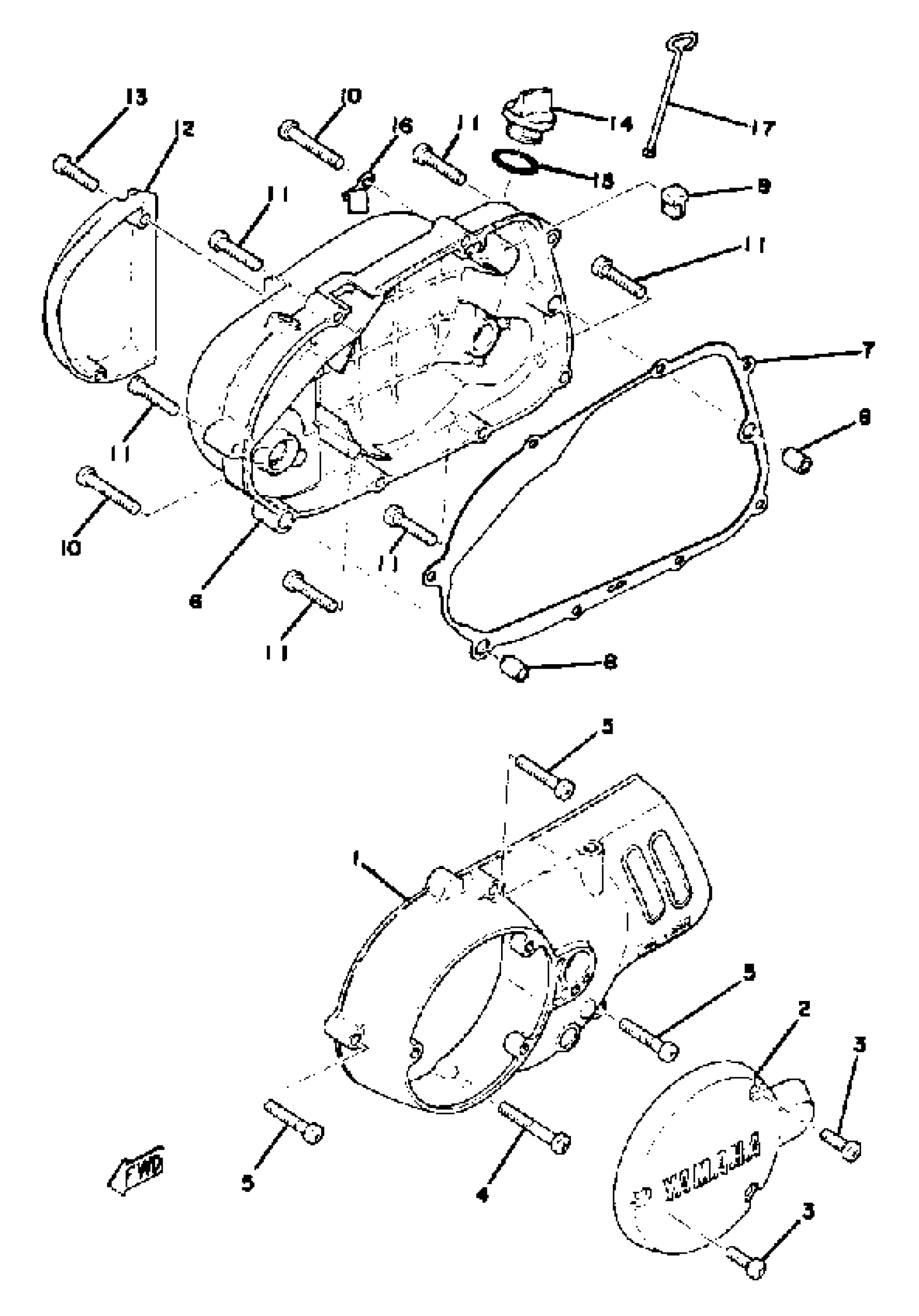

Yamaha GTMXC (GTMX) 1976 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

353-15411-00-98

Unavailable

1

COVER, CRANKCASE L (353-15411-00-Y4)

353-15411-00-Y4

Unavailable

2

COVER, GENERATOR

353-15415-00-98

Unavailable

2

COVER, GENERATOR

353-15415-00-Y4

Unavailable

3

SCREW, PAN

98517-06020-00

$8.49

3

SCREW PAN HEAD

98580-06020-00

$8.49

4

SCREW, PAN

98507-06045-00

$3.14

4

SCREW PAN HEAD

98580-06545-00

$5.60

5

SCREW, PAN

98517-06030-00

Unavailable

5

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

6

COVER, CRANKCASE R

353-15421-00-00

Unavailable

6

COVER, CRANKCASE R

353-15421-09-00

Unavailable

7

GASKET, CRANKCASE COVER 1

3MT-15451-00-00

$25.99

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

SCRAPER, OIL

353-15437-02-00

Unavailable

10

SCREW, PAN

98507-06040-00

Unavailable

10

SCREW PAN HEAD

98580-06040-00

Unavailable

11

SCREW, PAN

98517-06030-00

Unavailable

11

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

12

COVER, OIL PUMP

353-15416-00-00

Unavailable

12

COVER, OIL PUMP

(353-15416-00-98)

Unavailable

13

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

13

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

14

PLUG, OIL

3Y1-15363-10-00

Unavailable

15

O-RING

93210-21190-00

Unavailable

16

HOLDER, OIL PIPE

367-13174-00-00

Unavailable

17

GAUGE, LEVEL

353-15361-00-00

Unavailable
