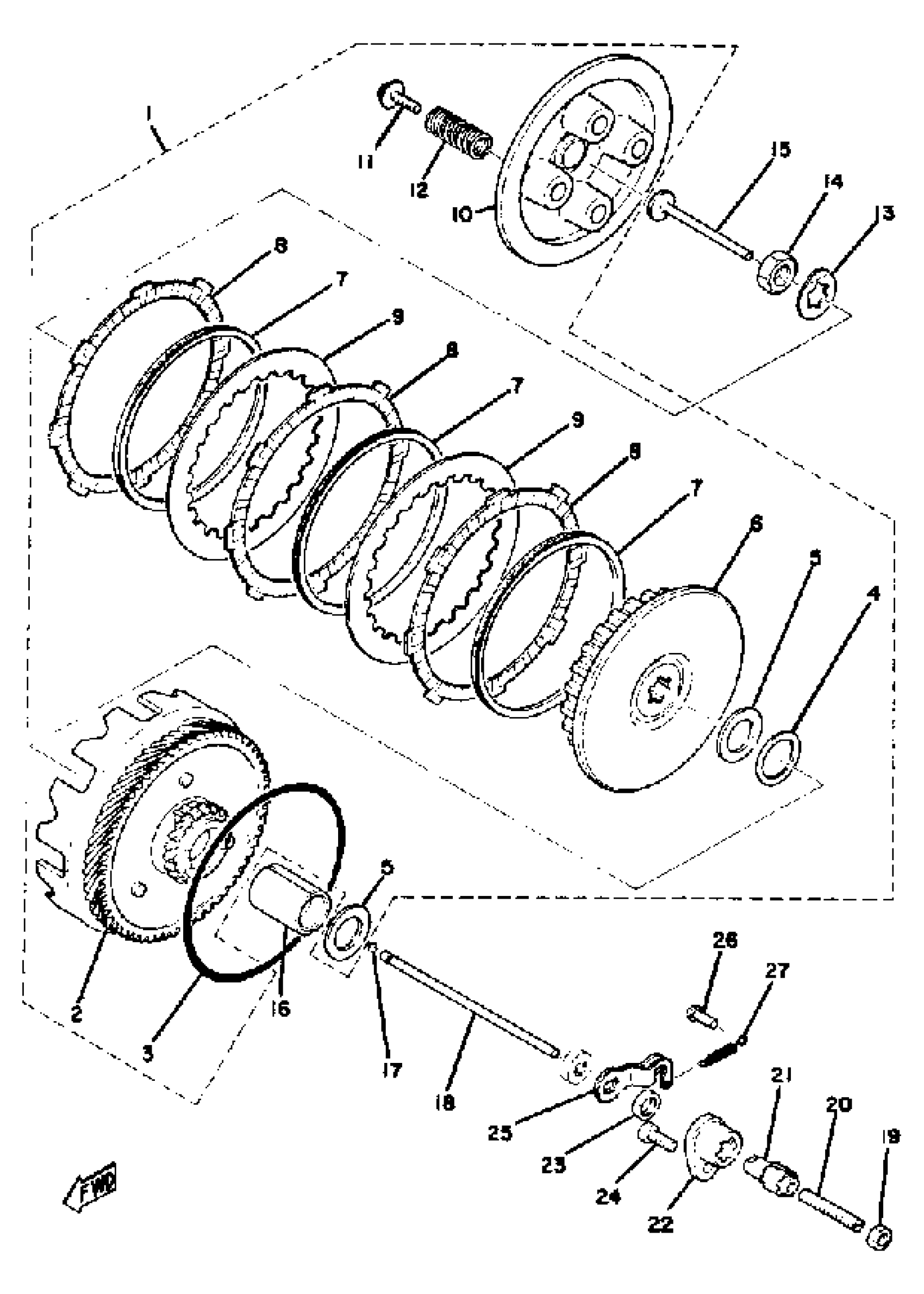

Yamaha GTMXC (GTMX) 1976 CLUTCH Diagram
#
Description
Price
1
CLUTCH ASSEMBLY
(353-16301-01-00)
Unavailable
2
. PRI DRVN GEAR
353-16150-02-00
Unavailable
4
WASHER, PLATE
90201-23315-00
Unavailable
6
. BOSS, CLUTCH
353-16371-00-00
Unavailable
7
RING, CUSHION
131-16367-00-00
Unavailable
9
PLATE, CLUTCH 1
257-16324-10-00
Unavailable
10
. PLATE, PRESSURE 1
353-16351-00-00
Unavailable
13
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
16
SPACER
90560-17123-00
Unavailable
17
BALL
93503-16003-00
Unavailable
18
ROD, PUSH (2)
353-16357-00-00
Unavailable
19
NUT(650)
95380-06700-00
Unavailable
20
BOLT SET 241163430000
90113-06013-00
Unavailable
21
SCREW, PUSH
241-16341-01-00
Unavailable
22
HOUSING, PUSH SCREW
353-16396-00-00
Unavailable
23
SEAL 0IL (2V7)
93104-10085-00
Unavailable
24
SCREW, PAN
98507-06014-00
Unavailable
25
LEVER, PUSH
451-16342-00-00
Unavailable
26
HOOK, SPRING
132-16346-00-00
Unavailable
27
SPRING TENSION 257163450000
90506-07066-00
Unavailable
