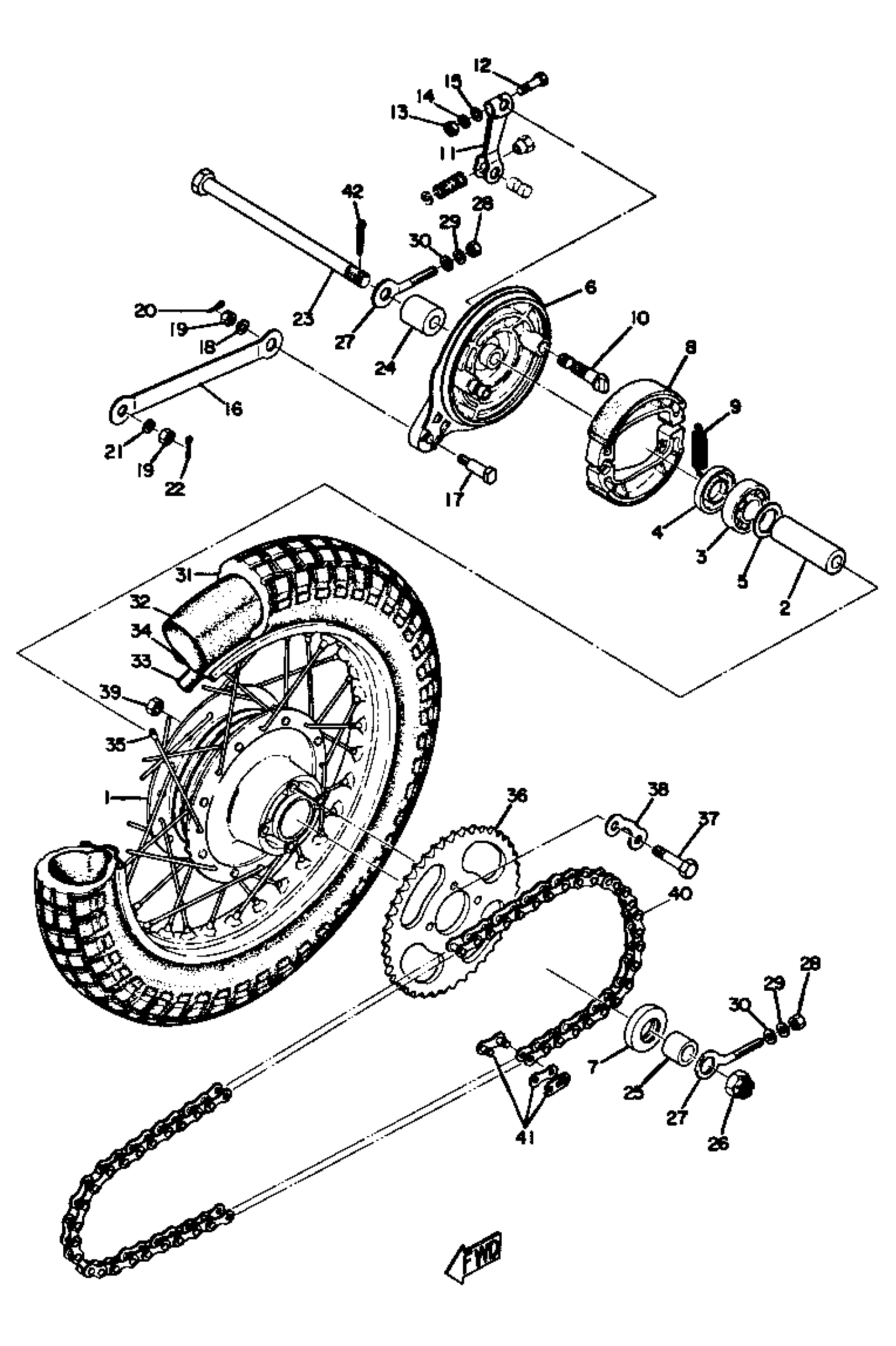

Yamaha GTMX (GTMX) 1973 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(288-25311-00-00)

Unavailable

2

SPACER

90560-12139-00

Unavailable

3

BRG.

93306-30101-00

$36.99

4

OIL SEAL, SO-TYPE

93104-18006-00

Unavailable

5

FLANGE, SPACER

109-25315-00-00

$7.99

6

BRAKE SHOE PLT ASSEMBLY

(393-25026-10-Y8)

Unavailable

6

BRAKE SHOE PLT ASSEMBLY

(393-25320-10-38)

Unavailable

7

OIL SEAL(3TU)

93106-20033-00

$13.49

8

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

9

SPRING, TENSION (566).

90506-16150-00

$9.49

10

CAM SHAFT

122-25351-02-00

Unavailable

11

LEVER, CAM SHAFT

122-25355-00-00

$30.99

12

BOLT, HEXAGON

97017-06030-00

$3.61

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

16

BAR, TENSION

(102-25371-00-00)

Unavailable

17

BOLT 1092537300

90109-08063-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

. NUT

95380-08700-00

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable

21

WASHER, PLAIN

92990-08200-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable

23

AXLE, WHEEL

367-25381-01-00

Unavailable

24

COLLAR 102253830000

90387-12412-00

Unavailable

25

COLLAR (40E)

90387-120F9-00

Unavailable

26

NUT CASTLE(481)

90171-12005-00

Unavailable

27

UNAVAILABLE IN PRICE BOOK

102-53890-00-0

Unavailable

28

NUT, HEXAGON

95380-06600-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

31

275-14 IRC TRIALS

94127-14477-00

Unavailable

32

TUBE

94227-14102-00

Unavailable

33

BAND, RIM (1K8)

94327-14076-00

Unavailable

34

RIM 1.40X14

94414-14077-00

Unavailable

35

SPOKE SET, REAR

367-25304-00-00

Unavailable

35

SPOKE SET, INNER 2

(367-25396-90-00)

Unavailable

35

SPOKE SET, OUTER 2

367-25397-90-00

Unavailable

36

SPROCKET, DRIVEN (41T)

5J1-25441-20-00

Unavailable

37

BOLT 109254110000

90109-08319-00

Unavailable

38

WASHER

2AL-25412-00-00

Unavailable

39

NUT, HEXAGON (509)

90170-08158-00

Unavailable

39

. NUT

95380-08700-00

Unavailable

40

420-106L

94580-52106-00

Unavailable

41

JOINT, CHAIN (29A)

94680-52001-00

Unavailable

42

PIN, COTTER

91490-30030-00

Unavailable
