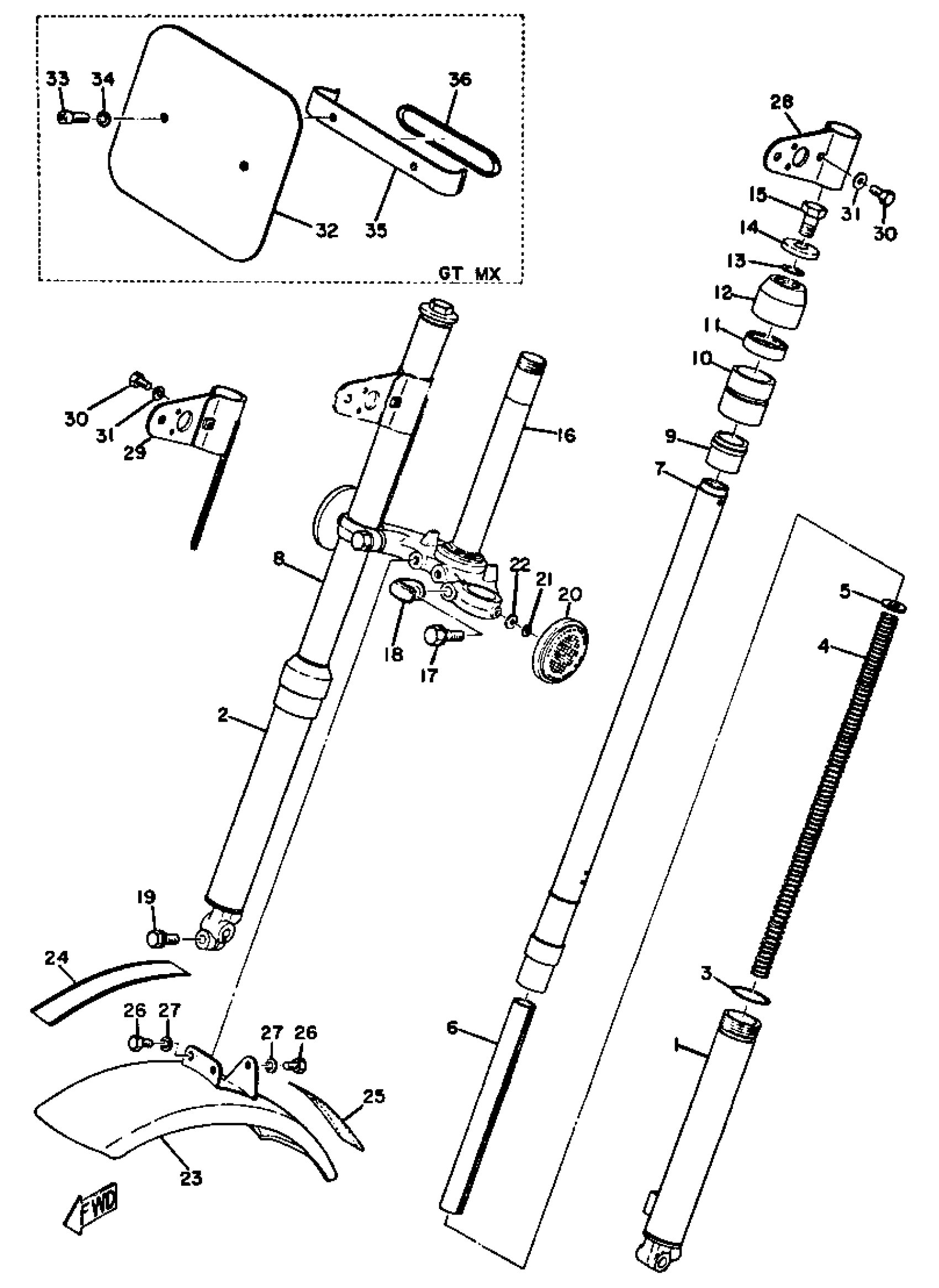

Yamaha GTMX (GTMX) 1973 FRONT FORK - FRONT FENDER Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(367-23101-61-35)

Unavailable

1

TUBE, OUTER 1

(374-23126-00-35)

Unavailable

2

TUBE, OUTER 2

(374-23136-00-35)

Unavailable

3

O-RING

207-23147-00-00

$11.99

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

SPRING, FRONT FORK

367-23141-60-00

Unavailable

4

SPRING, FRONT FORK

(367-23141-61-00)

Unavailable

5

WASHER, SPRING UPR

(290-23149-00-00)

Unavailable

5

WASHER, SPRING UPR

(290-23149-00-00)

Unavailable

6

SPACER, OIL LOCK

(367-23166-60-00)

Unavailable

6

SPACER, OIL LOCK

(367-23166-61-00)

Unavailable

7

. TUBE, INNER 1

439-23124-00-00

Unavailable

8

TUBE,INNER 2

439-23134-00-00

Unavailable

8

TUBE, INNER 2

(367-23134-61-00)

Unavailable

9

TUBE, INNER 1

(109-23124-00-00)

Unavailable

10

. OUTER NUT

290-23150-01-00

Unavailable

11

OIL SEAL

109-23145-01-00

Unavailable

12

SEAL, DUST

290-23144-00-00

Unavailable

13

GASKET

307-23114-00-00

Unavailable

14

WASHER, CAP

207-23112-00-00

Unavailable

15

BOLT, CAP

205-23111-40-00

Unavailable

15

. BOLT, CAP

395-23111-00-00

Unavailable

16

. UNDER BRACKET

367-23340-60-33

Unavailable

17

BOLT 1

122-23346-02-00

Unavailable

18

. HOLDER, CABLE 1

260-23318-40-00

Unavailable

19

BOLT, WITH WASHER

(90119-08010-00)

Unavailable

20

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

21

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

22

. WASHER, PLAIN

92990-05200-00

Unavailable

23

FENDER, FRONT

(288-21510-01-26)

Unavailable

23

FENDER, FRONT

(288-21510-01-35)

Unavailable

23

FENDER, FRONT

(288-21510-01-63)

Unavailable

24

MOLD, FENDER

(367-21519-00-00)

Unavailable

24

MOLD, FENDER

(367-21519-20-00)

Unavailable

24

MOLD, FENDER

(368-21519-00-00)

Unavailable

25

MOLD, FENDER

(367-21519-10-00)

Unavailable

25

MOLD, FENDER

(367-21519-30-00)

Unavailable

25

MOLD, FENDER

(368-21519-10-00)

Unavailable

26

BOLT(3JP)

97017-06010-00

Unavailable

27

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

28

STAY, HEADLIGHT 1

(368-84118-00-00)

Unavailable

29

STAY, HEADLIGHT 2

(368-84119-00-00)

Unavailable

31

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

32

. PLATE, NUMBER

288-23485-00-00

Unavailable

33

SCREW PAN HEAD

98580-06010-00

Unavailable

34

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

35

. STAY, PLATE

288-23486-00-00

Unavailable

36

. BAND

288-23489-00-00

Unavailable
