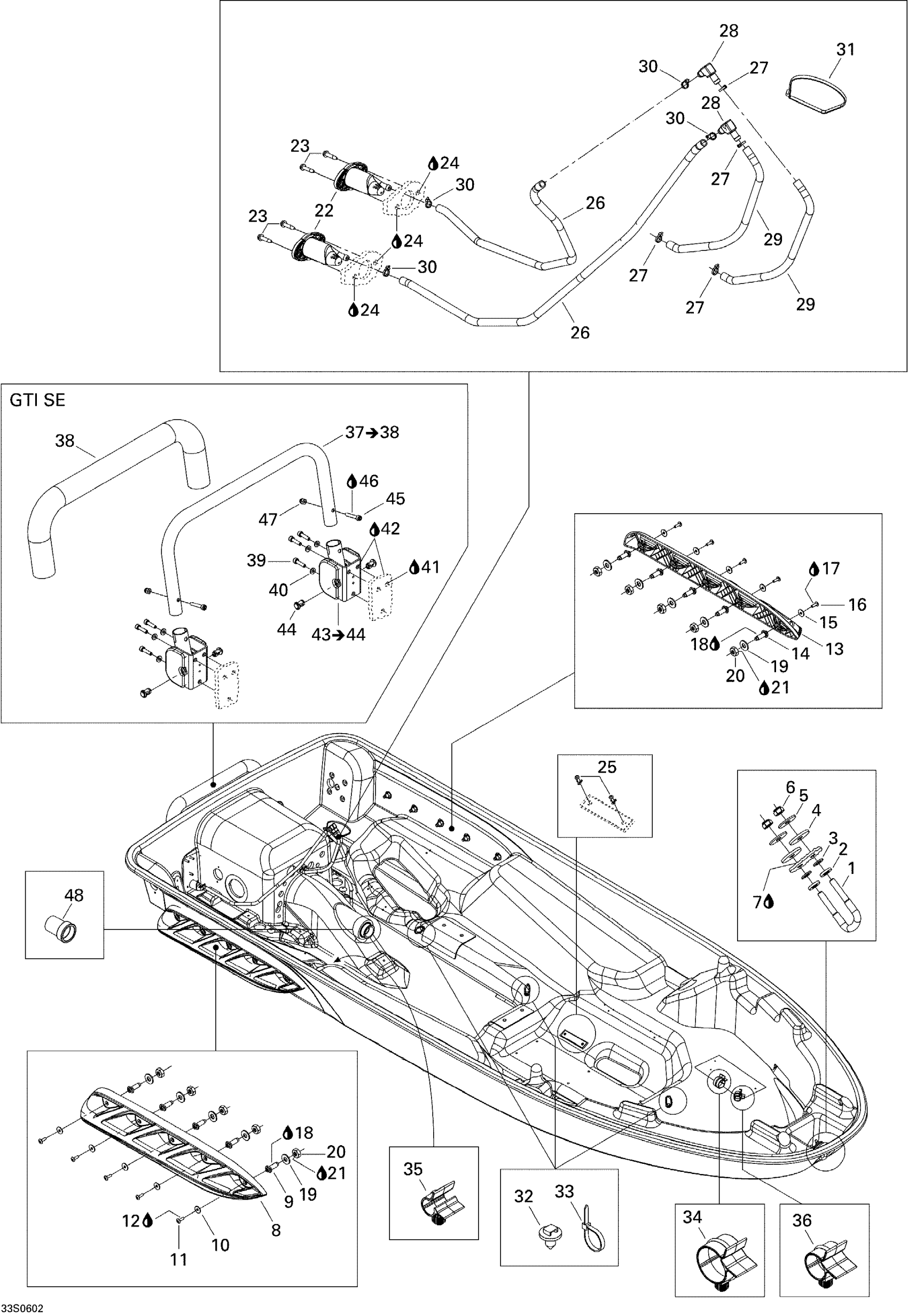

Sea-doo GTI SE, 2006 Hull GTI SE Diagram

#

Description
Price

1

U-Clamp

292000933

$32.47

2

Flat Washer M8.5 x 18

293050001

$1.29

3

Flat Washer 8 mm, Nylon

234081100

$1.00

4

Rubber Washer

293830037

$2.75

5

Flat Washer 8 mm, Stainless

250200175

$1.29

6

Hex. Elastic Nut M8 Brass

232581200

$1.29

7

Silicone Sealant 51388, 300 ml

296000309

$35.72

8

RH Sponson

292001878

$72.77

9

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

10

Flat Washer M6.6 X 22

250200022

$1.87

11

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$2.90

12

Loctite 243, 10 ml

293800060

$20.77

13

LH Sponson

292001877

$72.77

14

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

15

Flat Washer M6.6 X 22

250200022

$1.87

16

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$2.90

17

Loctite 243, 10 ml

293800060

$20.77

18

Silicone Sealant 51388, 300 ml

296000309

$35.72

19

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

20

NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership

250100078

Unavailable

21

Loctite 243, 10 ml

293800060

$20.77

22

Drain Plug

292001252

$28.57

23

Hex. Screw 10-14 X 7/8”

211000023

$2.91

24

Silicone Sealant 51388, 300 ml

296000309

$35.72

25

Avdel Rivet 3/16"

293150037

$0.47

26

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

27

Tie Wrap 94 mm | 4X4

293750001

$0.83

28

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

29

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

30

Tie Wrap 94 mm | 4X4

293750001

$0.83

31

Tie Wrap 368 mm

293750008

$0.85

32

Mount Dart

293730040

$0.86

33

Tie-Rap 180 mm

414115200

$0.09

34

Retainer

275500590

$7.18

35

Hose Retainer

275500528

Unavailable

36

Cable Retainer

275500527

$2.75

37

LADDER TUBE ASS'Y - Call your local BRP dealership

292001038

Unavailable

38

Protective Sleeve

292001067

Unavailable

39

Socket Head Screw M6 X 25, Scotch Grip

250000076

$1.65

40

Stainless Flat Washer M6

234061600

$0.25

41

Silicone Sealant 51388, 300 ml

296000309

$35.72

42

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

43

STAIR SUPPORT - Call your local BRP dealership | Includes 39 to 40

292001115

Unavailable

44

Tuflok Plastic Rivet

293150230

$1.21

45

Socket Head Screw M6 X 35

205063560

$1.85

46

Loctite 243, 10 ml

293800060

$20.77

47

Nut M6 | Model-Australie, Brezil, Europe

232361600

$3.60

48

HULL INSERT, 41 MM - Call your local BRP dealership

292000975

Unavailable
