Description

Price

1

Impeller Housing Ass'y | Includes 1 to 5

267000269

Unavailable

2

Wear Ring

267000419

$84.99

3

Square Nut M8

211100033

$17.99

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

7

Flat Washer M5, Stainless

234051600

$0.77

8

Neoprene Seal

293200087

$12.63

9

Not Available As Spare Parts

XXX

Unavailable

10

Water Outlet

271000785

$3.80

11

Not Available As Spare Parts

XXX

Unavailable

12

Impeller Shaft

267000054

$116.49

13

Angled Bearing This part replaces 267000030.

267000900

$80.99

14

O-Ring

505070315

$2.85

15

Shaft Sleeve

267000318

$134.99

16

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

17

O-Ring

293300090

$7.20

18

Seal

271002071

$33.99

19

Circlip

293370038

$8.79

20

Spacer

271001393

$8.59

21

Oil Seal

293200089

$19.99

22

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

23

Impeller Ass'y | Starboard This part replaces 267000336.

267000966

$391.99

24

Guard

271002225

$11.99

25

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

26

Synthetic Grease, 400 G

293550010

Unavailable

27

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

28

O-Ring

293300086

$3.59

29

Impeller Cover

267000262

$21.99

30

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

31

Stainless Flat Washer M6

234061600

$0.33

32

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

33

VENTURI - Call your local BRP dealership | GTS PRO

267000289

Unavailable

34

Siphon Tube

271001133

$10.99

35

O-Ring

293300013

$8.18

36

Hex. Screw M8 X 50, Scotch Grip

207285060

$2.11

37

Not Available As Spare Parts

XXX

Unavailable

38

Stainless, Flat Washer 8 mm

234081600

$0.55

39

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 267000140.

267000552

Unavailable

40

Venturi Bushing

293900001

$7.62

41

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

42

Flat Washer M8.5 x 18

293050001

$3.07

43

Sleeve

271001816

$14.99

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

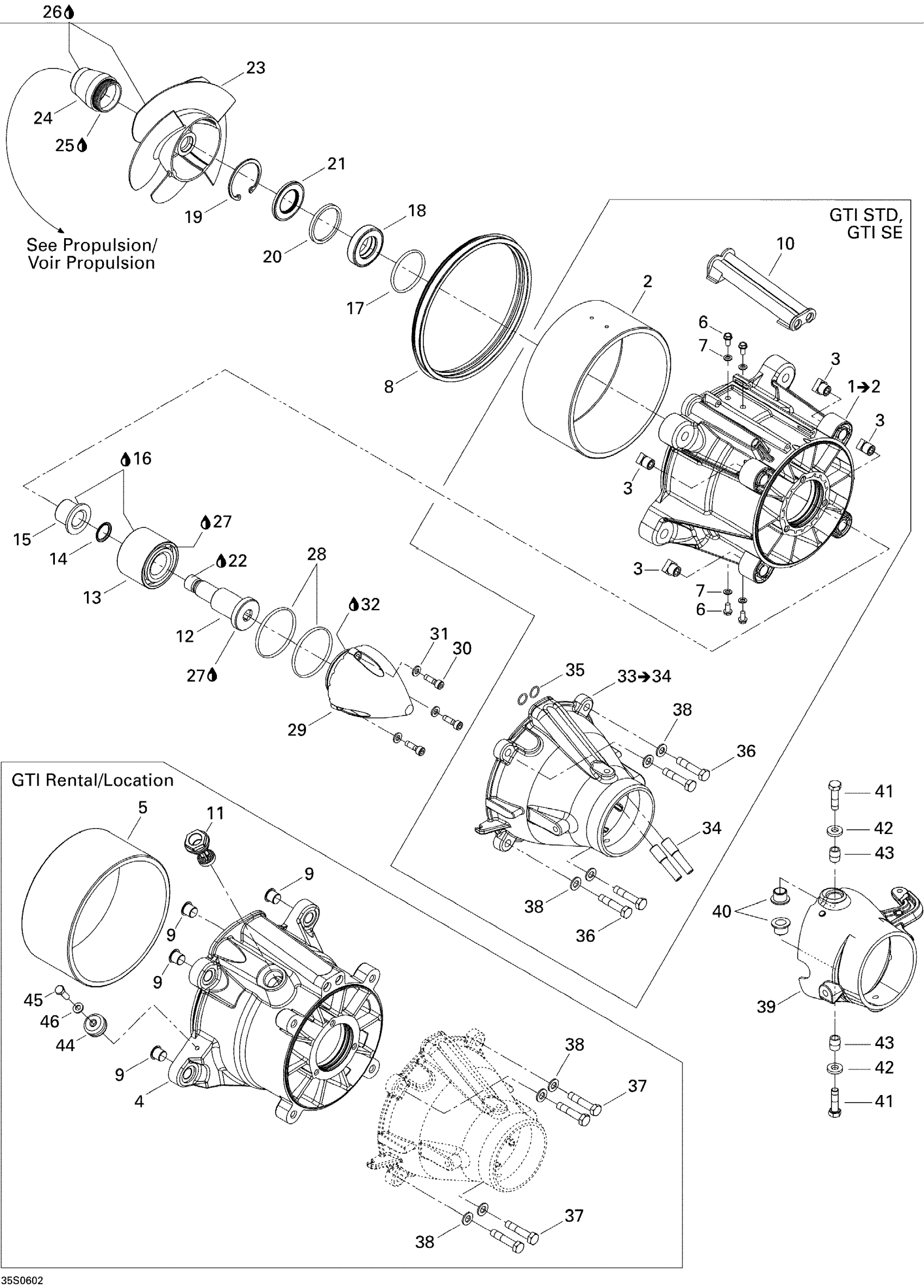

Sea-doo GTI SE, 2006 Pump GTI STD, GTI SE Diagram

Impeller Housing Ass'y | Includes 1 to 5

Wear Ring

Square Nut M8

Not Available As Spare Parts

Not Available As Spare Parts

Hex. Plastite Screw #10 X 3/8"

Flat Washer M5, Stainless

Neoprene Seal

Not Available As Spare Parts

Water Outlet

Not Available As Spare Parts

Impeller Shaft

Angled Bearing This part replaces 267000030.

O-Ring

Shaft Sleeve

Jet Pump Bearing Grease, 110 G

O-Ring

Seal

Circlip

Spacer

Oil Seal

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Impeller Ass'y | Starboard This part replaces 267000336.

Guard

Était Was 293800050 Loctite 577, 250 ml

Synthetic Grease, 400 G

Jet Pump Bearing Grease, 110 G

O-Ring

Impeller Cover

Socket Head Screw M6 X 20, Scotch Grip

Stainless Flat Washer M6

Jet Pump Bearing Grease, 110 G

VENTURI - Call your local BRP dealership | GTS PRO

Siphon Tube

O-Ring

Hex. Screw M8 X 50, Scotch Grip

Not Available As Spare Parts

Stainless, Flat Washer 8 mm

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 267000140.

Venturi Bushing

Hex. Screw M8 X 30, Scotch Grip

Flat Washer M8.5 x 18

Sleeve

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
