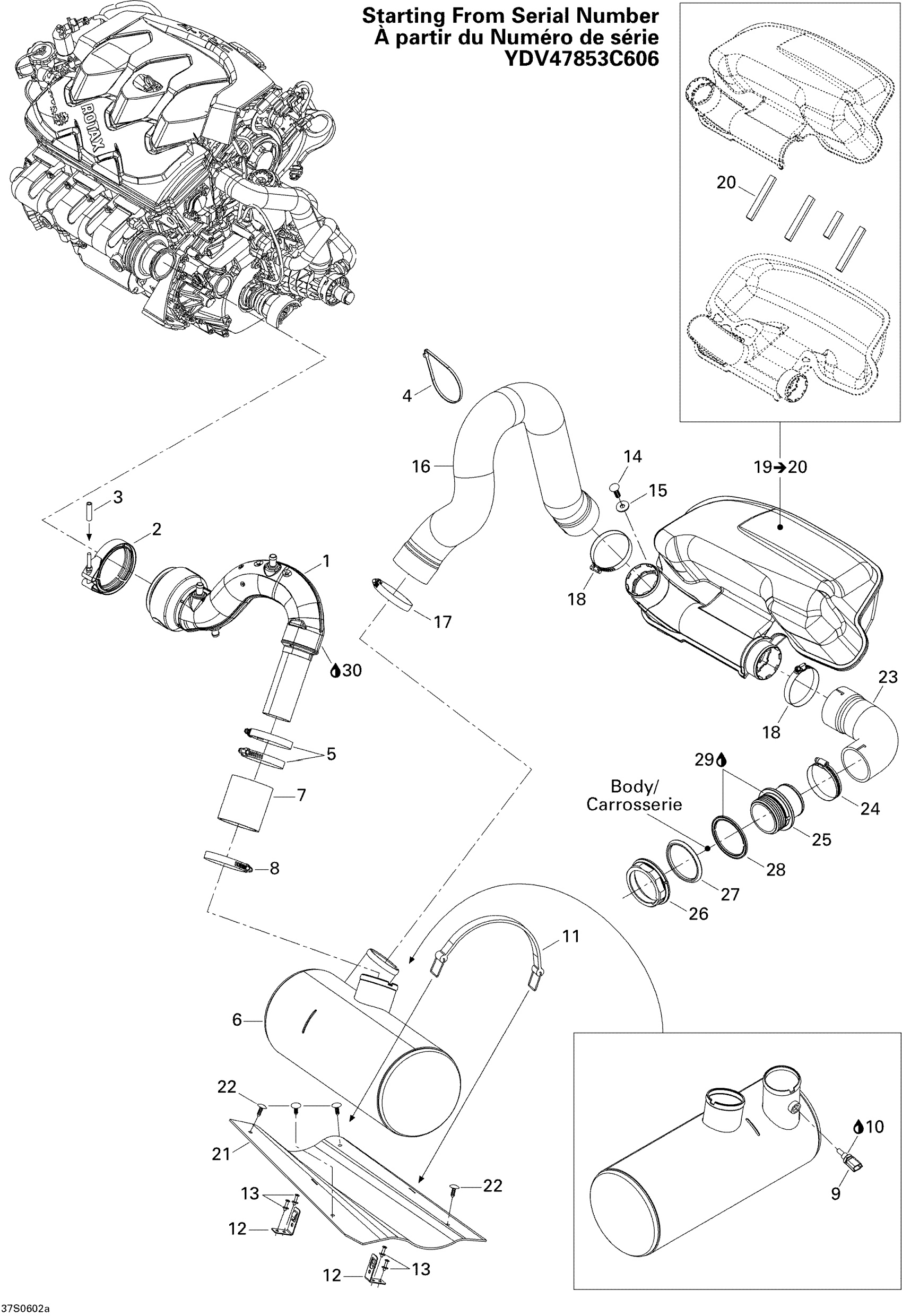

Sea-doo GTI SE, 2006 Exhaust System 2 Diagram

#

Description
Price

1

EXHAUST PIPE - Call your local BRP dealership

274001030

Unavailable

2

Exhaust Clamp This part replaces 274000959.

274001472

$52.21

3

Polyurethane Hose 10000Mm Long

219704410

$52.96

4

Tie Wrap 368 mm

293750008

$0.97

5

Tridon Clamp

293650179

$10.12

6

MUFFLER_EXHAUST - Call your local BRP dealership

274001095

Unavailable

7

Exhaust Hose

274001302

$32.81

8

Tridon Clamp

293650179

$10.12

9

Temperature Sensor

278002895

$36.54

10

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

11

Fuel Tank Strap

293850036

$15.64

12

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

13

Pop Rivet 3/16"

293150043

$1.85

14

Dart, Black

293730004

Unavailable

15

Flat Washer 8 mm, Stainless

234082600

$2.27

16

Front Exhaust Hose This part replaces 274001424.

274001708

$83.55

17

Tridon Clamp

293650179

$10.12

18

Tridon Clamp

293650179

$10.12

19

Resonator

274001366

$156.69

20

Neoprene Seal (1PAC=3M)

219704364

$26.09

21

Rubber Pad

293830117

Unavailable

22

Black, Dart

293730011

$0.91

23

REAR EXHAUST HOSE - Call your local BRP dealership

274001428

Unavailable

24

Tridon Clamp

293650064

$7.57

25

Exhaust Hose, Outlet

274001391

$26.84

26

Nut 72 mm

274000224

$13.97

27

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

28

GASKET - Call your local BRP dealership

293250041

Unavailable

29

Silicone Sealant 51388, 300 ml

296000309

$36.99

30

Sealant, Loctite, 80 ml | DS 650

293800090

$23.85
