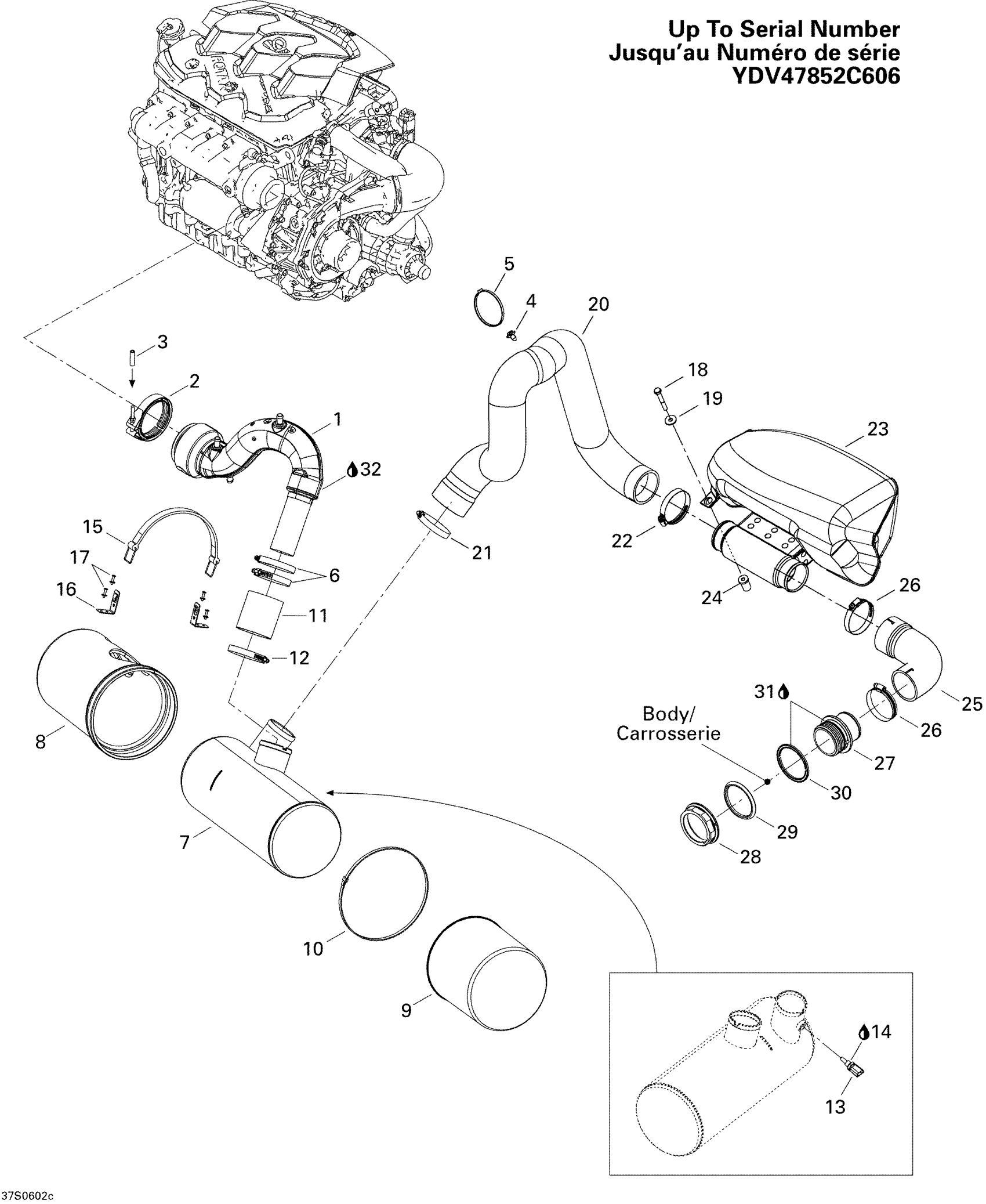

Sea-doo GTI SE, 2006 Exhaust System 1 Diagram

#

Description
Price

1

EXHAUST PIPE - Call your local BRP dealership

274001030

Unavailable

2

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

3

Polyurethane Hose 10000Mm Long

219704410

$56.99

4

Mount Dart

293730040

$1.04

5

Tie Wrap 368 mm

293750008

$1.04

6

Tridon Clamp

293650179

$11.49

7

MUFFLER_EXHAUST - Call your local BRP dealership

274001095

Unavailable

8

Front Muffler Cover

274001008

Unavailable

9

REAR MUFFLER COVER - Call your local BRP dealership

274000984

Unavailable

10

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

11

Exhaust Hose

274001302

$35.99

12

Tridon Clamp

293650179

$11.49

13

Temperature Sensor

278002895

$39.99

14

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

15

Fuel Tank Strap

293850036

$18.99

16

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

17

Pop Rivet 3/16"

293150043

$2.09

18

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

19

Flat Washer 8 mm, Stainless

234082600

$2.43

20

Exhaust Hose

274001101

Unavailable

21

Tridon Clamp

293650064

$8.29

22

Tridon Clamp

293650179

$11.49

23

RH Resonator

274001045

$217.49

24

BUSHING - Call your local BRP dealership

278001940

Unavailable

25

REAR EXHAUST HOSE - Call your local BRP dealership

274001428

Unavailable

26

Tridon Clamp

293650064

$8.29

27

Exhaust Hose, Outlet

274001391

$29.49

28

Nut 72 mm

274000224

$16.34

29

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

30

GASKET - Call your local BRP dealership

293250041

Unavailable

31

Silicone Sealant 51388, 300 ml

296000309

$36.99

32

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99
