01- Cooling System

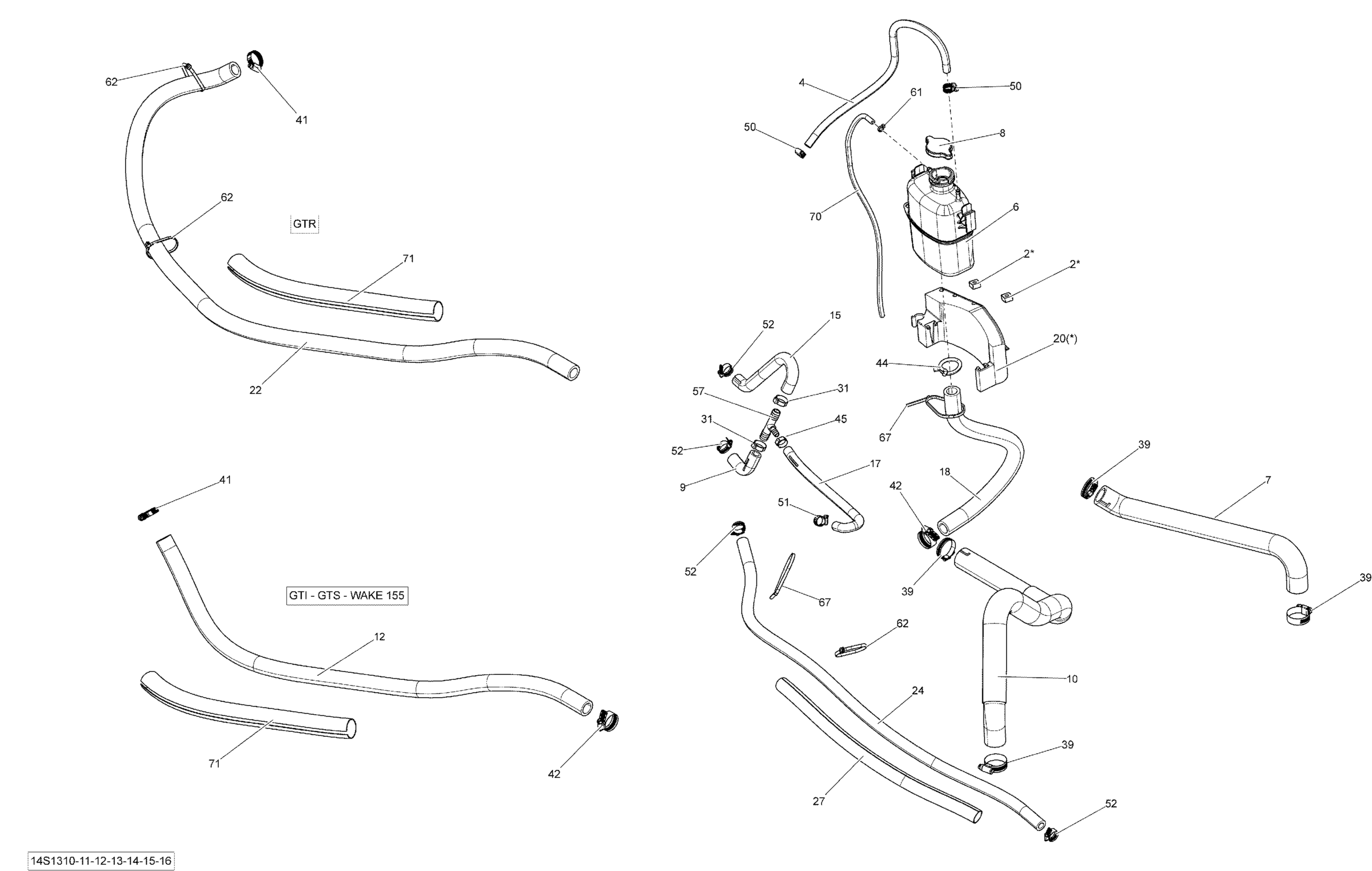

Sea-doo GTI SE 155, 2013 01- Cooling System Diagram
#
Description
Price
2
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
4
HOSE 1/4 - Call your local BRP dealership
204300184
Unavailable
6
Coolant Tank
276000086
$109.99
7
RH Radiator Hose
276000248
$58.99
8
Pressure Cap | Includes 720 to 720a
276000100
$25.99
9
Hose, Bypass Lower | With Catalyst This part replaces 276000137.
276000455
$19.49
10
Radiator Hose This part replaces 276000249.
276000492
$56.99
12
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
15
Hose, Bypass Upper | Without Catalyst This part replaces 276000244.
276000484
$19.49
17
Formed Hose | Without Catalyst
276000246
$19.49
18
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
20
SUPPORT ASS'Y - Call your local BRP dealership
291003082
Unavailable
22
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
24
Was 276000001 Hose 12.5 mm
219704394
$51.99
27
Tubing 25 MM 1000MM Long
219704402
$15.99
31
Oetiker Clamp
293650012
$7.49
39
Tridon Gear Clamp
293650185
$13.99
41
Tridon Gear Clamp
293650051
$4.19
42
Tridon Gear Clamp
293650019
$5.82
44
Spring Clamp
293650115
$3.09
45
Oetiker Clamp | Europe
293650030
$5.19
50
Tridon Gear Clamp
293650170
$1.99
51
Tridon Gear Clamp
293650171
$3.09
52
Tridon Gear Clamp
293650172
$3.09
57
T-Fitting
293710116
$17.62
61
Tie Wrap 94 mm | 4X4
293750001
$1.03
62
Tie Wrap 368 mm
293750008
$1.04
67
Tie-Rap 180 mm
414115200
$0.11
70
Polyurethane Hose 10000Mm Long
219704410
$56.99
71
Tubing 25 MM 1000MM Long
219704402
$15.99
