09- Hull

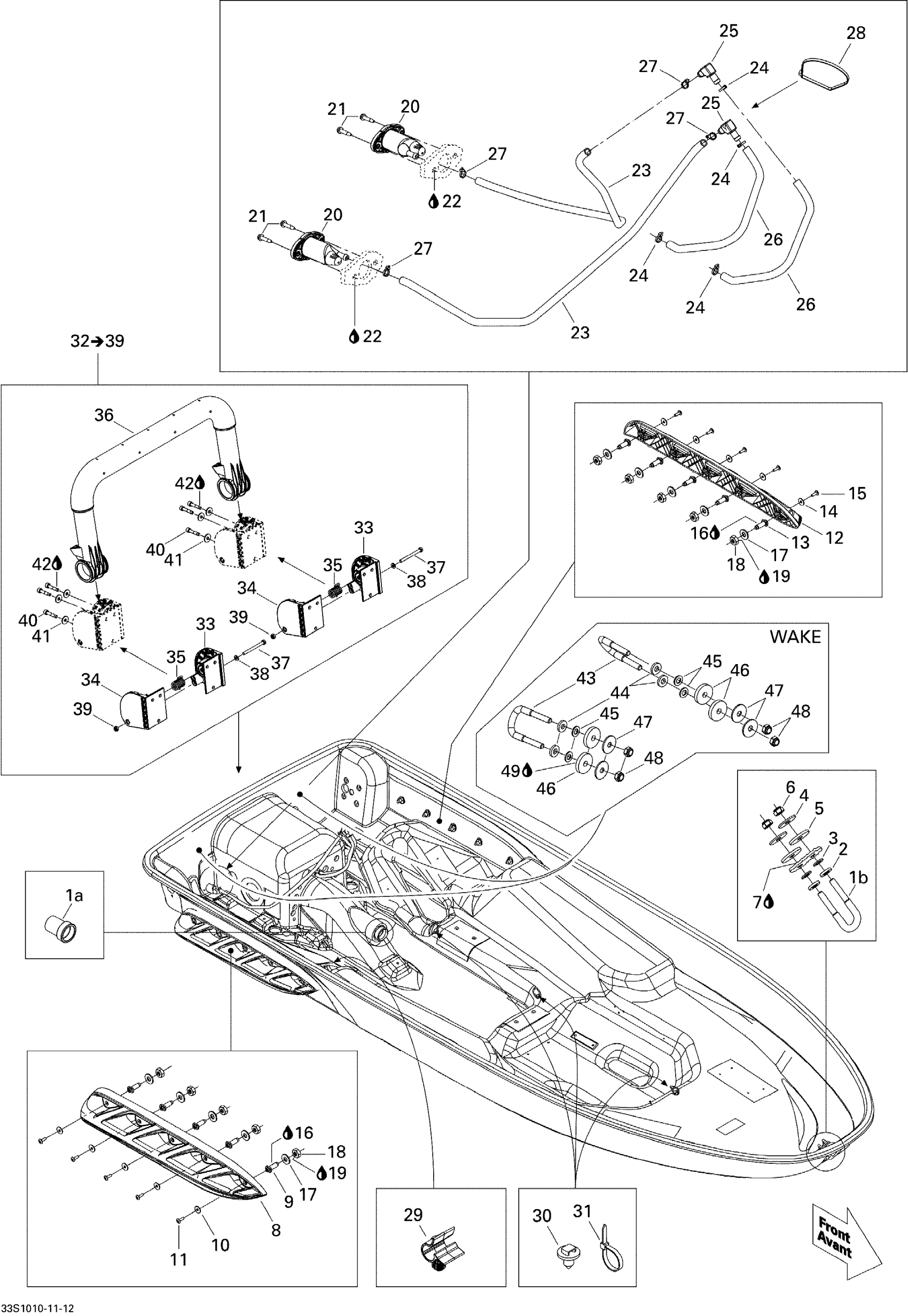

Sea-doo GTI SE 155, 2010 09- Hull Diagram
#
1a
HULL INSERT, 41 MM - Call your local BRP dealership
292000975
Unavailable
1b
U-Clamp
292000933
$59.49
2
Flat Washer M8.5 x 18
293050001
$3.07
3
Flat Washer 8 mm, Nylon
234081100
$1.39
4
Flat Washer 8 mm, Stainless
250200175
$3.06
5
Rubber Washer
293830037
$2.68
6
Hex. Elastic Nut M8 Brass
232581200
$2.22
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
RH Sponson
292001878
$93.99
9
SPONSON ADAPTER - Call your local BRP dealership
292001046
Unavailable
10
Flat Washer M6.6 X 22
250200022
$2.72
11
TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership
250000299
Unavailable
12
LH Sponson
292001877
$93.99
13
SPONSON ADAPTER - Call your local BRP dealership
292001046
Unavailable
14
Flat Washer M6.6 X 22
250200022
$2.72
15
TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership
250000299
Unavailable
16
Silicone Sealant 51388, 300 ml
296000309
$36.99
17
FLAT WASHER M12 - Call your local BRP dealership
250200053
Unavailable
18
NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership
250100078
Unavailable
19
Loctite 243, 10 ml
293800060
$21.49
20
Drain Plug
292001252
$36.99
21
Hex. Screw 10-14 X 7/8”
211000023
$3.59
22
Silicone Sealant 51388, 300 ml
296000309
$36.99
23
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
24
Tie Wrap 94 mm | 4X4
293750001
$1.03
25
ELBOW FITTING 90 - Call your local BRP dealership
293710117
Unavailable
26
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
27
Tie Wrap 94 mm | 4X4
293750001
$1.03
28
Tie Wrap 368 mm
293750008
$1.04
29
Hose Retainer
275500528
Unavailable
30
Mount Dart
293730040
$1.04
31
Tie-Rap 180 mm
414115200
$0.11
31
Tie Wrap 368 mm
293750008
$1.04
32
Not Available As Spare Part - Friction Washer
Unavailable
33
A Section Support
292001509
$59.99
34
B Section Support
292001510
$59.99
35
Spring
292001259
$27.99
36
Overmolded Bar
292001204
$159.99
37
Hex. Screw M6 x 65 | Produced Before February 01 2010
207066560
$2.11
38
Stainless Flat Washer M6
234061600
$0.33
39
Hex. Elastic Stop Nut M6
232561600
$1.15
40
Socket Screw M6 X 30, Scotch Grip
250000386
$1.90
41
Flat Washer M6, Stainless
234062600
$0.77
42
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
43
Not Available As Spare Parts
XXX
Unavailable
44
Not Available As Spare Parts
XXX
Unavailable
45
Not Available As Spare Parts
XXX
Unavailable
46
Not Available As Spare Parts
XXX
Unavailable
47
Not Available As Spare Parts
XXX
Unavailable
48
Not Available As Spare Parts
XXX
Unavailable
49
Not Available As Spare Parts
XXX
Unavailable
