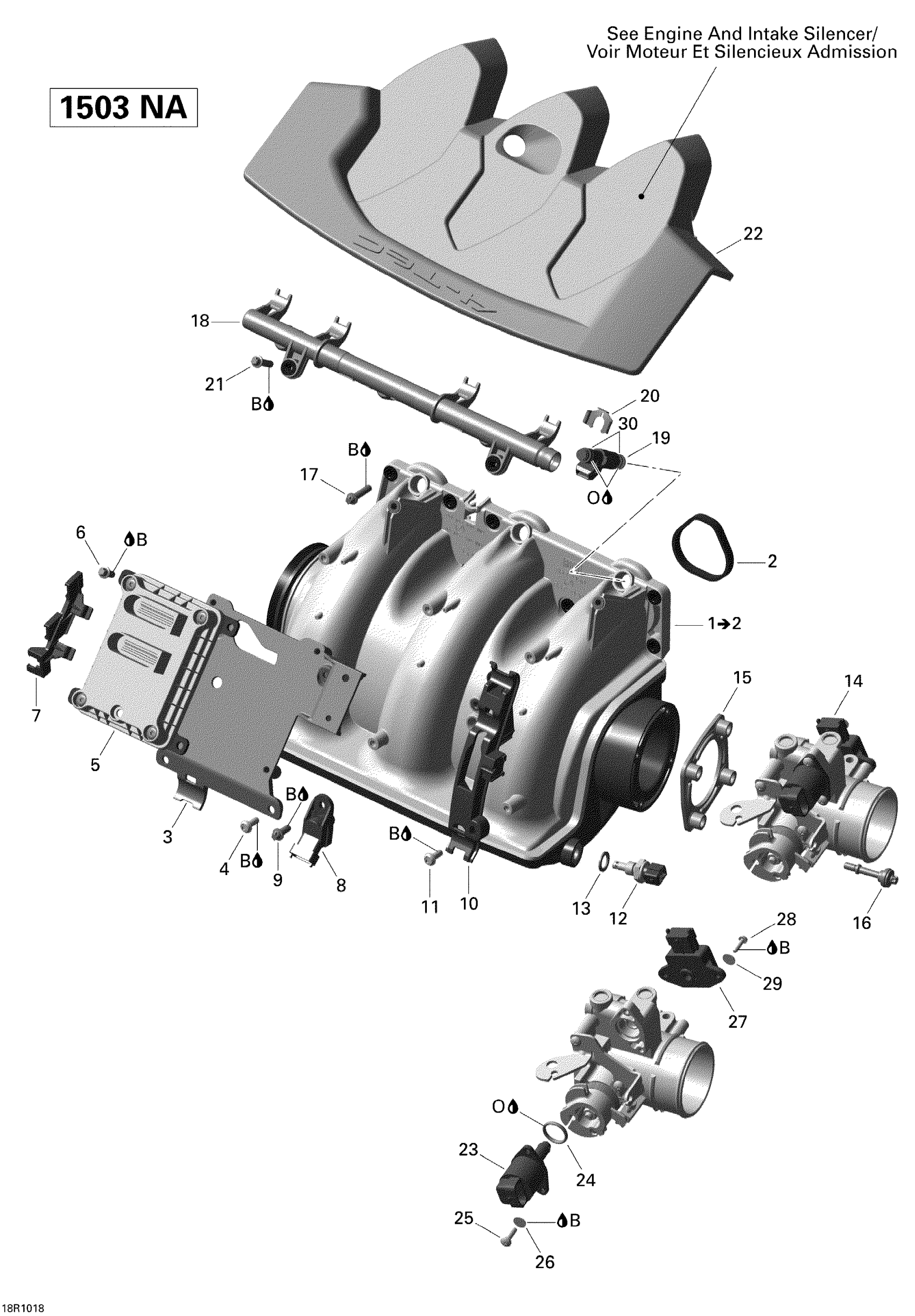

Sea-doo GTI SE 155, 2010 Air Intake Manifold And Throttle Body V1 Diagram

#

Description
Price

1

Air Intake Manifold | Includes 1 to 2

420867921

$418.63

2

Gasket | Included in gasket kit

420950740

$4.15

3

BASE PLATE - Call your local BRP dealership

420851521

Unavailable

4

Torx Flange Screw M6 X 16

420641048

$2.82

5

ELECTRONIC BOX - Call your local BRP dealership

420665783

Unavailable

6

Torx Flange Screw M6 X 16

420641588

$2.00

7

CONNECTOR BRACKET - Call your local BRP dealership

420660402

Unavailable

8

Pressure Sensor

270600040

$181.31

9

Torx Flange Screw M6 X 16

420641048

$2.82

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

$2.00

12

Temperature Sensor This part replaces 420222423.

420222421

$36.54

13

Aluminum Sealing Ring

420250016

$5.06

14

Throttle Body

420892452

$858.93

15

Rubber Gasket

420950792

$10.21

16

Allen Screw M6 x 30,5

420440561

$4.21

17

Torx Flange Screw M6 X 25

420641238

$3.07

18

FUEL RAIL ASS'Y - Call your local BRP dealership

420874394

Unavailable

19

INJECTOR - Call your local BRP dealership | Includes 19 to 20

420874430

Unavailable

20

Injector Clip

420853030

$2.82

21

Torx Flange Screw M6 X 25

420641238

$3.07

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Idle Air Control Valve

420665941

$169.37

24

O-Ring

420631780

$4.15

25

Binding Head Screw M5 X 16

420440911

$13.18

26

Snap Ring

420845710

$3.88

27

Position Sensor

420866120

$89.52

28

Phillips Screw M4 X 16

208641660

$0.85

29

Flat Washer 4 mm, Stainless

234042600

$1.06

30

O-Ring

420631220

$13.18

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable
