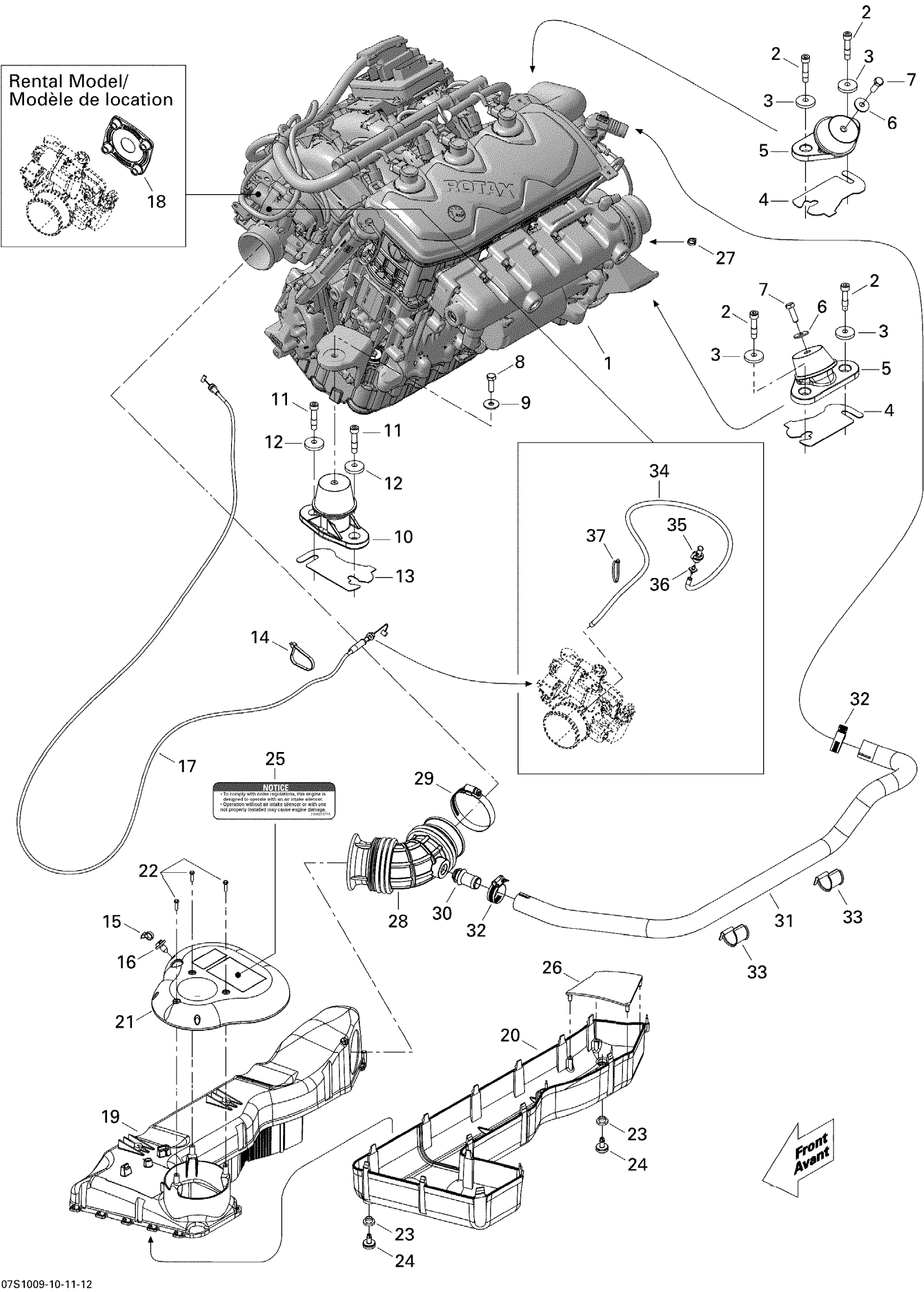

Sea-doo GTI SE 155, 2010 Engine Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150318.

420150392

$4.00

56

Engine Long Block This part replaces 420150318.

420150392

$4.00

2

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

3

Cone Washer

250200018

$5.61

4

Shim 1.3 mm

270000762

$12.99

5

Engine Support Ass'y

270001081

$109.99

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Engine Support Ass'y

270001096

$97.99

11

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

12

Cone Washer

250200018

$5.61

13

Shim 1.3 mm

270000762

$12.99

14

Tie-Rap 180 mm

414115200

$0.11

15

Tie Wrap 142 mm

293750002

$1.25

16

Mount Dart

293730040

$1.04

17

THROTTLE CABLE - Call your local BRP dealership

277001170

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

AIR SILENCER UPPER - Call your local BRP dealership

273000244

Unavailable

20

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

21

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

22

Hex. Flange Screw K40 X 16

241141660

$1.48

23

GROMMET - Call your local BRP dealership

293720064

Unavailable

24

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

25

Air Silencer Notice Decal

219903177

Unavailable

26

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

27

Tie Wrap 142 mm

293750002

$1.25

28

INTAKE HOSE - Call your local BRP dealership

270000628

Unavailable

29

Tridon Clamp

293650179

$11.49

30

Breather Valve

273000234

$14.49

31

Formed Hose

270000949

$47.99

32

Tridon Gear Clamp

293650051

$4.19

33

Retainer

275500664

$14.75

34

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

35

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

36

CONNECTOR - Call your local BRP dealership

293710107

$1.09

37

Tie Wrap 142 mm

293750002

$1.25
