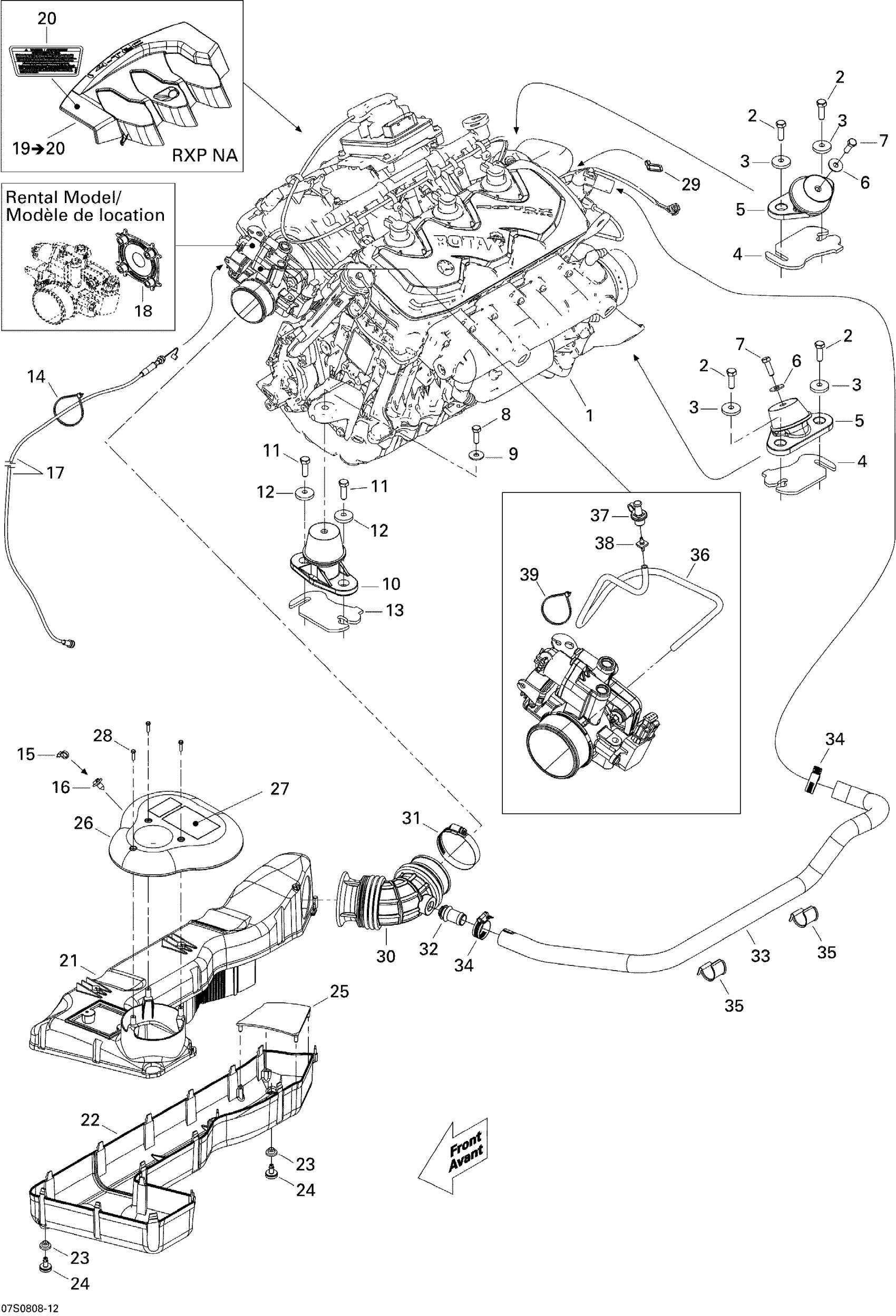

Sea-doo GTI SE 155, 2008 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block, 1503 NA

420150315

Unavailable

1

Engine Long Block This part replaces 420150318.

420150392

$3,799.99

55

Engine Long Block This part replaces 420150318.

420150392

$3,799.99

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.18

3

Cone Washer

250200018

$4.64

4

Shim 1.3 mm

270000762

$9.04

5

Engine Support Ass'y

270001081

$84.47

6

Flat Washer 8 mm, Stainless

234082600

$1.98

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

9

Flat Washer 8 mm, Stainless

234082600

$1.98

10

Engine Support Ass'y

270001096

$77.32

11

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.18

12

Cone Washer

250200018

$4.64

13

Shim 1.3 mm

270000762

$9.04

14

Tie-Rap 180 mm

414115200

$0.09

15

Tie Wrap 142 mm

293750002

$0.88

16

Mount Dart

293730040

$0.86

17

THROTTLE CABLE - Call your local BRP dealership

277001524

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

20

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

21

AIR SILENCER UPPER - Call your local BRP dealership

273000244

Unavailable

22

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

23

GROMMET - Call your local BRP dealership

293720064

Unavailable

24

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

25

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

26

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

27

Caution Decal, Air Silencer

219902673

Unavailable

28

Hex. Flange Screw K40 X 16

241141660

$1.25

29

Tie Wrap 142 mm

293750002

$0.88

30

INTAKE HOSE - Call your local BRP dealership

270000628

Unavailable

31

Tridon Clamp

293650179

$8.81

32

Breather Valve

273000234

$10.63

33

Formed Hose

270000949

$37.02

34

Tridon Gear Clamp

293650051

$3.61

35

Retainer

275500664

$10.91

36

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

37

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

38

CONNECTOR - Call your local BRP dealership

293710107

$0.93

39

Tie Wrap 142 mm

293750002

$0.88
