Description

Price

1

HEX SCREW M8 X 50 - Call your local BRP dealership

207185060

$1.60

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

4

Hex. Screw 10-14 X 7/8”

211000023

$3.34

6

Elastic Stop Nut M6, Brass

232561200

$4.03

7

Flat Washer 10 mm, Stainless

234000600

$1.22

8

Stainless Flat Washer M6

234061600

$0.28

9

Flat Washer 8 mm, Stainless

234082600

$2.27

13

Safety Nut (DESS Switch)

278002963

$3.12

22

Battery, 30 Amperes

278001882

$171.95

31

Cable-Starter

278003398

$57.43

33

Throttle Position Sensor

278002283

$104.99

46

LH Throttle Sensor

278002284

$108.18

95

O.T.A.S. Sensor Ass'y

278003009

$99.22

97

Battery Support

278003306

$17.13

99

Starter Relay

278003012

$40.27

110

Battery Ground Cable

278003270

$38.03

113

Switch RH Mode/Set

278002602

$115.64

123

Diagnostic Connector

278002704

$17.88

127

LCD Gauge | Model GTI LTD 155

278003378

$1,064.15

145

Switch LH Sport/Eco

278002768

$76.84

161

Main Harness Ass'y

278003256

$699.22

168

Support

278003048

$20.12

169

O.T.A.S Actuator

278003537

$38.03

171

Safety Lanyard Ass'y, RFID

278003400

$67.13

171

Safety Lanyard Ass'y, Learning / RFID

278003401

$67.13

180

Steering Harness Ass'y | GTI, GIT SE, GTR

278003263

$282.06

191

Tie Wrap 368 mm

293750008

$0.97

196

Battery Bolt Kit

250000282

$3.39

201

Tie-Rap 180 mm

414115200

$0.10

209

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

222

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

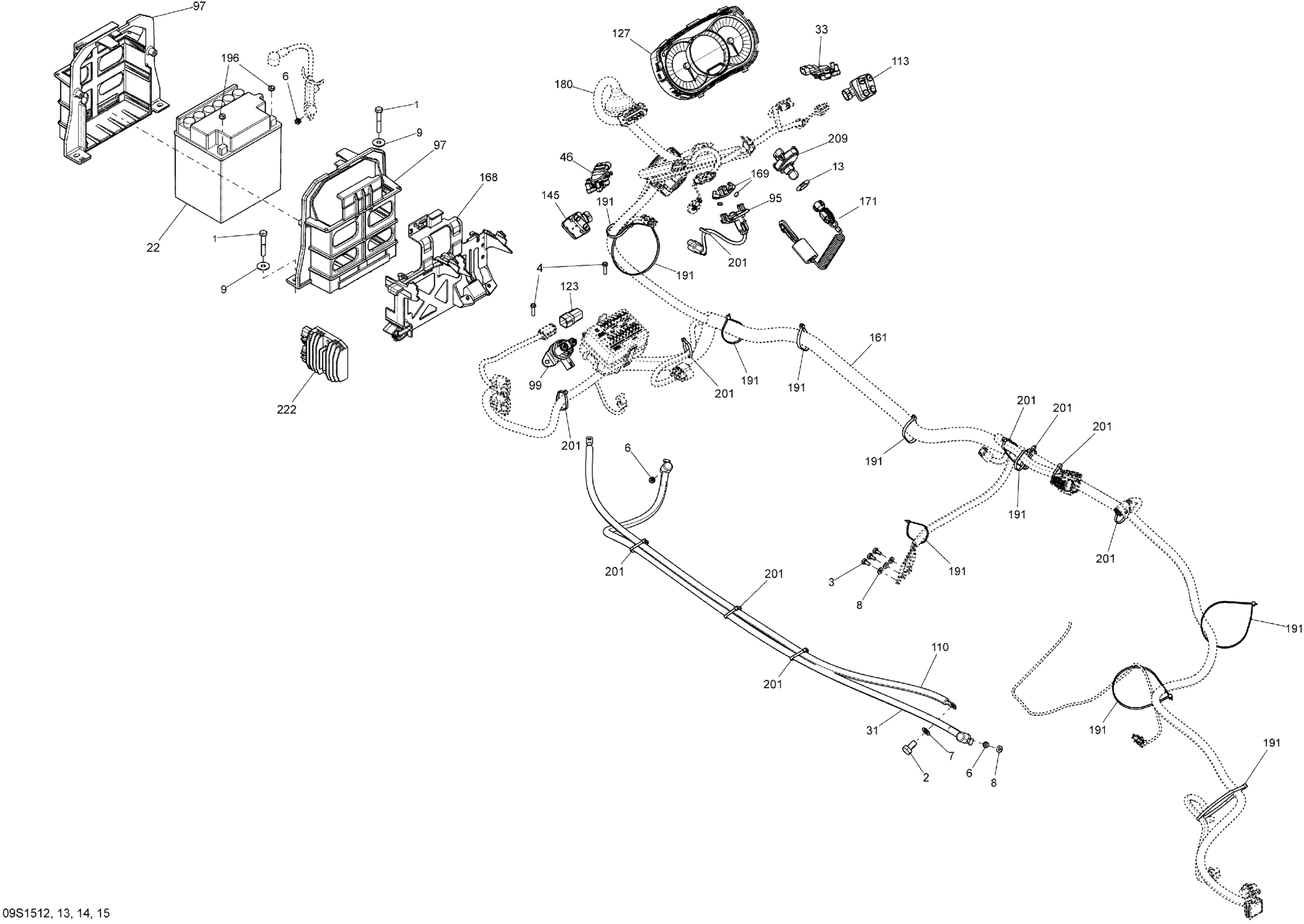

Sea-doo GTI SE 130, 2015 Electrical System _09S1514 Diagram
