10- Electrical Harness _13S1514a

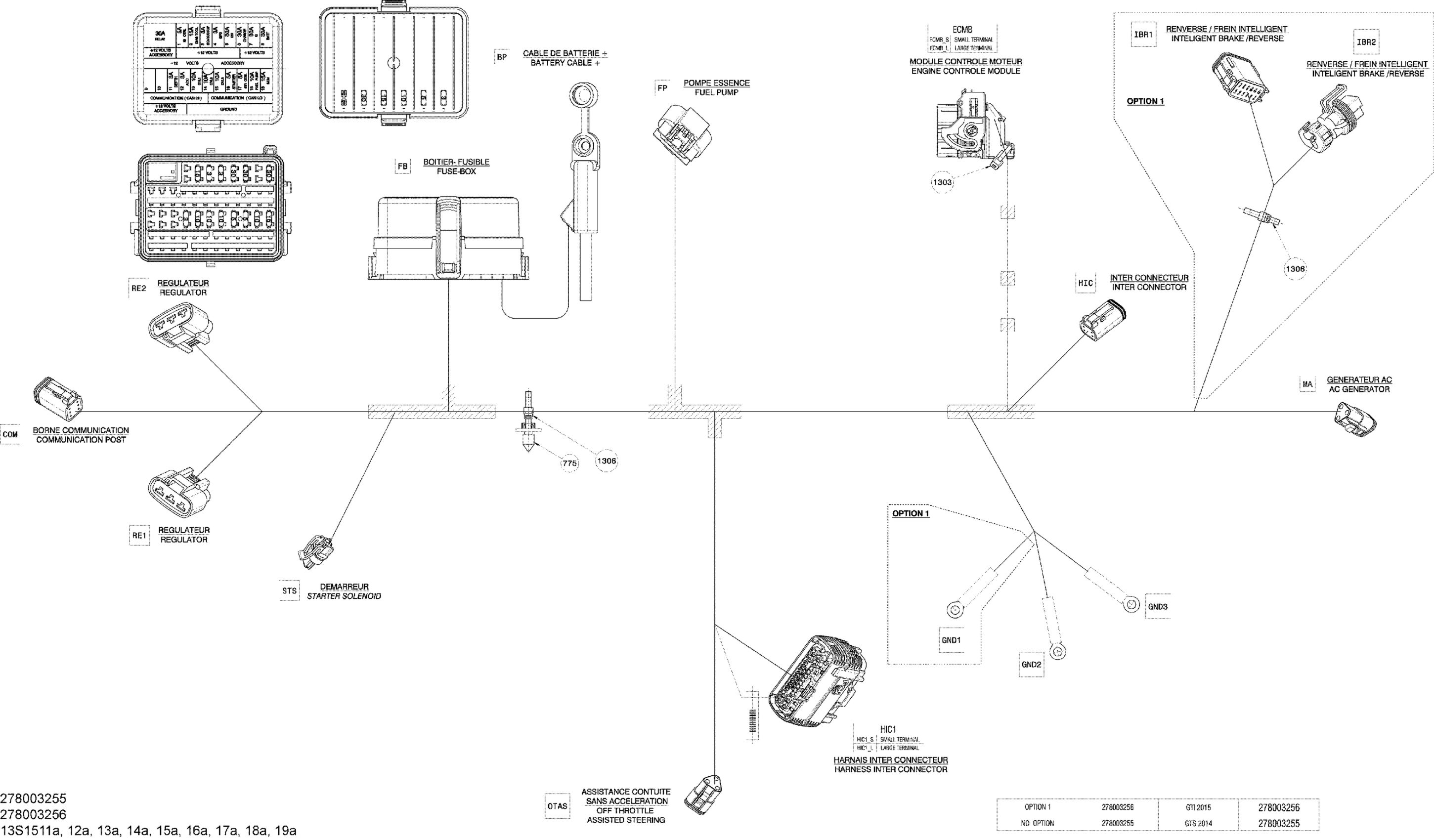

Sea-doo GTI SE 130, 2015 10- Electrical Harness _13S1514a Diagram
#
1
Main Harness Ass'y
278003256
$779.99
775
Not Available As Spare Part - Friction Washer
Unavailable
1306
Not Available As Spare Part - Friction Washer
Unavailable
BP
Battery Cable
278002815
$45.49
COM
Female Terminal
278000632
$2.09
COM
Female Terminal
278001665
$4.55
COM
Housing, 6 Circuits
278002896
$14.99
COM
Sealing Cap
293000052
$3.19
COM
Male Wedge, 6 Circuits
515175678
$5.39
COVER
Little Fuse, 5 Amperes
710000742
$8.79
COVER
Little Fuse, 10 Amperes
710000744
$8.79
COVER
Little Fuse, 15 Ampere
710000745
$8.49
COVER
Little Fuse, 30 Amperes
710000747
$8.49
COVER
Little Fuse, 3 AMP
710001008
$3.79
ECMB_L
Female Terminal
710001590
$2.09
ECMB_L
Plug
710001593
$2.21
ECMB_L
Female Terminal
710001727
$3.19
ECMB_S
Female Terminal Housing, 48 Circuits
710001588
$48.49
ECMB_S
Female Terminal
710001589
$2.21
ECMB_S
Cover, 48 positions
710001591
$12.18
ECMB_S
Plug
710001592
$2.21
FB
Wire Seal
278000218
$4.39
FB
Wire Seal
278001065
$7.69
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Female Terminal
278002578
$1.04
FB
Bus Bar
278002165
$8.79
FB
Relay 30 Amp
278003828
$13.99
FB
Fuse Cover This part replaces 278002529.
278002823
$14.83
FB
Seal Plug
278002880
$7.86
FB
Fuse Base Ass'y This part replaces 278002878.
278002946
$33.99
FB
Wire Seal
710000048
$7.69
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Female Terminal
710000890
$4.55
FB
Female Terminal
710000918
$7.69
FB
Little Fuse, 3 AMP
710001008
$3.79
FB
Little Fuse, 3 AMP
710001008
$3.79
FB
Little Fuse, 3 AMP
710001008
$3.79
FP
Male Housing, 4 Circuits
278002185
$7.90
FP
Wire Seal
278002186
$5.50
FP
Female Terminal
278002187
$6.39
GND1
Not Available As Spare Parts
XXX
Unavailable
GND2
Open Barrel Terminal
278001392
$4.79
GND3
Open Barrel Terminal
278001392
$4.79
HIC
Female Terminal
278000632
$2.09
HIC
MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
515175672
Unavailable
HIC
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
515175677
Unavailable
HIC1_L
Female Terminal
278002455
$3.79
HIC1_S
HOUSING - Call your local BRP dealership
278002451
Unavailable
HIC1_S
Female Terminal | Not Shown
278002453
$5.79
HIC1_S
Female Terminal | Not Shown
278002642
$3.79
IBR1
Not Available As Spare Parts
XXX
Unavailable
IBR1
Not Available As Spare Parts
XXX
Unavailable
IBR1
Not Available As Spare Parts
XXX
Unavailable
IBR1
Not Available As Spare Parts
XXX
Unavailable
IBR2
Not Available As Spare Parts
XXX
Unavailable
IBR2
Not Available As Spare Parts
XXX
Unavailable
IBR2
Not Available As Spare Parts
XXX
Unavailable
IBR2
Not Available As Spare Parts
XXX
Unavailable
IBR2
Not Available As Spare Parts
XXX
Unavailable
MA
FEMALE TERMINAL - Call your local BRP dealership
278001276
Unavailable
MA
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515175671
Unavailable
MA
Female Lock, 3 Circuits
515175676
$5.39
OTAS
Female Terminal
278001665
$4.55
OTAS
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
OTAS
Female Lock
409207200
$4.39
RE1
Female Terminal
710000877
$9.12
RE1
Housing, 3 Circuits
710000880
$21.99
RE1
Seal
710000881
$17.99
RE2
Female Terminal
710000877
$9.12
RE2
Female Housing, 3 Circuits
710000879
$25.99
RE2
Seal
710000881
$17.99
RE2
Cap
710000882
$11.49
STS
Female Housing, 2 Circuits
515177192
$9.12
STS
Wire Seal
710001163
$7.69
STS
Female Terminal
710001164
$8.89
