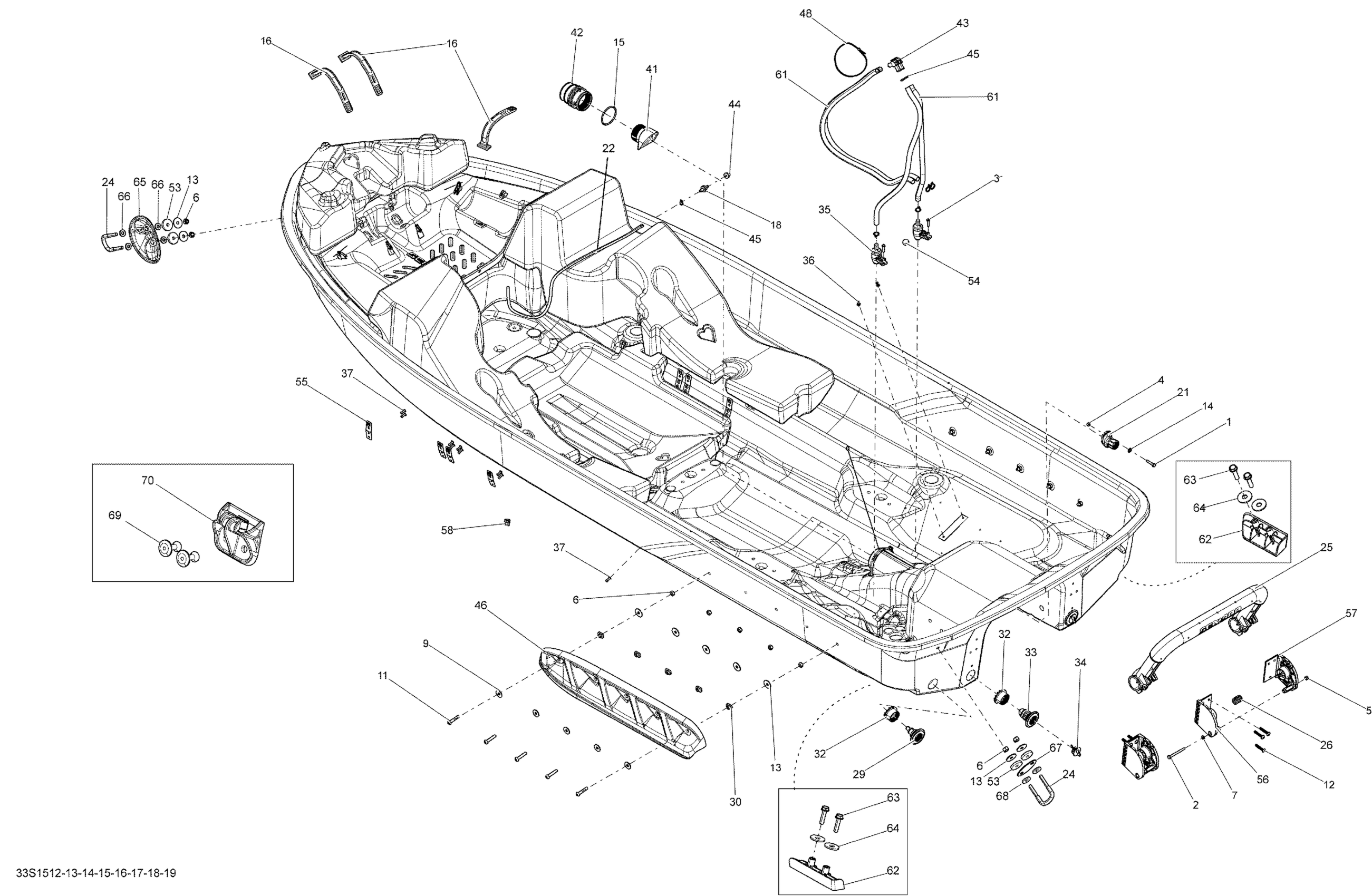

Sea-doo GTI SE 130, 2015 Hull ACMP_33S1514 Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063060

$1.89

2

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$2.11

3

Hex. Screw 10-14 X 7/8”

211000023

$3.59

4

Elastic Stop Nut M6, Brass

232561200

$4.23

5

Hex. Elastic Stop Nut M6

232561600

$1.15

6

Hex. Elastic Nut M8 Brass

232581200

$2.22

7

Stainless Flat Washer M6

234061600

$0.33

9

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Torx Screw M8 X 40, Stainless

250000452

$3.91

12

Torx Screw

250000468

$4.61

13

Flat Washer 8 mm, Stainless

250200175

$3.06

14

Sealing Washer

250200114

$4.44

15

O-Ring

267000477

$6.67

16

Strap

269502417

$17.69

18

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

21

Cable Adaptor Ass'y

277001881

$19.99

22

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

24

U-Clamp

292000933

$59.49

25

Overmolded Bar

292001204

$159.99

26

Spring

292001259

$27.99

29

Drain Neck Ass'y

292001317

$27.99

30

Spacer Sponson

292001349

$10.99

32

Bushing

292001371

$17.49

33

Drain Ass'y

292001580

$16.49

34

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

35

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

36

Avdel Rivet 3/16"

293150037

$0.56

37

Pop Rivet 3/16"

293150043

$2.09

41

Hull Insert

293450335

$22.99

42

Hull Insert

293450339

$22.99

43

Fitting Elbow 90°

293710152

$18.49

44

Grommet

293720029

$1.59

45

Tie Wrap 94 mm | 4X4

293750001

$1.03

46

RH Sponson

292001878

$93.99

46

LH Sponson

292001877

$93.99

48

Tie Wrap 368 mm

293750008

$1.04

53

Rubber Washer

293830037

$2.68

54

Floating Ball

293830080

$7.19

55

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

56

A Section Support

292001509

$59.99

57

B Section Support

292001510

$59.99

58

Tie Rap Mount

293750026

$3.09

61

Was 275500008 Hose 12 mm

219704356

$20.49

62

LH Trim Tab

292001811

$18.49

62

RH Trim Tab

292001812

$18.49

63

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

64

Flat Washer 8 mm, Stainless

234082600

$2.43

65

Black Shell

292001837

$20.99

66

Flat Washer M8.5 x 18

293050001

$3.07

67

Black, Finition Plate

291001386

$10.99

68

Flat Washer

279000336

$11.57

69

Pop Rivet 3/16"

293150123

$4.29

70

Strap Retaining

270000933

$6.99
