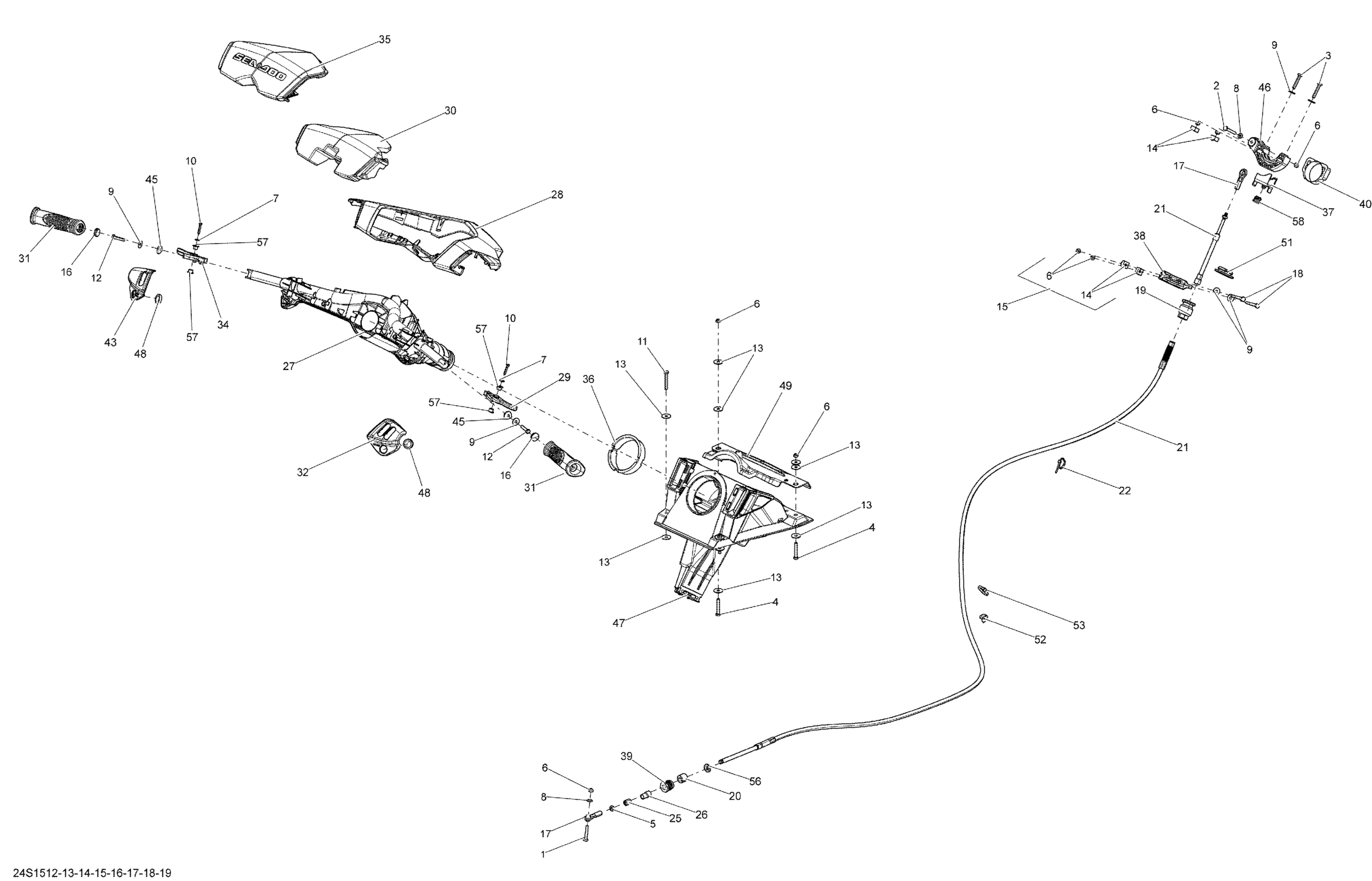

Sea-doo GTI SE 130, 2015 Steering _24S1514 Diagram

#

Description
Price

1

Hex. Screw M6 X 35

207063560

$2.12

2

Hex. Screw M6 X 40

207064060

$1.61

3

Hex. Screw M6 X 35

207163560

$1.34

4

Hex Cap Screw M6X1.0X45 S.Grip

245064560

$1.79

5

Hex. Nut 1/4"-28

211100056

$0.64

6

Elastic Stop Nut M6, Brass

232561200

$4.03

7

Flat Washer 4 mm, Stainless

234042600

$1.06

8

Stainless Flat Washer M6

234061600

$0.28

9

Flat Washer M6, Stainless

234062600

$0.73

10

Hex. Flange Screw K40 X 25

241142560

$2.49

11

Hex Cap Screw M6X1.0X45 S.Grip

245064560

$1.79

12

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.87

13

Flat Washer M6.6 X 22

250200022

$2.15

14

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

15

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

16

Black, Cap

277000203

$8.58

17

Ball Joint

277000775

$46.24

18

Hex. Screw M6 X 50

207165060

$0.87

19

Ajustment Knob

277000782

$18.63

20

Half Ring

277001527

$9.58

21

Steering Cable Ass'y | Includes 540 TO 540d

277001578

$194.75

22

Tie-Rap 180 mm

414115200

$0.10

25

Wiper Rod

277001582

$10.13

26

End Piece

277001583

$12.79

27

Steering Column

277001963

$351.46

28

Steering Cover | IBR

277001969

$61.16

29

Throttle Handle

277001944

$35.04

30

Handlebar Foam

277001921

$82.06

31

Handlebar Grip

277002286

$17.13

32

Housing Cover RH

277001755

$20.12

34

Reverse Handle

277001945

$39.52

35

White Steering Pad | Package STD

277001769

$46.99

35

Silver Steering Pad | Model GTS

277001622

$41.01

36

Wear Ring

277001653

$11.18

37

Spacer

277001654

$13.09

38

Thrust Support Ass'y

277001655

$26.09

39

Steering Cable Lock This part replaces 277000784.

277001729

$11.96

40

Wear Ring

277002318

Unavailable

43

Housing Cover LH

277001860

$20.12

47

Support Ass'y | Includes 710 TO 710e

277001971

$103.70

48

Red, Knob Switch

277001887

$8.66

49

Deflector

293000116

$25.34

51

Cable Grommet

293720090

$7.57

52

Mount Dart

293730040

$0.99

53

Tie Wrap 368 mm

293750008

$0.97

56

Rubber Washer

293830063

$1.73

57

Bushing

293900091

$3.84

58

Cap

517302716

$4.28
