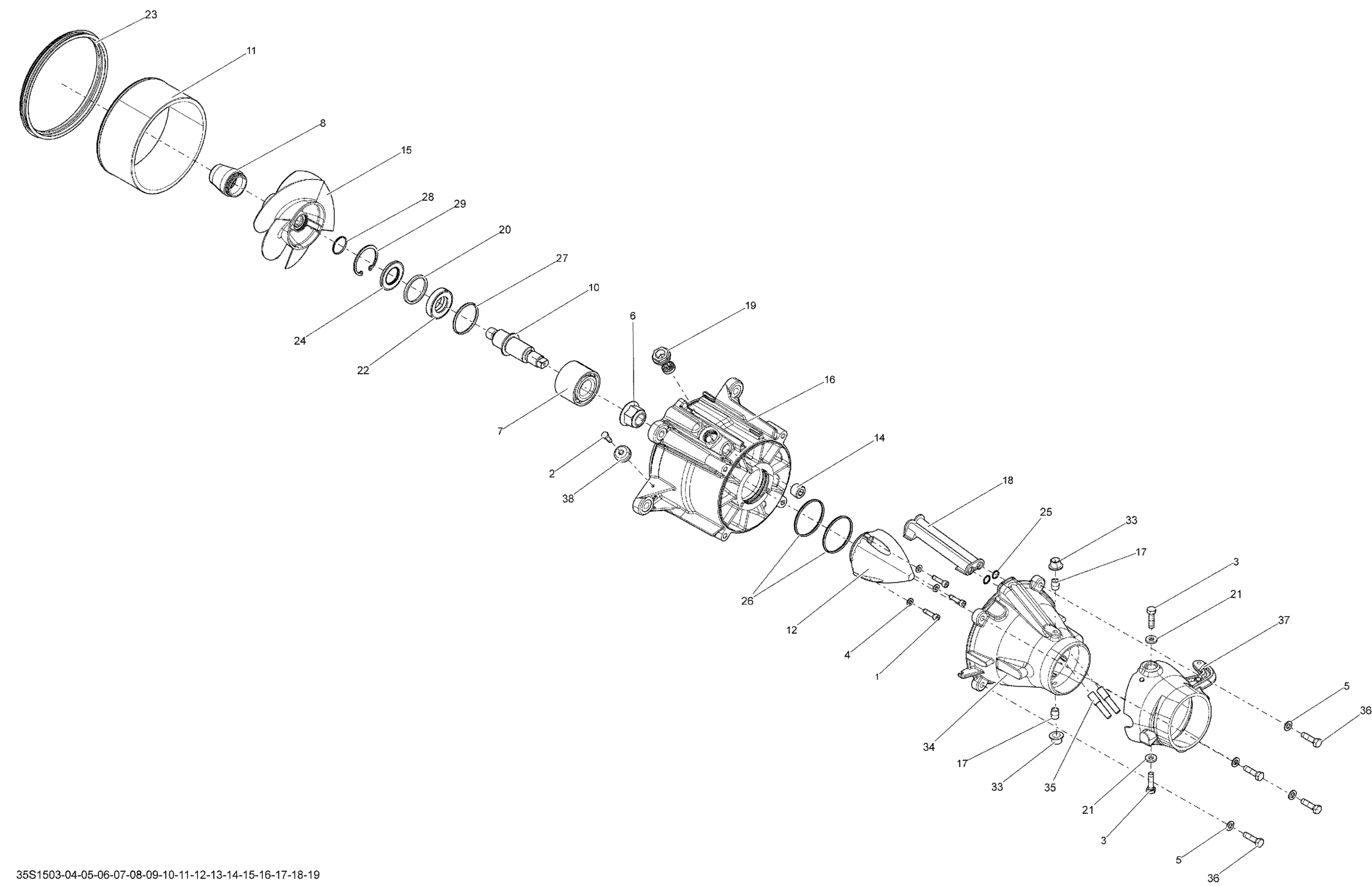

Sea-doo GTI SE 130, 2015 Pump _35S1514 Diagram

#

Description
Price

1

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

2

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

3

Not Available As Spare Parts

XXX

Unavailable

4

Stainless Flat Washer M6

234061600

$0.33

5

Stainless, Flat Washer 8 mm

234081600

$0.55

6

Elastic Flange Nut M20

250100104

$12.66

7

Angled Bearing This part replaces 267000030.

267000900

$80.99

8

Guard

271002225

$11.99

10

Impeller Shaft

267000388

$116.49

11

Wear Ring

267000419

$84.99

12

Impeller Cover

267000428

$18.49

14

Black, Plastic Plug

267000469

$7.59

15

Impeller Ass'y | Starboard, Includes 19 to 20 This part replaces 267000431.

267000940

$391.99

16

Impeller Housing

271002018

$294.99

17

Not Available As Spare Parts

XXX

Unavailable

18

Water Outlet

271000785

$3.80

19

Plug | Includes 370z to 370z1

267000282

$19.49

20

Spacer

271001393

$8.59

21

Not Available As Spare Parts

XXX

Unavailable

22

Seal

271002071

$33.99

23

Neoprene Seal

293200087

$12.63

24

Oil Seal

293200089

$19.99

25

O-Ring

293300013

$8.18

26

O-Ring

293300086

$3.59

27

O-Ring

293300090

$7.20

28

O-Ring

293300114

$15.89

29

Circlip

293370038

$8.79

33

Not Available As Spare Parts

XXX

Unavailable

34

Venturi | With IBR

267000864

$211.99

35

Siphon Tube

271001885

$2.49

36

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

37

Not Available As Spare Parts

XXX

Unavailable

38

Anode Zinc

271001813

$18.99
