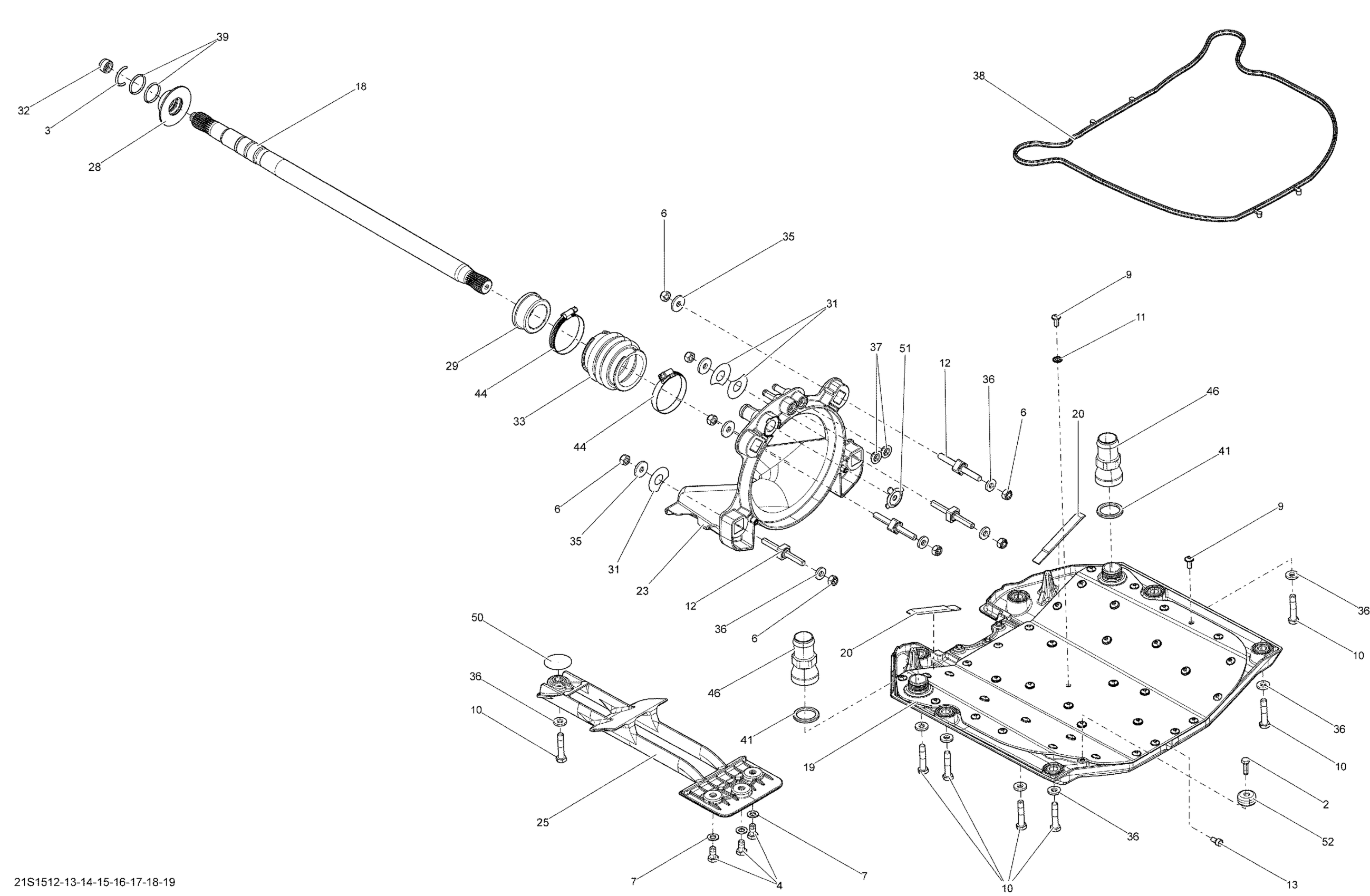

Sea-doo GTI SE 130, 2015 Propulsion _21S1514 Diagram

#

Description
Price

2

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

3

C-Clip

271001575

$5.21

4

Hex. Screw M8 X 16, Scotch Grip

207381660

$0.96

6

Hex. Elastic Nut M8 Brass

232581200

$1.48

7

Stainless, Flat Washer 8 mm

234081600

$0.52

9

Torx Screw M6 X 14

250000384

$7.06

10

Hexagonal Head Cap Screw M8 X 45

250000782

$2.70

11

Sealing Washer

250200114

$4.15

12

Square Stud

250300046

$13.67

13

Socket Drain Plug M6 X 12

250500005

$13.48

18

Drive Shaft This part replaces 271001534.

271001724

$305.19

19

Riding Plate Ass'y | Includes 120 TO 120f

271001860

$208.18

20

Gasket, Neoprene 2000Mm Long

219704476

$14.51

23

Pump Support

271001943

$38.03

25

Pump Grate

271001969

$49.22

28

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

29

Carbon Ring Kit This part replaces 272000177.

295501200

$77.58

31

Shim 0.3 mm

272000053

$9.21

32

Drive Shaft Plug

272000173

$8.06

33

Bellow

271001902

$25.34

35

Flat Washer

279000336

$9.58

36

Flat Washer M8.5 x 18

293050001

$1.48

37

Watertight Seal

293250084

$6.67

38

Seal

293250235

$7.90

39

O-Ring

293300044

$0.99

41

O-Ring

293300121

$7.09

44

Norma Clamp

293650079

$10.21

44

Norma Clamp

293650077

$7.01

46

Straight Plastic Fitting

293710111

$7.90

50

PROTECTOR DISK - Call your local BRP dealership

293830047

Unavailable

51

Reducer, Green This part replaces 271001586.

271002029

$14.72

52

Anode Zinc

271001813

$15.64
