- GTI SE 130, 2012
10- Electrical System

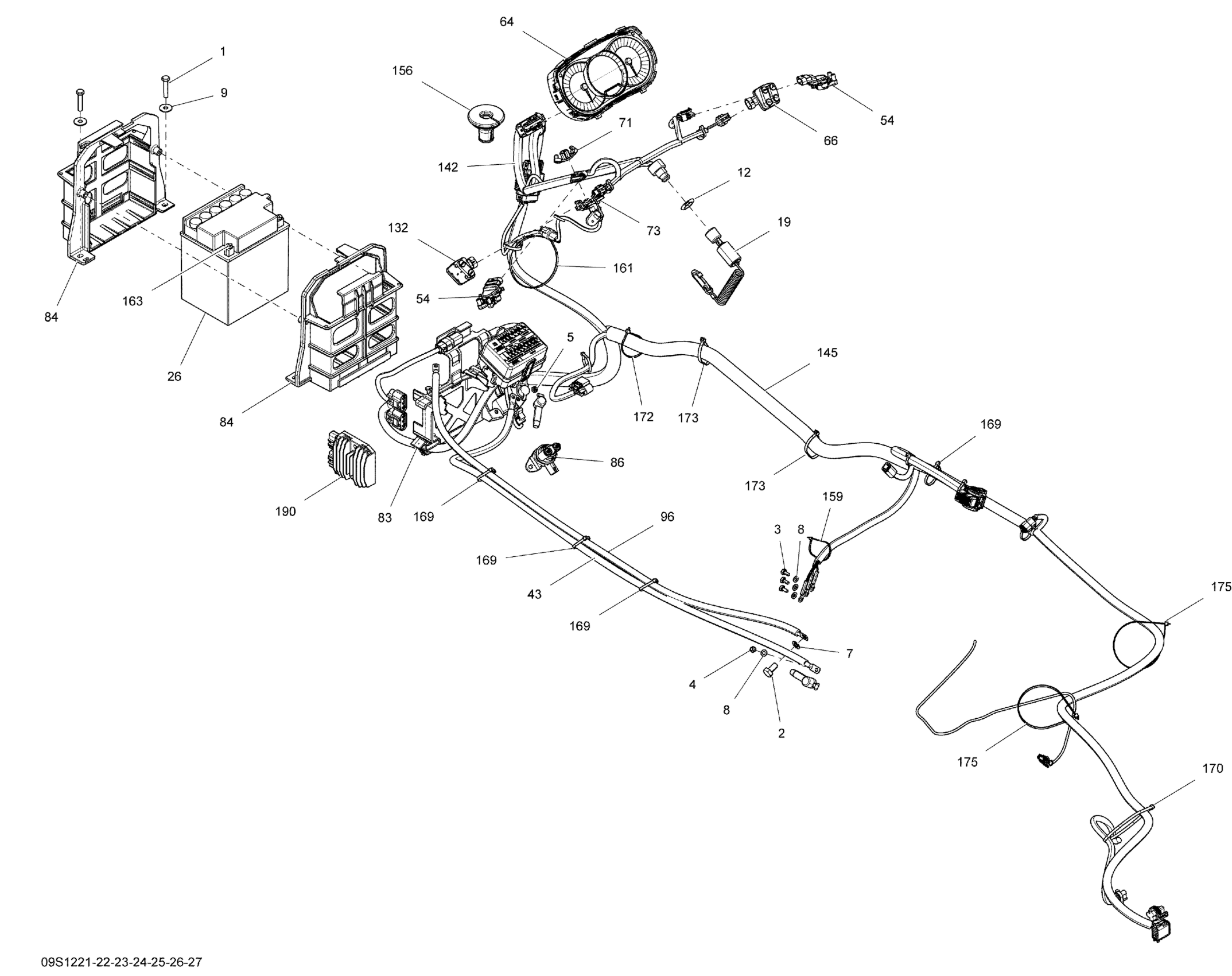

Sea-doo GTI SE 130, 2012 10- Electrical System Diagram
#
Description
Price
1
Hex. Screw M8 X 40
207184060
$2.22
2
Hex. Screw M10 X 20, Scotch Grip
207302060
$4.02
3
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
4
Elastic Stop Nut M6, Brass
232561200
$4.23
5
Elastic Stop Nut M6, Brass
232561200
$4.23
7
Flat Washer 10 mm, Stainless
234000600
$1.46
8
Stainless Flat Washer M6
234061600
$0.33
9
Flat Washer 8 mm, Stainless
234082600
$2.43
12
Safety Nut (DESS Switch)
278002963
$3.28
19
Safety Lanyard, Antitheft
278002483
$58.49
26
Battery, 30 Amperes
278001882
$184.01
43
Cable-Starter
278003398
$63.99
54
LH Throttle Sensor
278002284
$119.99
54
Throttle Position Sensor
278002283
$119.99
64
Cluster LCD This part replaces 278002718.
278003005
$1.00
66
Switch RH Mode/Set
278002602
$126.99
71
O.T.A.S Actuator
278003537
$42.99
73
O.T.A.S. Sensor Ass'y
278003009
$109.99
83
Support
278003048
$21.99
84
Battery Support
278003306
$20.99
86
Starter Relay
278003012
$42.49
96
Battery Ground Cable
278003270
$41.49
132
Switch LH Sport/Eco
278002768
$83.49
142
Steering Harness | Includes 1 to 2055
278002769
$359.99
145
Wiring Harness
278002943
$1.00
156
Cable Grommet
293720092
$13.49
159
Tie Wrap 368 mm
293750008
$1.04
161
Tie Wrap 368 mm
293750008
$1.04
163
Battery Bolt Kit
250000282
$7.29
169
Tie-Rap 180 mm
414115200
$0.11
170
Tie Wrap 368 mm
293750008
$1.04
172
Tie Wrap 368 mm
293750008
$1.04
173
Tie Wrap 368 mm
293750008
$1.04
175
Tie Wrap 368 mm
293750008
$1.04
190
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
