- Partiron
- OEM Parts
- Sea-doo
- Watercraft
- 2011
- GTI
- GTI SE 130, 2011
09- Body, Front View

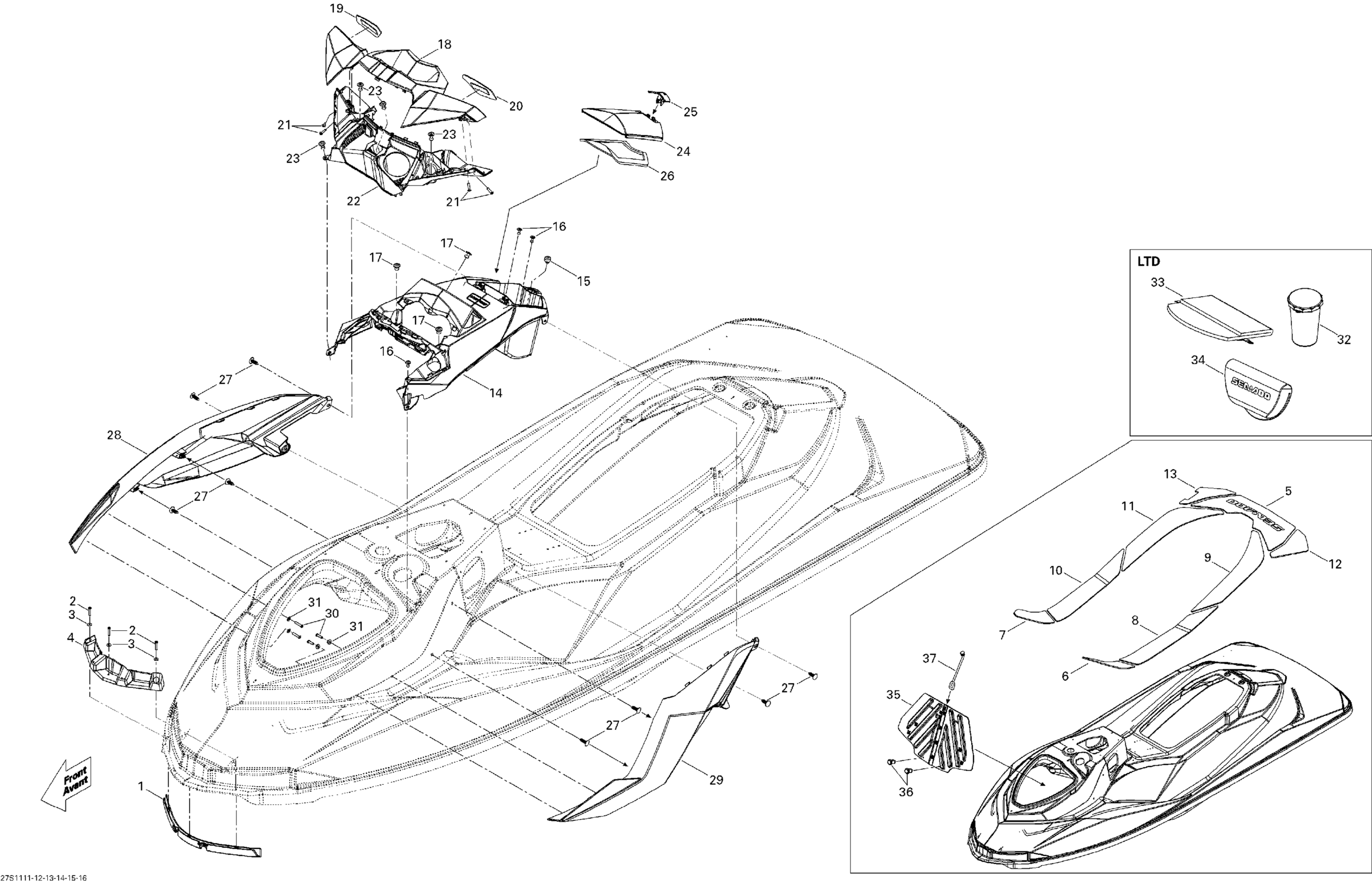

Sea-doo GTI SE 130, 2011 09- Body, Front View Diagram
#
Description
Price
1
Deck Nose
291003897
$18.99
2
Hex. Flange Screw K40 X 25
241142560
$2.64
3
Flat Washer 4 mm, Stainless
234042600
$1.15
4
Bumper Support | Package SE Manta Green
291003704
$21.99
5
Swim Platform Carpet
291003096
$88.99
6
Front Carpet LH
291003058
$24.99
7
Front Carpet RH
291003059
$24.99
8
Front Center Carpet LH
291003060
$28.49
9
Rear Center Carpet LH
291003329
$34.99
10
Front Center Carpet RH
291003061
$28.49
11
Rear Center Carpet RH
291003330
$34.99
12
Rear Carpet LH
291003062
$20.49
13
Rear Carpet RH
291003063
$20.49
14
Console
291004276
$134.99
15
Rubber Bumper
293830005
$8.09
16
Pop Rivet 3/16"
293150123
$4.29
17
Pop Rivet 3/16
293150186
$2.09
18
Black Bezel Ass'y | Package SE This part replaces 291004489.
291004261
$149.99
19
Mirror RH, With Double-Face Tape
291003090
$48.49
20
Mirror LH, With Double-Face Tape
291003091
$48.49
21
Flange Torx Screw K40 X 16
250000287
$2.11
22
Deep Black, Mirror Support
291004271
$48.99
23
Pop Rivet 3/16"
293150123
$4.29
24
Deep Black, Glove Door Ass'y | Includes 840 TO 840c
269502140
$65.99
25
Black, Latch
264000164
$15.99
26
Gasket
293250236
$41.49
27
Black, Dart
293730006
$0.99
28
White RH Cosmetic Panel This part replaces 269501812.
269502191
$149.99
29
WHITE LH COSMETIC PANEL - Call your local BRP dealership This part replaces 269501813.
269502192
Unavailable
30
Plastite Torx Screw #10 X 7/8"
250000207
$2.00
31
Stainless Flat Washer M6
234061600
$0.33
32
Not Available As Spare Parts
XXX
Unavailable
33
Not Available As Spare Parts
XXX
Unavailable
34
Not Available As Spare Parts
XXX
Unavailable
35
Divider Ass'y
291004572
$104.99
36
Tuflok Plastic Rivet
293150230
$1.47
37
Holding Strap
269502111
$18.49
