Description

Price

1

Housing Impeller Anodized This part replaces 267000417.

271002161

$329.99

2

Wear Ring

267000419

$84.99

3

Black, Plastic Plug

267000469

$7.59

4

Neoprene Seal

293200087

$12.63

5

Bushing

267000093

$9.59

6

Water Outlet

271000785

$3.80

7

Plug | Includes 370z to 370z1

267000282

$19.49

8

Impeller Shaft

267000388

$116.49

9

Angled Bearing This part replaces 267000030.

267000900

$80.99

10

Elastic Flange Nut M20

250100104

$12.66

11

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

13

O-Ring

293300090

$7.20

14

Seal

271002071

$33.99

15

Circlip

293370038

$8.79

16

Spacer

271001393

$8.59

17

Oil Seal

293200089

$19.99

18

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

19

Impeller Ass'y | Starboard, Includes 19 to 20 This part replaces 267000431.

267000940

$391.99

20

O-Ring

293300114

$15.89

21

Guard

271002225

$11.99

22

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

23

Synthetic Grease, 400 G

293550010

Unavailable

24

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

25

O-Ring

293300086

$3.59

26

Impeller Cover

267000428

$18.49

27

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

28

Stainless Flat Washer M6

234061600

$0.33

29

Not Available As Spare Part - Friction Washer

Unavailable

30

VENTURI - Call your local BRP dealership | GTS PRO

267000289

Unavailable

31

Siphon Tube

271001133

$10.99

32

O-Ring

293300013

$8.18

33

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

34

Stainless, Flat Washer 8 mm

234081600

$0.55

35

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 267000140.

267000552

Unavailable

36

Venturi Bushing

293900001

$7.62

37

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

38

Flat Washer M8.5 x 18

293050001

$3.07

39

Sleeve

271001816

$14.99

40

Anode Zinc

271001813

$18.99

41

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

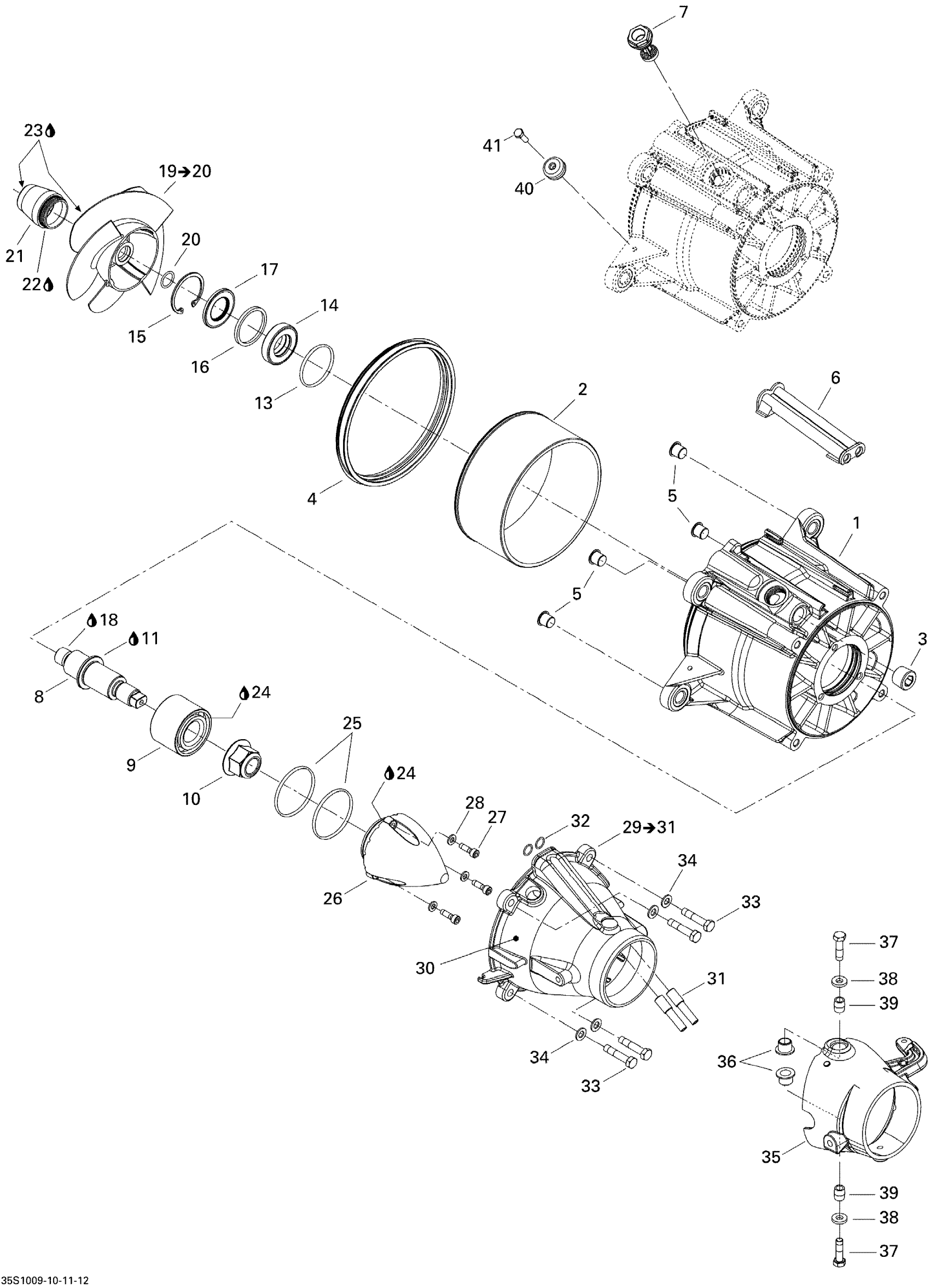

Sea-doo GTI SE 130, 2010 Pump Diagram

Housing Impeller Anodized This part replaces 267000417.

Wear Ring

Black, Plastic Plug

Neoprene Seal

Bushing

Water Outlet

Plug | Includes 370z to 370z1

Impeller Shaft

Angled Bearing This part replaces 267000030.

Elastic Flange Nut M20

Jet Pump Bearing Grease, 110 G

O-Ring

Seal

Circlip

Spacer

Oil Seal

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Impeller Ass'y | Starboard, Includes 19 to 20 This part replaces 267000431.

O-Ring

Guard

Était Was 293800050 Loctite 577, 250 ml

Synthetic Grease, 400 G

Jet Pump Bearing Grease, 110 G

O-Ring

Impeller Cover

Socket Head Screw M6 X 25, Scotch Grip

Stainless Flat Washer M6

Not Available As Spare Part - Friction Washer

VENTURI - Call your local BRP dealership | GTS PRO

Siphon Tube

O-Ring

Hex. Screw M8 X 30, Scotch Grip

Stainless, Flat Washer 8 mm

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 267000140.

Venturi Bushing

Hex. Screw M8 X 30, Scotch Grip

Flat Washer M8.5 x 18

Sleeve

Anode Zinc

Hex. Screw M6 X 20, Scotch Grip
