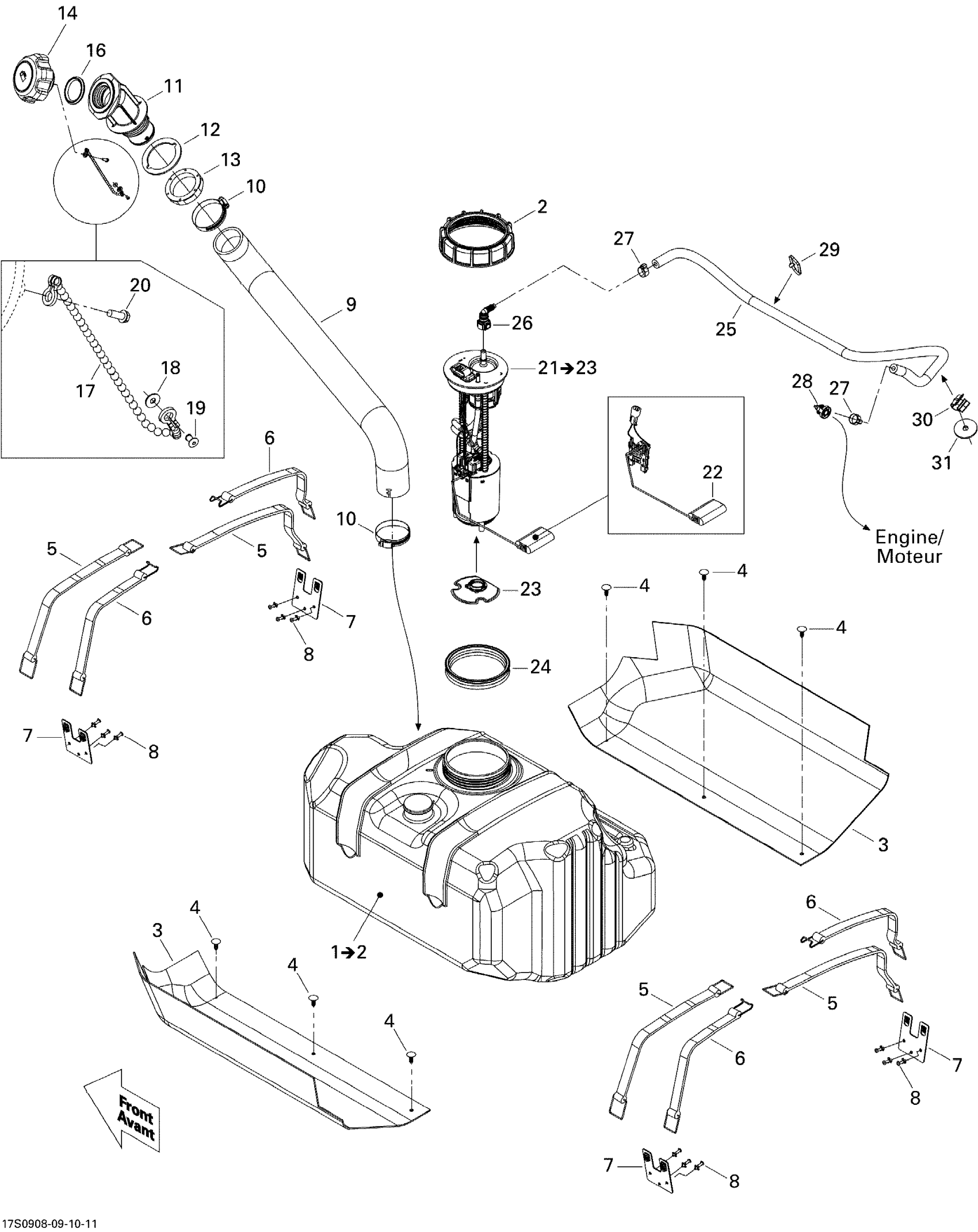

Sea-doo GTI SE 130, 2009 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership | Includes 1 to 2

275500795

Unavailable

2

Special Nut M130

250100062

$21.99

3

RUBBER PAD - Call your local BRP dealership

293830094

Unavailable

4

Black, Dart

293730011

$0.99

5

Fuel Tank Strap

293850093

$21.99

6

Fuel Tank Strap

293850094

$22.49

7

STRAP CLIP - Call your local BRP dealership

293850066

Unavailable

8

Pop Rivet 3/16"

293150043

$2.09

9

FUEL FILLER NECK HOSE - Call your local BRP dealership

275500786

Unavailable

10

Norma Clamp

293650081

$12.18

11

FILLER NECK - Call your local BRP dealership

275500803

Unavailable

12

Gasket

293250029

$14.82

13

Filler Neck Nut, Fuel

211100012

$14.22

14

FUEL TANK CAP - Call your local BRP dealership

275500710

Unavailable

16

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

17

Fuel Cap Chain

275500507

$17.59

18

Flat Washer M3, Stainless

234032600

$0.55

19

Pop Rivet 1/8"

390407900

$1.49

20

Screw K40 X 10

241140060

$1.48

21

FUEL PUMP - Call your local BRP dealership | Includes 21 to 23

275500736

Unavailable

22

Sensor Lever

275500780

$224.99

23

Fuel Filter

270600113

$33.99

24

Gasket

293250173

$18.49

25

Hose

275500768

Unavailable

26

Quick Attach 90°

275500700

$16.49

27

Oetiker Clamp

293650140

$2.69

28

Elbow Fitting 90°

293710105

$14.22

29

Tie-Rap 180 mm

414115200

$0.11

30

Hose Retainer

275500528

Unavailable

31

RUBBER WASHER - Call your local BRP dealership

250200028

Unavailable
