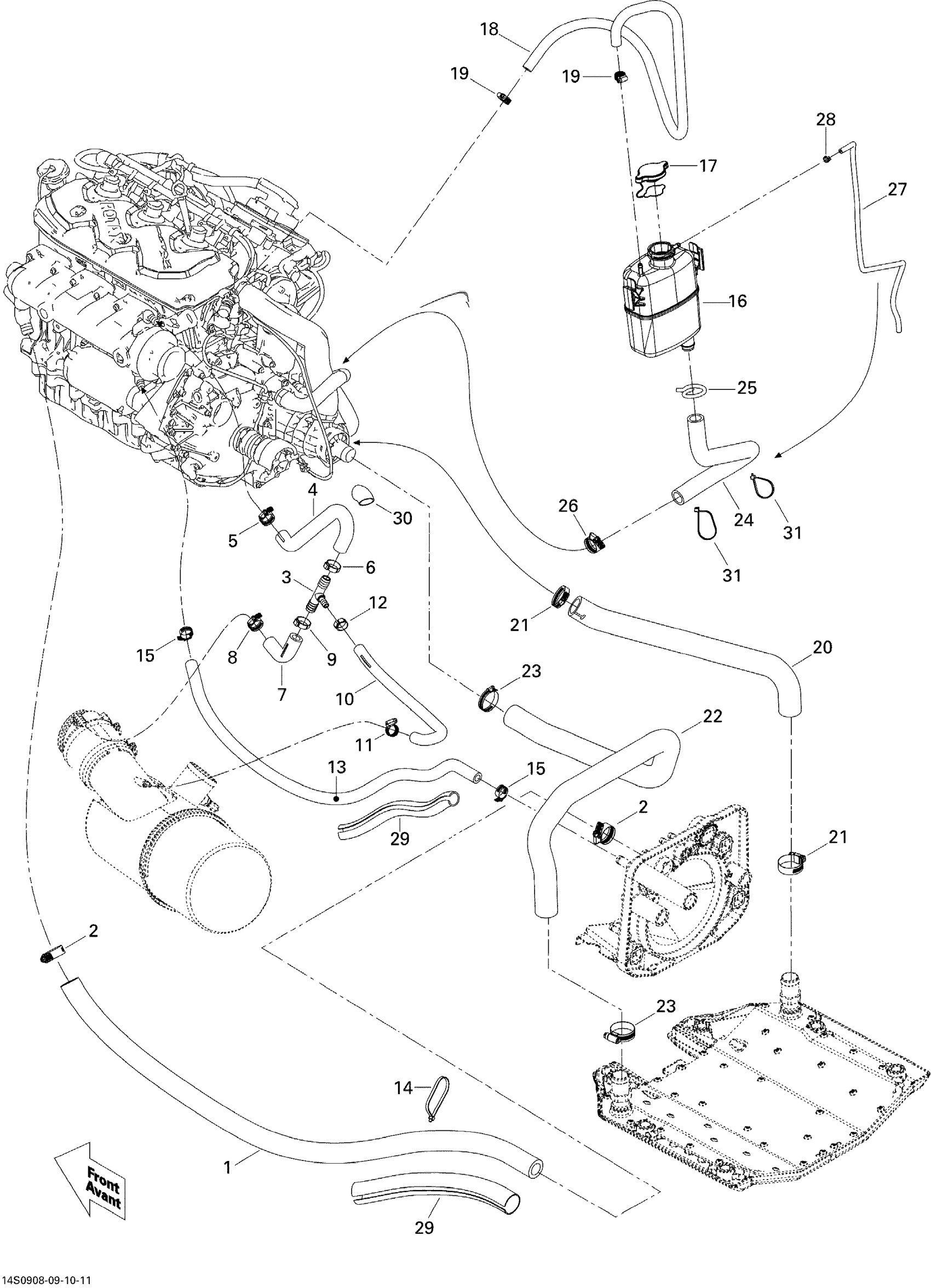

Sea-doo GTI SE 130, 2009 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

2

Tridon Gear Clamp

293650051

$4.19

3

T-Fitting

293710116

$17.62

4

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

5

Tridon Gear Clamp

293650172

$3.09

6

Oetiker Clamp

293650012

$7.49

7

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

8

Tridon Gear Clamp

293650172

$3.09

9

Oetiker Clamp

293650012

$7.49

10

Formed Hose | Without Catalyst

276000246

$19.49

11

Tridon Gear Clamp

293650171

$3.09

12

Oetiker Clamp | Europe

293650030

$5.19

13

Was 276000001 Hose 12.5 mm

219704394

$51.99

14

Tie Wrap 368 mm

293750008

$1.04

15

Tridon Gear Clamp

293650172

$3.09

16

Coolant Tank

276000086

$109.99

17

Pressure Cap | Includes 720 to 720a

276000100

$25.99

18

Was 275500549 Hose 1/4"

219704357

$194.99

19

Tridon Gear Clamp

293650170

$1.99

20

RH Radiator Hose

276000248

$58.99

21

Tridon Gear Clamp

293650185

$13.99

22

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

23

Tridon Gear Clamp

293650185

$13.99

24

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

25

Spring Clamp

293650115

$3.09

26

Tridon Gear Clamp

293650019

$5.82

27

Polyurethane Hose 10000Mm Long

219704410

$56.99

28

Tie Wrap 94 mm | 4X4

293750001

$1.03

29

Tubing 25 MM 1000MM Long

219704402

$15.99

30

PROTECTOR TUBE 25 MM - Call your local BRP dealership

276000162

Unavailable

31

Tie-Rap 180 mm

414115200

$0.11
