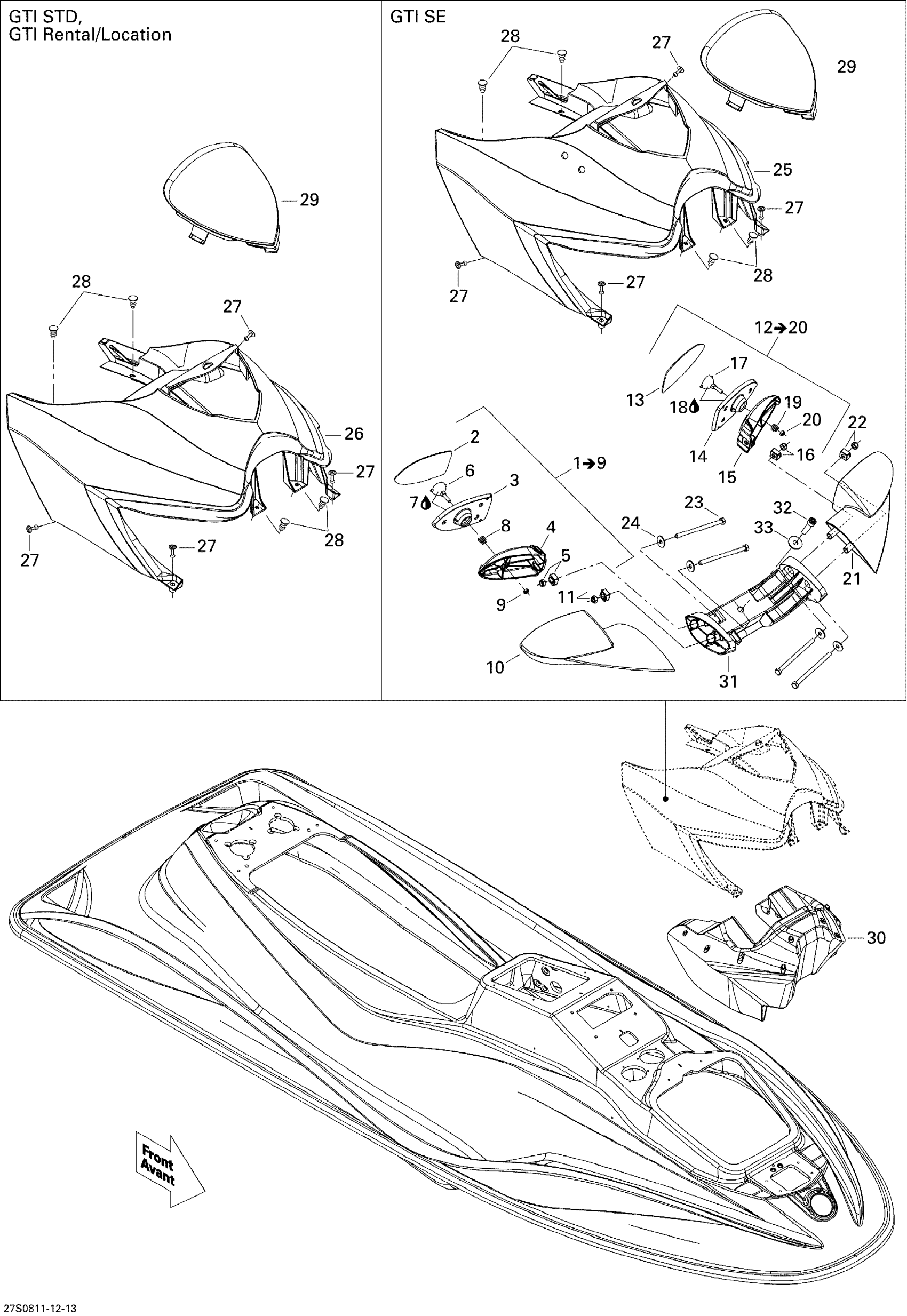

Sea-doo GTI SE 130, 2008 Body, Front View Diagram

#

Description
Price

1

RH MIRROR ASS'Y - Call your local BRP dealership | Includes 7 to 9

269501633

Unavailable

2

RH Mirror

269501328

Unavailable

3

Mirror Frame

269501330

Unavailable

4

Housing Support

269501331

Unavailable

5

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

6

MIRROR BALL JOINT - Call your local BRP dealership

269501333

Unavailable

7

Synthetic Grease, 400 G

293550010

Unavailable

8

Mirror Spring

269501334

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

RH MIRROR SHELL ASS'Y - Call your local BRP dealership | Includes 10 to 11

269501522

Unavailable

11

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

12

LH MIRROR - Call your local BRP dealership | Includes 10 to 12

269501634

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Mirror Frame

269501330

Unavailable

15

Housing Support

269501331

Unavailable

16

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

17

MIRROR BALL JOINT - Call your local BRP dealership

269501333

Unavailable

18

Synthetic Grease, 400 G

293550010

Unavailable

19

Mirror Spring

269501334

Unavailable

20

Hex. Elastic Stop Nut M6

232561600

$1.15

21

LH MIRROR SHELL ASS'Y - Call your local BRP dealership | Includes 21 to 22

269501521

Unavailable

22

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

23

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

23

SOCKET HEAD SCREW M8 X 120 - Call your local BRP dealership

231082060

Unavailable

24

Flat Washer 8 mm, Stainless

234082600

$2.43

25

PODIUM - Call your local BRP dealership

291002866

$339.99

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Pop Rivet 3/16"

293150123

$4.29

28

Dart | Not Shown

293730039

$1.99

29

Wind Screen

291002511

$61.99

30

FLOAT PLATFORM - Call your local BRP dealership

292001095

Unavailable

31

MIRROR SUPPORT - Call your local BRP dealership

277001475

Unavailable

32

SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership

205004060

Unavailable

33

Flat Washer 10 mm, Stainless

234002600

$2.22
