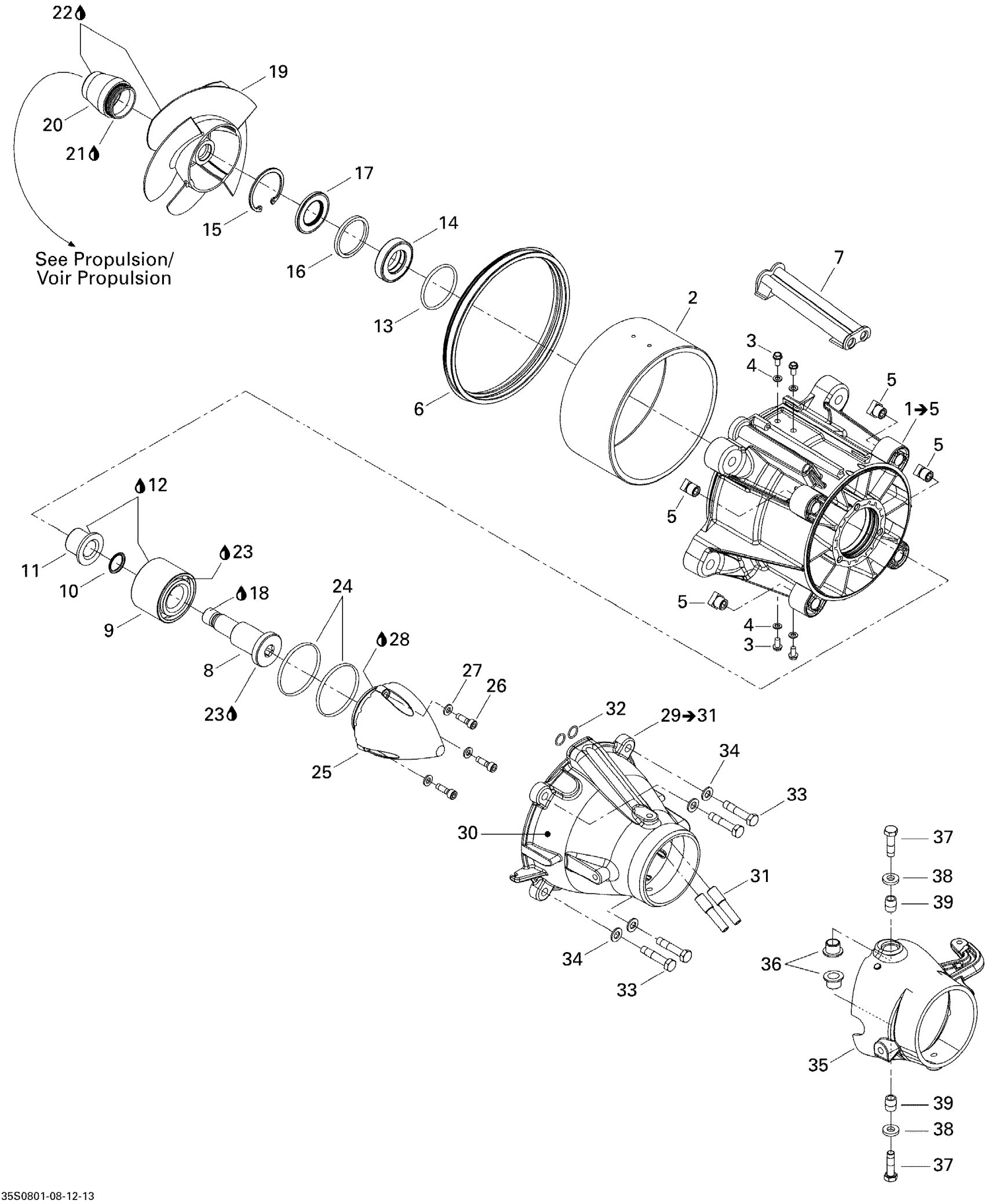

Sea-doo GTI SE 130, 2008 Pump Diagram

#

Description
Price

1

Impeller Housing Ass'y | Includes 1 to 5

267000269

Unavailable

2

Wear Ring

267000419

$84.99

3

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

4

Flat Washer M5, Stainless

234051600

$0.77

5

Square Nut M8

211100033

$17.99

6

Neoprene Seal

293200087

$12.63

7

Water Outlet

271000785

$3.80

8

Impeller Shaft

267000054

$116.49

9

Angled Bearing This part replaces 267000030.

267000900

$80.99

10

O-Ring

505070315

$2.85

11

Shaft Sleeve

267000318

$134.99

12

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

13

O-Ring

293300090

$7.20

14

Seal

271002071

$33.99

15

Circlip

293370038

$8.79

16

Spacer

271001393

$8.59

17

Oil Seal

293200089

$19.99

18

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

19

Impeller Assy | Port Side This part replaces 267000211.

267000675

$391.99

20

Guard

271002225

$11.99

21

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

22

Synthetic Grease, 400 G

293550010

Unavailable

23

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

24

O-Ring

293300086

$3.59

25

Impeller Cover

267000262

$21.99

26

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

27

Stainless Flat Washer M6

234061600

$0.33

28

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

VENTURI - Call your local BRP dealership | GTS PRO

267000289

Unavailable

31

Siphon Tube

271001133

$10.99

32

O-Ring

293300013

$8.18

33

Hex. Screw M8 X 50, Scotch Grip

207285060

$2.11

34

Stainless, Flat Washer 8 mm

234081600

$0.55

35

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 267000140.

267000552

Unavailable

36

Venturi Bushing

293900001

$7.62

37

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

38

Flat Washer M8.5 x 18

293050001

$3.07

39

Sleeve

271001816

$14.99
