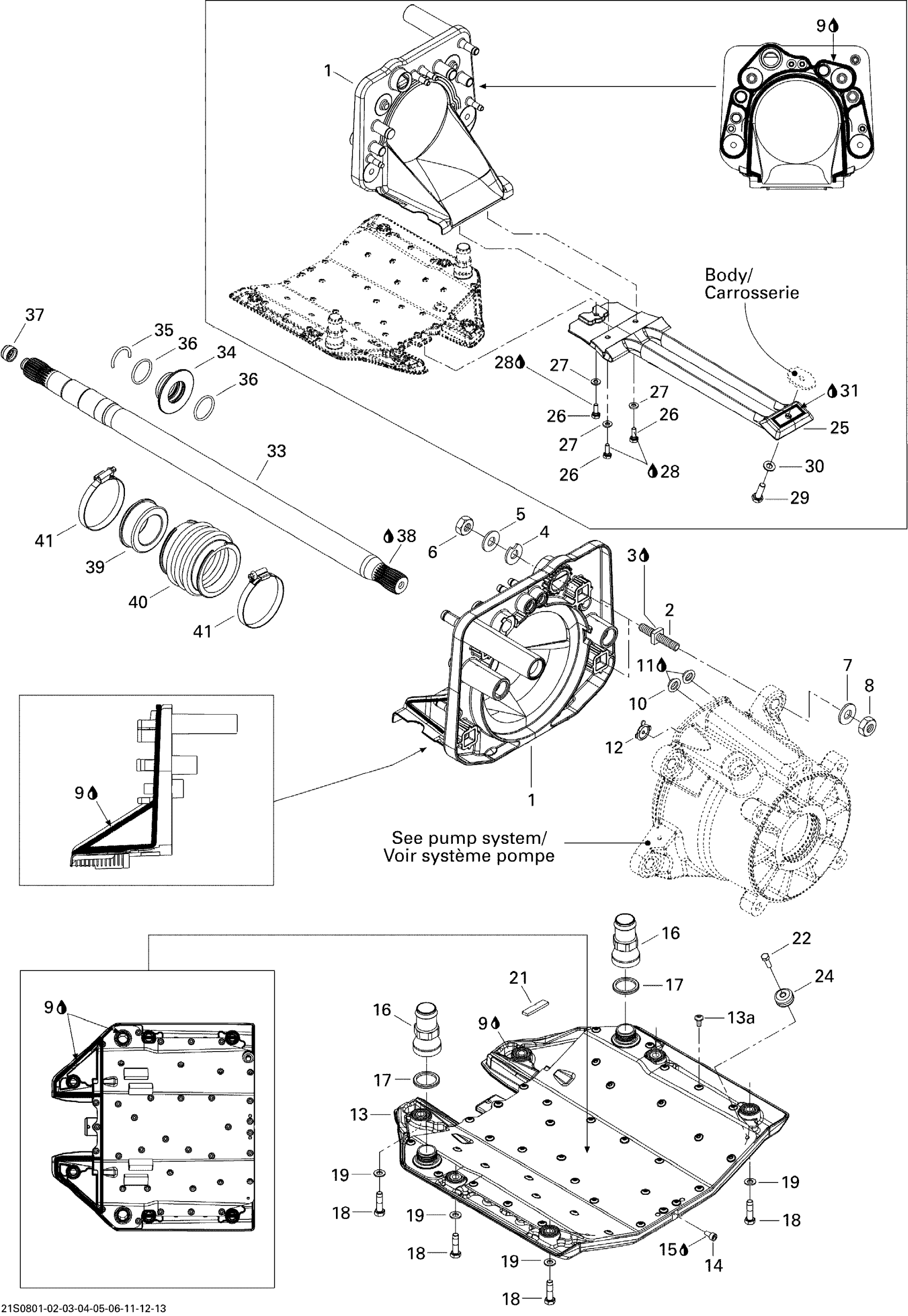

Sea-doo GTI SE 130, 2008 Propulsion Diagram

#

Description
Price

1

Pump Support

271001545

$107.87

2

Square Stud

250300022

$15.57

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

4

Shim 0.3 mm

272000053

$8.02

5

Flat Washer 10 mm, Stainless

234002600

$1.85

6

Elastic Stop Nut M10, Brass

232501200

$2.16

7

Flat Washer 10 mm, Stainless

234002600

$1.85

8

Elastic Stop Nut M10, Brass

232501200

$2.16

9

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

10

Watertight Seal

293250084

$5.81

11

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

12

Reducer This part replaces 291001887.

291004649

$12.57

13

Riding Plate Ass'y | Includes 10 to 12

271001649

Unavailable

13a

Torx Button Head Screw M6 X 14

250000064

$7.28

14

Socket Drain Plug M6 X 12

250500005

$11.74

15

Was 293800013 Loctite 56765

219704454

$65.35

16

Straight Plastic Fitting

293710111

$6.88

17

O-Ring

293300121

$6.18

18

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.05

19

Stainless, Flat Washer 8 mm

234081600

$0.46

21

Gasket, Neoprene 2000Mm Long

219704476

$12.64

22

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

24

Anode Zinc

271001813

$13.62

25

Pump Grate, Black

271001527

$17.52

26

Hex. Screw M6 X 16

207161660

$1.22

27

Stainless Flat Washer M6

234061600

$0.25

28

Loctite 271, 10 ml

293800005

$20.77

29

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

30

Stainless, Flat Washer 8 mm

234081600

$0.46

31

Silicone Sealant 51388, 300 ml

296000309

$35.72

33

Drive Shaft This part replaces 271001534.

271001724

$265.82

34

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

35

C-Clip

271001575

$4.54

36

O-Ring

293300044

$0.86

37

Drive Shaft Plug

272000173

$7.02

38

Synthetic Grease, 400 G

293550010

Unavailable

39

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

40

Bellows

272000183

$22.72

41

Norma Clamp

293650077

$6.11
