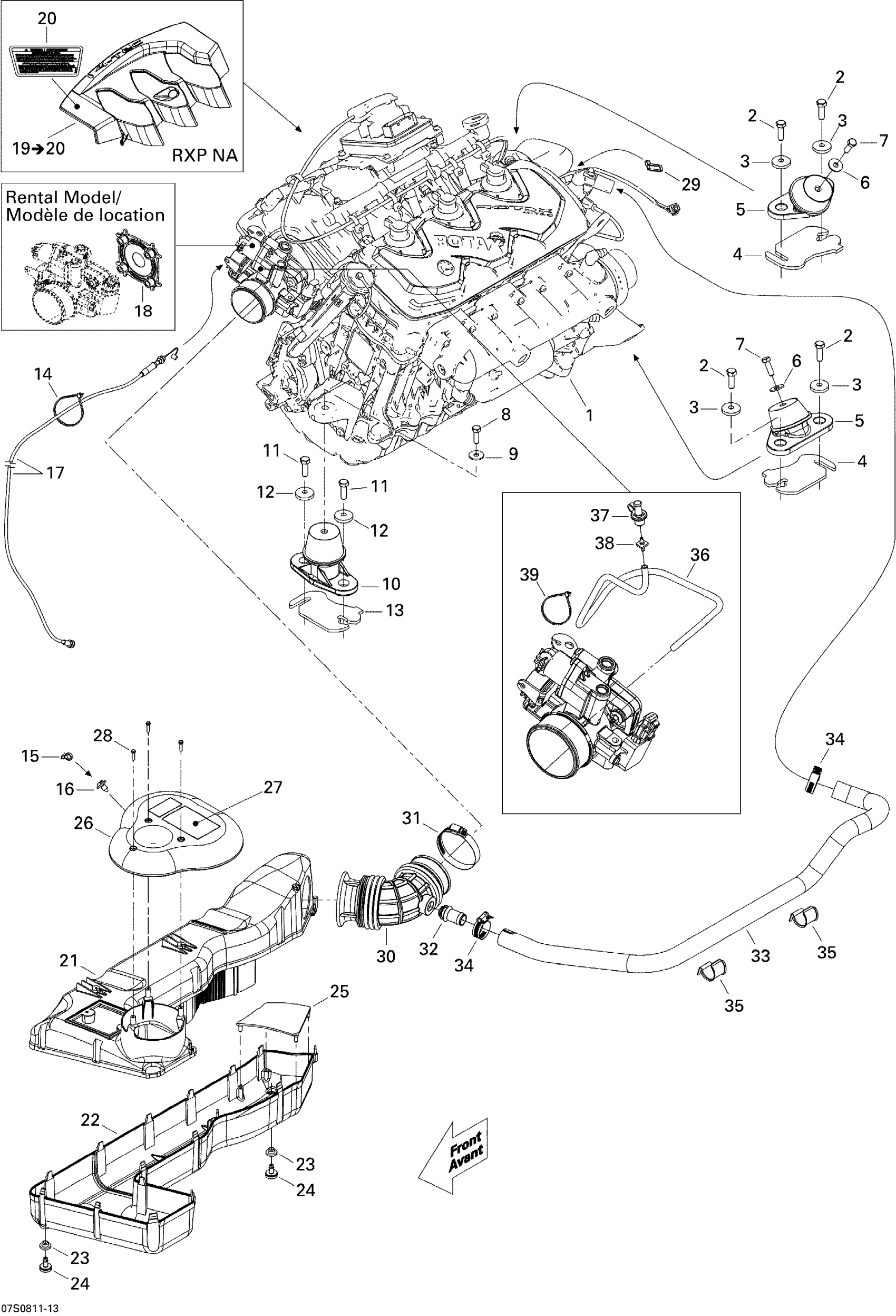

Sea-doo GTI SE 130, 2008 Engine And Air Intake Silencer Diagram

#

Description
Price

1

ENGINE LONG BLOCK, 1503 DT ETC - Call your local BRP dealership

420150349

$4.00

61

REBUILD-LONG BLOCK 1503DT - Call your local BRP dealership

421000640

Unavailable

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

3

Cone Washer

250200018

$5.61

4

Shim 1.3 mm

270000762

$12.99

5

Engine Support Ass'y

270001081

$109.99

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

Engine Support Ass'y

270001096

$97.99

11

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

12

Cone Washer

250200018

$5.61

13

Shim 1.3 mm

270000762

$12.99

14

Tie-Rap 180 mm

414115200

$0.11

15

Tie Wrap 142 mm

293750002

$1.25

16

Mount Dart

293730040

$1.04

17

THROTTLE CABLE - Call your local BRP dealership

277001170

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

AIR SILENCER UPPER - Call your local BRP dealership

273000244

Unavailable

22

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

23

GROMMET - Call your local BRP dealership

293720064

Unavailable

24

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

25

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

26

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

27

Caution Decal, Air Silencer

219902673

Unavailable

28

Hex. Flange Screw K40 X 16

241141660

$1.48

29

Tie Wrap 142 mm

293750002

$1.25

30

INTAKE HOSE - Call your local BRP dealership

270000628

Unavailable

31

Tridon Clamp

293650179

$11.49

32

Breather Valve

273000234

$14.49

33

Formed Hose

270000949

$47.99

34

Tridon Gear Clamp

293650051

$4.19

35

Retainer

275500664

$14.75

36

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

37

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

38

CONNECTOR - Call your local BRP dealership

293710107

$1.09

39

Tie Wrap 142 mm

293750002

$1.25
