- GTI RFI STD, 2005
10- Electrical Harness STD

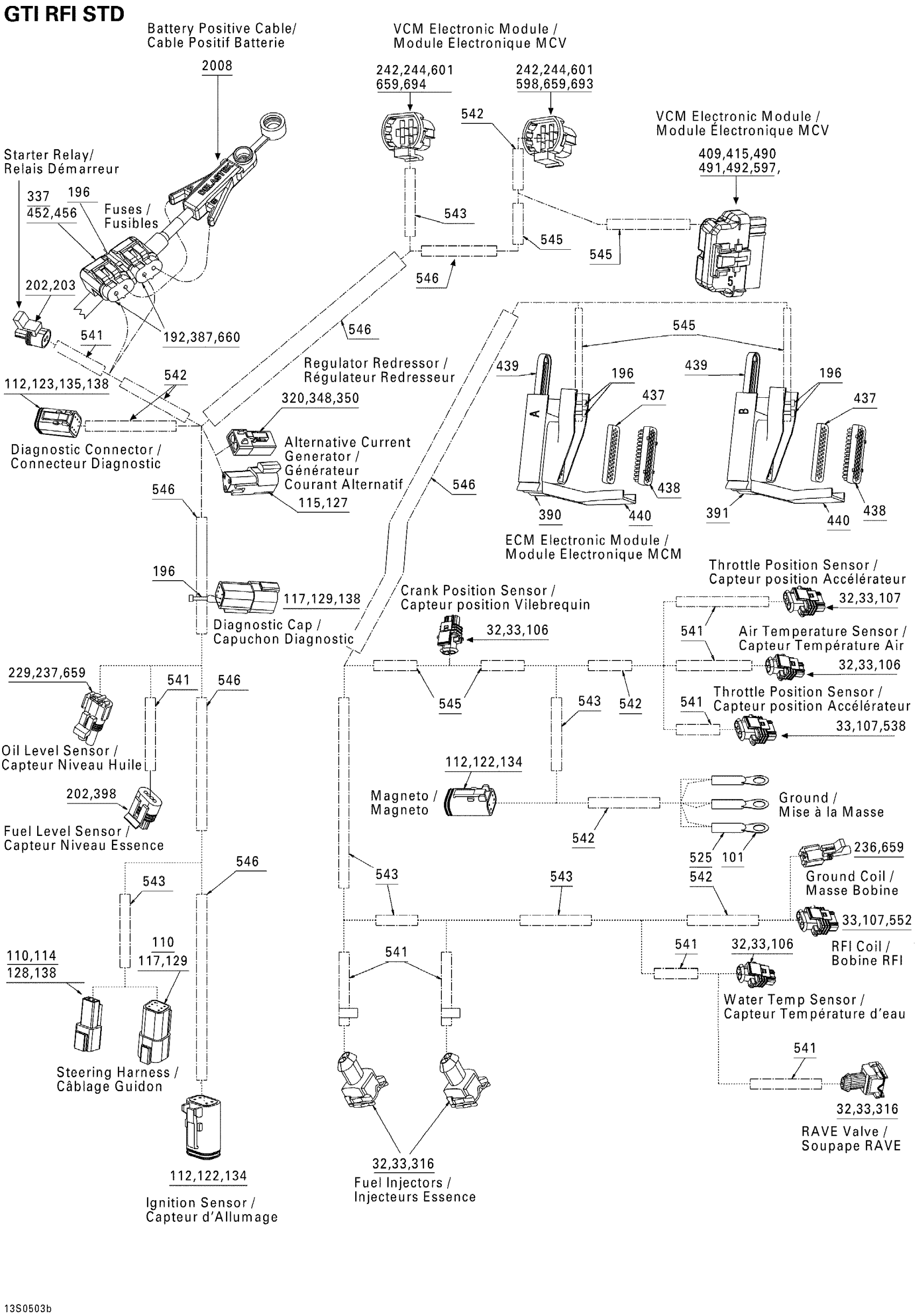

Sea-doo GTI RFI STD, 2005 10- Electrical Harness STD Diagram
#
1
WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 001 to 2010
278001990
Unavailable
32
Female Terminal
278000998
$4.39
33
Wire Seal
278000999
$3.19
101
Not Available As Spare Part - Friction Washer
Unavailable
106
Male Housing, 2 Circuits
278001005
$19.49
107
Male Housing, 3 Circuits
278000997
$19.49
110
Male Terminal
278000631
$4.39
111
Male Terminal
515175823
$4.55
112
Female Terminal
278000632
$2.09
113
FEMALE TERMINAL - Call your local BRP dealership
278001276
Unavailable
115
Male Housing
278002378
$13.99
117
Male Terminal Housing, 6 Circuits
710001539
$19.99
118
MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership
278001742
Unavailable
120
Female Connector, 2 Circuits
409207300
$9.85
122
Male Connector, 4 Circuits | CE
278000739
$19.49
123
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
124
MALE HOUSING, 8 CIRCUITS - Call your local BRP dealership
278001743
Unavailable
127
Male Lock, 3 Circuits
409207600
$3.19
129
Female Lock, 6 Circuits
278000735
$3.19
130
LOCK MALE, 8 CIRCUITS - Call your local BRP dealership
515175276
Unavailable
132
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
409207100
Unavailable
134
Male Lock, 4 Circuits | CE
278000738
$3.09
135
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
136
SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership
278001744
Unavailable
138
Sealing Cap
293000052
$3.19
176
OPEN BARREL - Call your local BRP dealership
409003200
Unavailable
192
Fuse, 20 Amperes
409003900
$3.28
196
Tie Wrap 142 mm
293750002
$1.25
202
Female Terminal
278001114
$3.19
203
Male Connector, 2 Circuits
278001113
$16.86
229
Female Terminal
278000223
$3.19
236
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
237
Male Connector, 2 Circuits
278000220
$15.49
238
Male Housing, 3 Circuits
278000273
$9.59
242
Wire Seal
278000218
$4.39
244
Wire Seal
278000216
$3.19
316
Male Connector, 2 Circuits
278001003
$46.49
320
Female Terminal
515175567
$7.69
337
Female Terminal
710000113
$6.99
348
Female Terminal Housing, 2 Circuits
278001673
$23.49
350
Female Lock, 2 Circuits
278001671
$3.58
387
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
388
FEMALE TERMINAL - Call your local BRP dealership
278001750
Unavailable
390
Not Available As Spare Part - Friction Washer
Unavailable
391
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership
278001751
Unavailable
398
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership
278001308
Unavailable
409
Plug
515175812
$2.19
415
Female Terminal
515175806
$0.99
437
SEAL - Call your local BRP dealership
515175886
Unavailable
438
Latch
515175883
$9.12
439
LOCK - Call your local BRP dealership
515175884
Unavailable
440
COVER - Call your local BRP dealership
515175885
Unavailable
452
HOUSING COVER - Call your local BRP dealership
710000342
Unavailable
456
Cushion
278000805
$3.28
490
SEAL WIRE - Call your local BRP dealership
710000394
Unavailable
491
FEMALE HOUSING - Call your local BRP dealership
710000395
Unavailable
492
Female Housing 32 Pins
710000396
Unavailable
501
FEMALE TERMINAL - Call your local BRP dealership
710000412
Unavailable
503
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710000414
Unavailable
525
SHRINK TUBING - Call your local BRP dealership
710000482
Unavailable
538
FEMALE TERMINAL - Call your local BRP dealership
278001210
Unavailable
541
Not Available As Spare Part - Friction Washer
Unavailable
542
Not Available As Spare Part - Friction Washer
Unavailable
543
Not Available As Spare Part - Friction Washer
Unavailable
545
Not Available As Spare Part - Friction Washer
Unavailable
546
Not Available As Spare Part - Friction Washer
Unavailable
547
Not Available As Spare Part - Friction Washer
Unavailable
552
Female Terminal
278001310
Unavailable
597
Terminal Retainer
515176055
Unavailable
598
Female Housing
515176051
Unavailable
601
Latch
515176056
Unavailable
643
Female Terminal
278001977
Unavailable
659
Wire Seal
278001065
$7.69
660
Fuse Holder
278001987
$15.49
693
FEMALE TERMINAL - Call your local BRP dealership
278002031
Unavailable
694
Pt Female Housing
278002051
Unavailable
2007
GROMMET - Call your local BRP dealership
293720042
Unavailable
2008
BATTERY POSITIVE CABLE - Call your local BRP dealership
278002026
Unavailable
2010
Battery Cable
278002082
Unavailable
