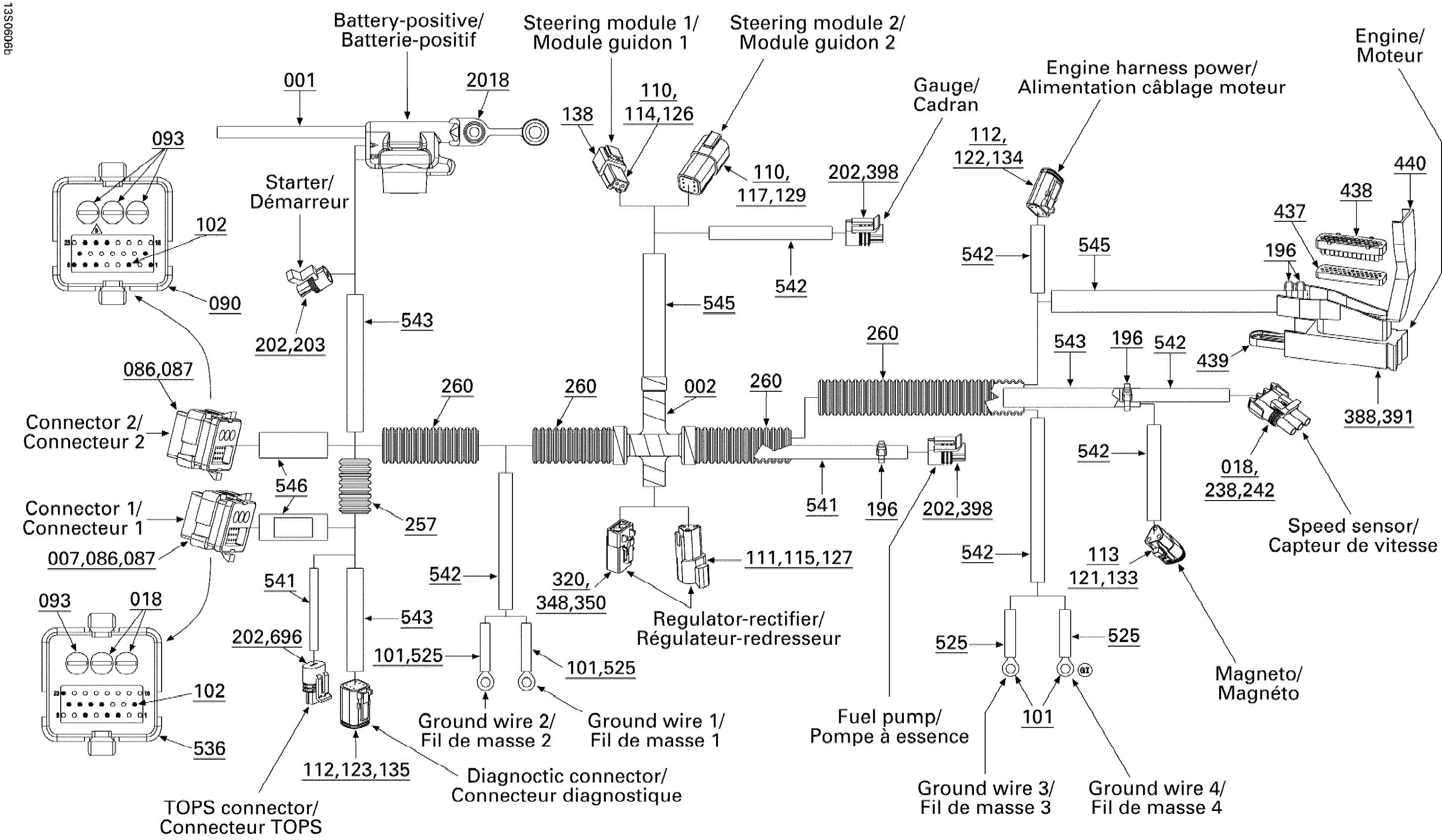

Sea-doo GTI Rental, 2006 Electrical Harness Main Harness Diagram

#

Description
Price

001

WIRING HARNESS - Call your local BRP dealership | Includes 001 to 2018

278002069

Unavailable

007

FEMALE TERMINAL - Call your local BRP dealership

409011700

Unavailable

018

Seal

278001223

Unavailable

086

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

087

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

090

Male Terminal Housing, 26 Circuits

278001062

Unavailable

093

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

101

Open Barrel Terminal

278001392

$4.12

102

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

110

Male Terminal

278000631

$4.12

111

Male Terminal

515175823

$4.42

112

Female Terminal

278000632

$1.69

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

114

Male Housing, 2 Circuits

409206900

$8.98

115

Male Housing

278002378

$10.91

117

Male Terminal Housing, 6 Circuits

710001539

$15.57

120

Female Connector, 2 Circuits

409207300

$9.60

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$28.43

122

Male Connector, 4 Circuits | CE

278000739

$14.92

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

126

Male Lock, 2 Circuits

409207500

$3.02

127

Male Lock, 3 Circuits

409207600

$3.02

129

Female Lock, 6 Circuits

278000735

$3.02

133

Female Lock

409207200

$3.48

134

Male Lock, 4 Circuits | CE

278000738

$2.91

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

$2.55

196

Tie Wrap 142 mm

293750002

$0.88

202

Female Terminal

278001114

$2.55

203

Male Connector, 2 Circuits

278001113

$12.65

229

Female Terminal

278000223

$2.55

238

Male Housing, 3 Circuits

278000273

$7.59

242

Wire Seal

278000218

$3.48

257

Was 409901600 Tubing 19mm

219704398

$89.97

260

Was 515175319 Tubing 22 mm

219704423

$11.84

320

Female Terminal

515175567

$6.03

348

Female Terminal Housing, 2 Circuits

278001673

$23.05

350

Female Lock, 2 Circuits

278001671

$3.22

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

398

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.48

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

536

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

619

BUS CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278001892

Unavailable

696

Connector, 3 Circuits

278002064

$25.35

2018

BATTERY CABLE - Call your local BRP dealership

278002137

Unavailable
