Description

Price

1

Seat Ass'y | Includes 1 to 11a

269001275

Unavailable

2

Seal

293200101

Unavailable

3

Latch Ass'y

269700109

$24.99

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

RIVET 1/4 X 5/8 - Call your local BRP dealership

293150074

Unavailable

8

Stainless Flat Washer M6

234061600

$0.33

9

Seat Strap

269001285

Unavailable

10

Rivet | Model-T3

293150067

$2.89

11

Grommet

293720067

$12.99

11a

Not Available As Spare Part - Friction Washer

Unavailable

12

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

13

SEAT RECEPTACLE - Call your local BRP dealership

269001389

Unavailable

14

Pop Rivet 3/16"

293150123

$4.29

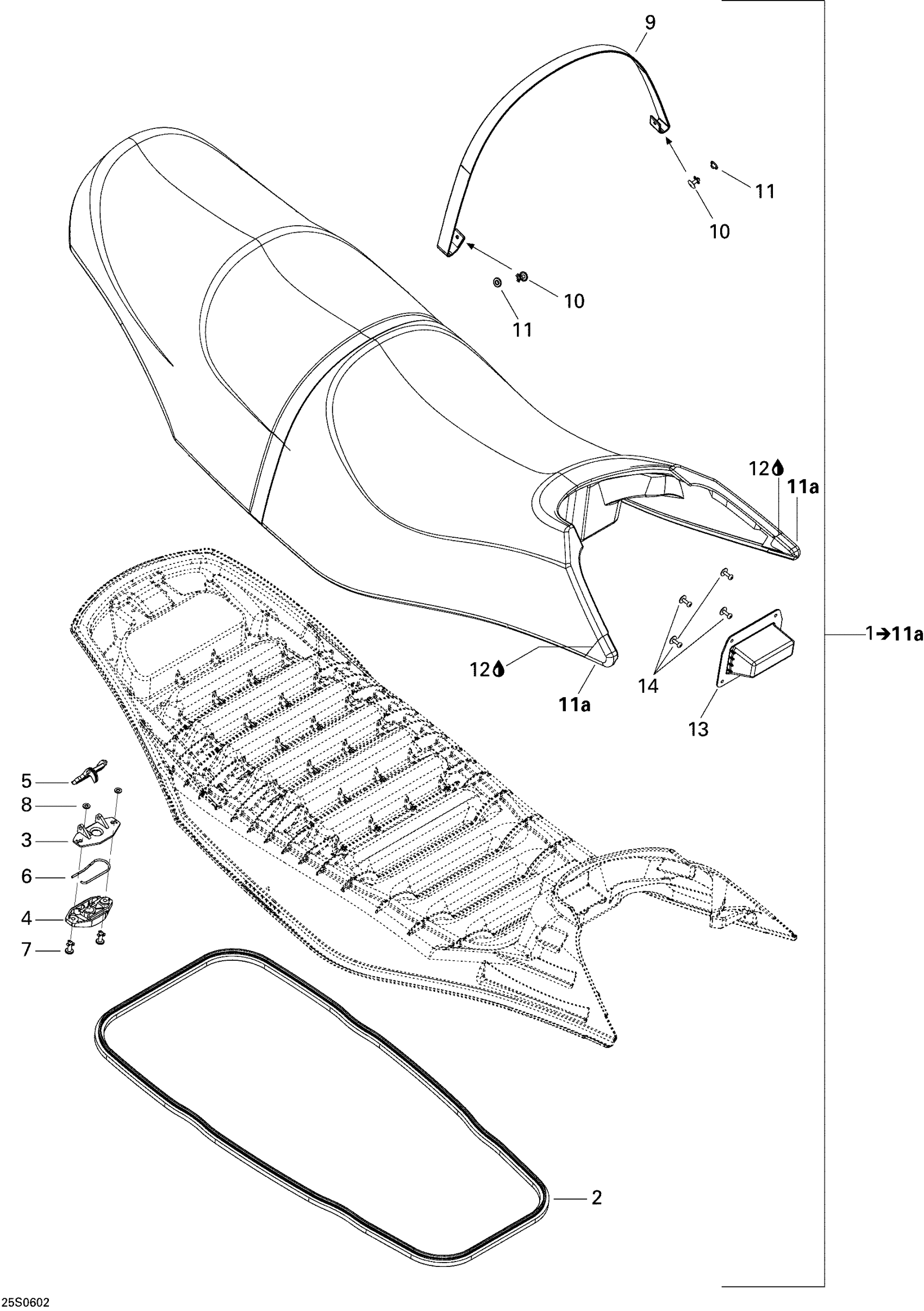

Sea-doo GTI Rental, 2006 09- Seat Diagram

Seat Ass'y | Includes 1 to 11a

Seal

Latch Ass'y

Latch Ass'y

Latch Ass'y

Latch Spring

RIVET 1/4 X 5/8 - Call your local BRP dealership

Stainless Flat Washer M6

Seat Strap

Rivet | Model-T3

Grommet

Not Available As Spare Part - Friction Washer

Était Was 413705800 Loctite 414 , 29.5 c.c

SEAT RECEPTACLE - Call your local BRP dealership

Pop Rivet 3/16"
