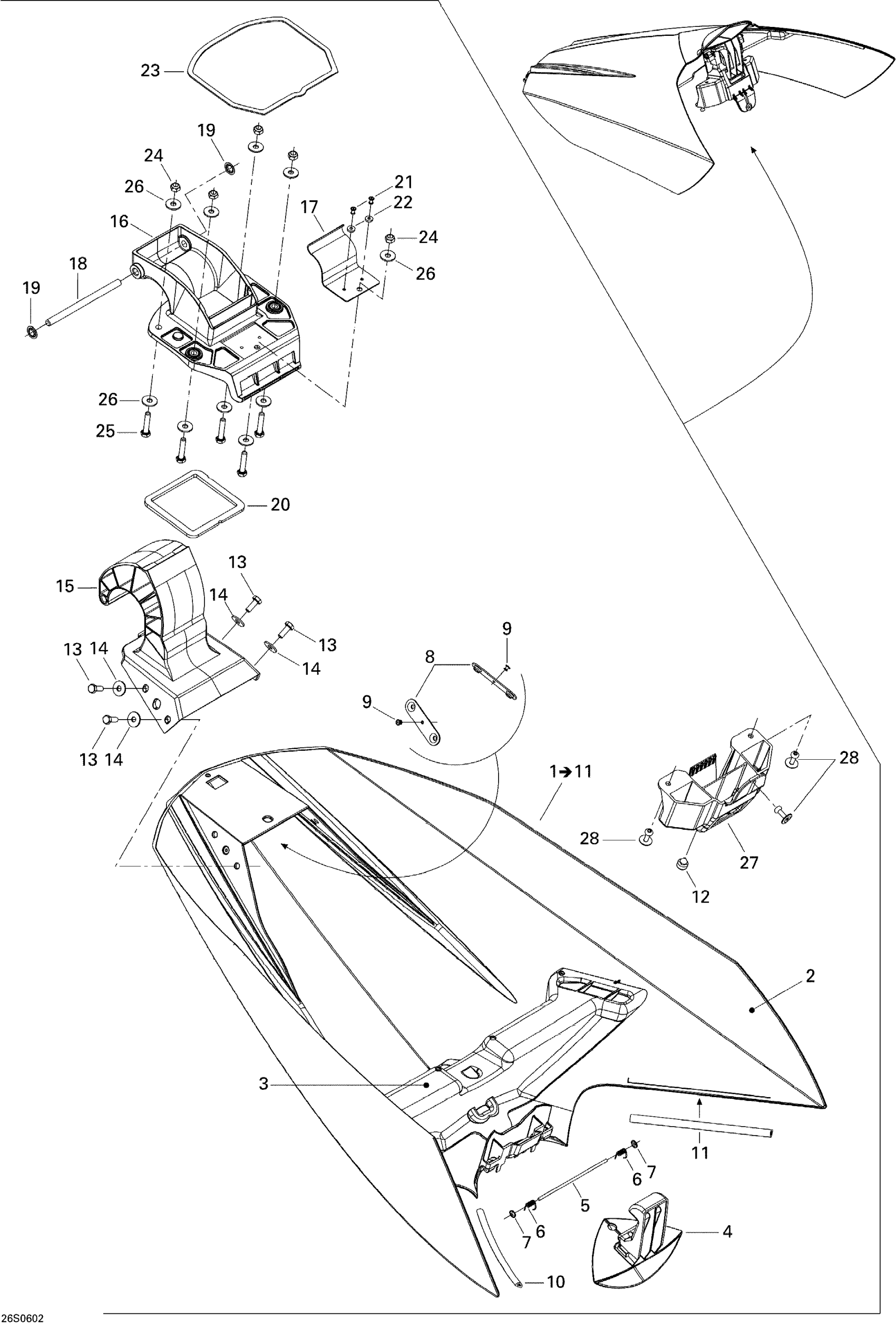

Sea-doo GTI Rental, 2006 Front Cover Diagram

#

Description
Price

1

STORAGE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 10

269501626

$599.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

LATCH LEVER - Call your local BRP dealership

269700098

Unavailable

5

PIN - Call your local BRP dealership

269501479

Unavailable

6

Latch Spring

291000922

$7.39

7

PUSH NUT - Call your local BRP dealership

250100061

Unavailable

8

PLATE - Call your local BRP dealership

277001479

Unavailable

9

Pop RIvet 1/8 X ,375

293150285

$0.33

10

GASKET - Call your local BRP dealership

293250176

Unavailable

11

GASKET - Call your local BRP dealership

293250176

Unavailable

12

Rubber Bumper

293830005

$8.09

13

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

14

Flat Washer M6, Stainless

234062600

$0.77

15

HINGE ASS'Y - Call your local BRP dealership | Includes 12 to 18

269501446

Unavailable

16

HINGE ASS'Y - Call your local BRP dealership | Includes 12 to 18

269501446

Unavailable

17

HINGE SPRING - Call your local BRP dealership

269700099

Unavailable

18

AXLE - Call your local BRP dealership

269700024

Unavailable

19

Push Nut

250100046

$2.11

20

UPPER GASKET - Call your local BRP dealership

293250155

Unavailable

21

Pop Rivet 1/8

293150143

$0.48

22

Flat Washer

211200007

Unavailable

23

GASKET - Call your local BRP dealership

293250166

Unavailable

24

Elastic Stop Nut M6, Brass

232561200

$4.23

25

Hex. Screw M6 X 30

207063060

$1.89

26

Flat Washer M6, Stainless

234062600

$0.77

27

LATCH BASE - Call your local BRP dealership

269501480

Unavailable

28

Pop Rivet 3/16"

293150123

$4.29
