07- Steering System

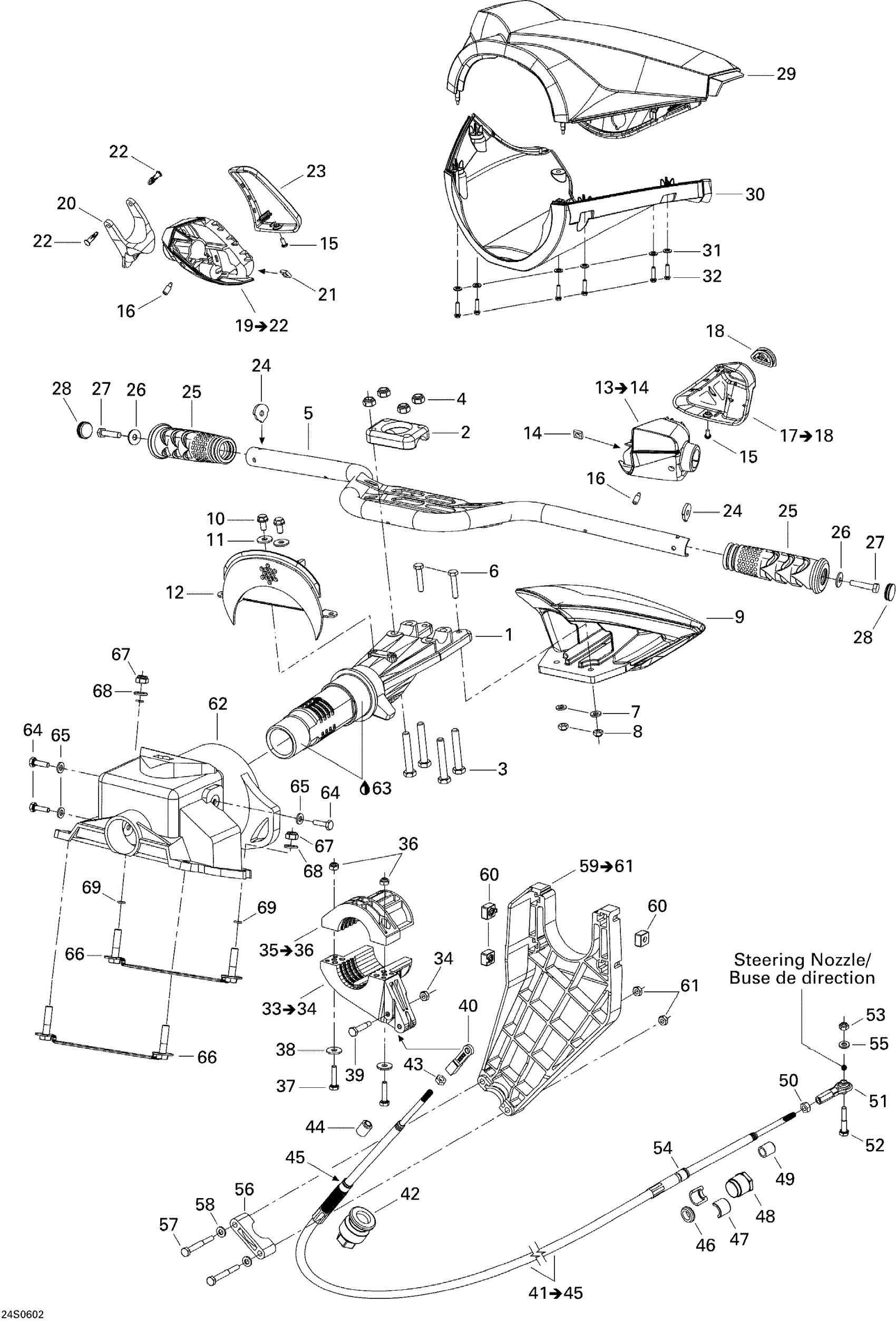

Sea-doo GTI Rental, 2006 07- Steering System Diagram
#
1
Steering Stem
277000562400
Unavailable
2
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
3
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
4
Hex. Elastic Nut M8 Brass
232581200
$2.22
5
Handlebar
277001460
Unavailable
6
Hex. Screw M6 X 30
207063060
$1.89
7
Stainless Flat Washer M6
234061600
$0.33
8
Elastic Stop Nut M6, Brass
232561200
$4.23
9
Handle Pad
277001467
Unavailable
10
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
11
Flat Washer M6, Stainless
234062600
$0.77
12
PLATE - Call your local BRP dealership
277000549
Unavailable
13
HOUSING ASS'Y - Call your local BRP dealership | Includes 8 to 9
277001481
Unavailable
14
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
15
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
16
Socket Head Screw M6 X 16
250000036
$9.00
17
HOUSING COVER ASS'Y - Call your local BRP dealership | Includes 13 to 14
277001440
Unavailable
18
Stop Knob
278001713
$18.49
19
THROTTLE HOUSING ASS'Y - Call your local BRP dealership | Includes 16 to 19
277001483
Unavailable
20
THROTTLE HANDLE - Call your local BRP dealership
277001485
Unavailable
21
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
22
PIN - Call your local BRP dealership
277000381
Unavailable
23
THROTTLE HOUSING COVER - Call your local BRP dealership
277001023
Unavailable
24
Insert Grip Handle
277001863
$8.83
25
Handle Grip, Slate Grey
277001336
$19.49
26
Flat Washer M6, Stainless
234062600
$0.77
27
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
28
Black, Cap
277000203
$9.39
29
UPPER STEERING COVER, BLACK - Call your local BRP dealership
277000952
Unavailable
30
LOWER STEERING COVER, BLACK - Call your local BRP dealership
277001145
Unavailable
31
Flat Washer M5, Stainless
234051600
$0.77
32
Hex. Flange Screw K40 X 16
241141660
$1.48
33
STEERING STEM ARM - Call your local BRP dealership | Includes 33 to 34
277001472
Unavailable
34
Hex. Elastic Stop Nut M6
232561600
$1.15
35
Arm Thrust
277001473
Unavailable
36
Hex. Elastic Stop Nut M6
232561600
$1.15
37
Hex. Screw M6 X 25
207162560
$1.47
38
Flat Washer M6, Stainless
234062600
$0.77
39
Hex. Screw M6 X 30
211000081
$3.59
40
Ball Joint
277001180
$35.99
41
Steering Cable | Includes 38 to 42
277001580
$201.49
42
Ajustment Knob
277000782
$22.99
43
Hex. Nut 1/4"-28
211100056
$0.69
44
Wiper Rod
277001582
$11.11
45
End Piece
277001583
$14.49
46
Rubber Washer
293830063
$1.90
47
Half Ring
277001527
$10.37
48
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
49
Wiper Rod
277001582
$11.11
50
Hex. Nut 1/4"-28
211100056
$0.69
51
Ball Joint
277000775
$51.99
52
Hex. Screw M6 X 35
207063560
$2.22
53
Elastic Stop Nut M6, Brass
232561200
$4.23
54
End Piece
277001583
$14.49
55
Stainless Flat Washer M6
234061600
$0.33
56
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
57
Hex. Screw M6 X 50
207065060
$2.22
58
Stainless Flat Washer M6
234061600
$0.33
59
CABLE SUPPORT - Call your local BRP dealership | Includes 59 to 61
277001470
Unavailable
60
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
61
Hex. Elastic Stop Nut M6
232561600
$1.15
62
STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61
277001471
Unavailable
63
Synthetic Grease, 400 G
293550010
Unavailable
64
Hex. Forming Screw M6 X 20
207162060
$1.29
65
Stainless Flat Washer M6
234061600
$0.33
66
Steering Support
277001000
Unavailable
67
Hex. Elastic Nut M8 Brass
232581200
$2.22
68
Stainless, Flat Washer 8 mm
234081600
$0.55
69
O-Ring
293300123
$1.03
