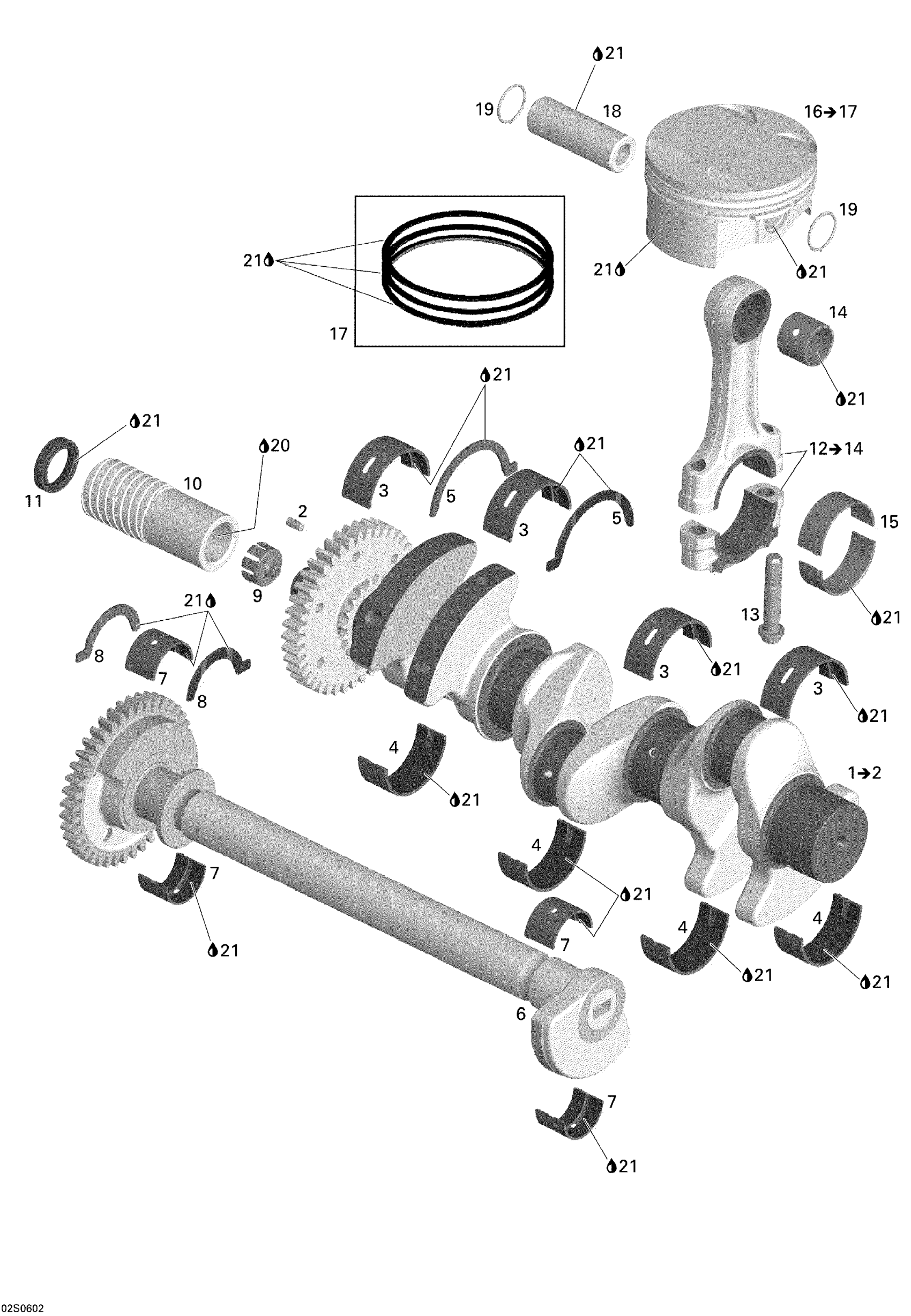

Sea-doo GTI Rental, 2006 Crankshaft, Pistons And Balance Shaft Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 2

420819348

$949.99

2

Drive Pin 5 X 10

420929650

$1.68

3

Plain Half-Bearing

420933456

$16.34

4

Plain Half-Bearing

420933466

$16.34

5

Half-Ring

420933475

$11.63

6

Balance Shaft Ass'Y This part replaces 420837556.

420837559

$614.49

7

Plain Bearing Half

420933442

$19.99

8

Half-Ring

420933470

$7.41

9

Stop Sleeve

420660280

$14.75

10

Output Sleeve This part replaces 420847952.

420947770

$121.99

11

Sealing Ring

420630551

$14.83

12

Connecting Rod Ass'y | Includes 12 to 14 This part replaces 420917516.

420917516

Unavailable

13

Connecting rod Screw M10 X 1

420640991

$11.63

14

Bearing Sleeve

420933510

$14.22

15

Half-Bearing

420933523

$19.19

16

Piston Ass'y, Standard, 99.96 mm | Traxter 500 CVT, Includes 4 To 5

420296565

$180.99

16

Piston Ass'y, Oversize, 100.21 mm | Traxter 500 CVT, Includes 4 To 5

420296566

$164.99

17

Piston Set Ring, Standard | Traxter 500 CVT

420890380

$65.99

17

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

420890381

$71.49

18

Piston Pin

420216250

$23.99

19

Circlip

420845580

$2.64

20

Sealant Loctite 648

219703000

$45.99

21

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
