Partiron

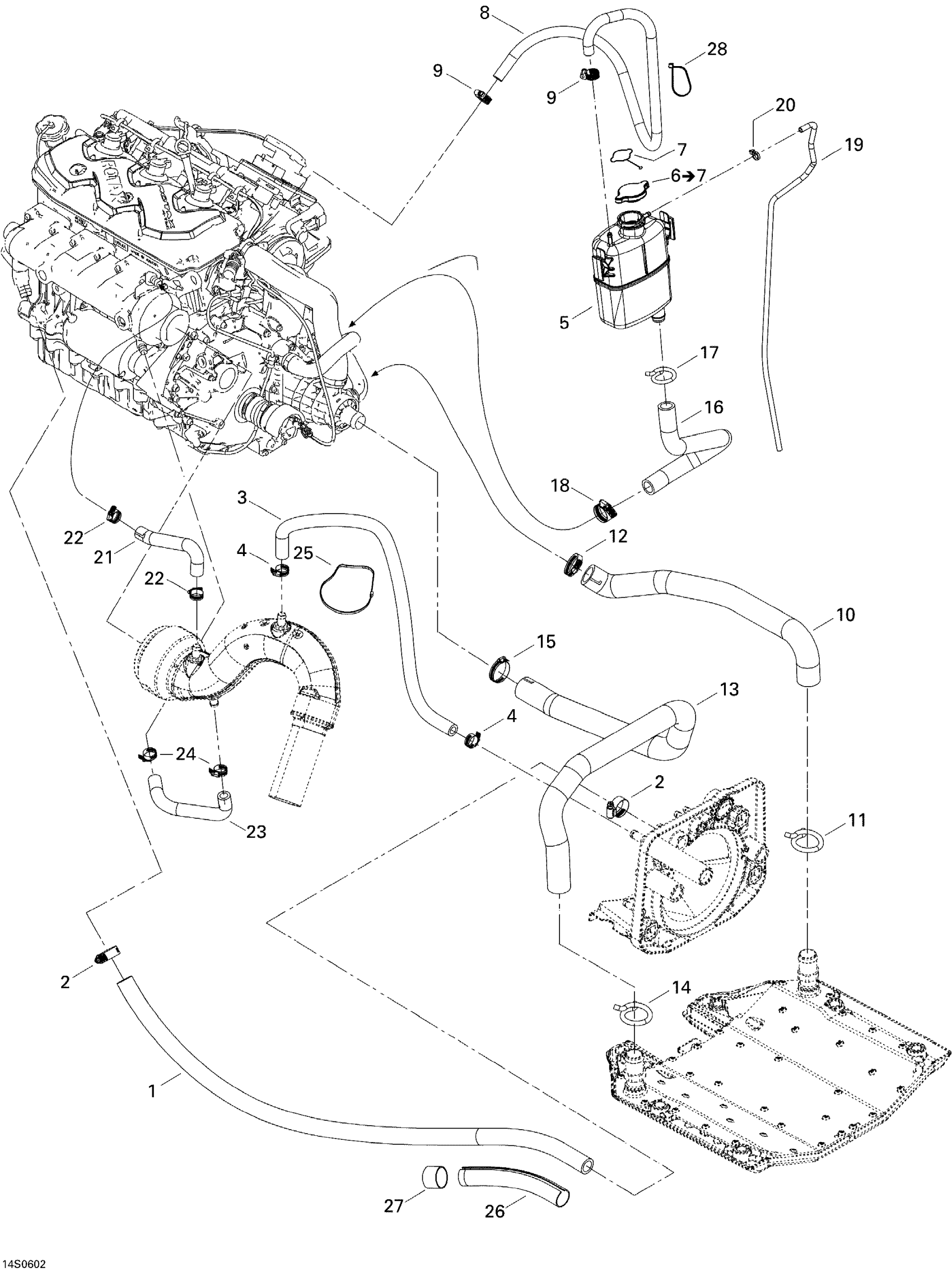

Sea-doo GTI Rental, 2006 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

2

Tridon Gear Clamp

293650051

$4.19

3

Was 276000001 Hose 12.5 mm

219704394

$51.99

4

Tridon Gear Clamp

293650172

$3.09

5

Coolant Tank

276000086

$109.99

6

Pressure Cap | Includes 720 to 720a

276000100

$25.99

7

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

8

Was 275500549 Hose 1/4"

219704357

$194.99

9

Tridon Gear Clamp

293650170

$1.99

10

RH Radiator Hose

276000248

$58.99

11

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

12

Tridon Gear Clamp

293650045

$5.69

13

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

14

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

15

Tridon Gear Clamp

293650045

$5.69

16

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

17

Spring Clamp

293650115

$3.09

18

Tridon Gear Clamp

293650019

$5.82

19

Polyurethane Hose 10000Mm Long

219704410

$56.99

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

21

Formed Hose

276000155

Unavailable

22

Tridon Gear Clamp

293650172

$3.09

23

FORMED HOSE - Call your local BRP dealership

276000156

Unavailable

24

Tridon Gear Clamp

293650172

$3.09

25

Tie Wrap 368 mm

293750008

$1.04

26

Tubing 25 MM 1000MM Long

219704402

$15.99

27

SHRINK TUBING - Call your local BRP dealership

276000125

Unavailable

28

Tie-Rap 180 mm

414115200

$0.11
