Description

Price

1

HEX SCREW M8 X 50 - Call your local BRP dealership

207185060

$1.79

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

4

Hex. Screw 10-14 X 7/8”

211000023

$3.59

6

Elastic Stop Nut M6, Brass

232561200

$4.23

7

Flat Washer 10 mm, Stainless

234000600

$1.46

8

Stainless Flat Washer M6

234061600

$0.33

9

Flat Washer 8 mm, Stainless

234082600

$2.43

13

Safety Nut (DESS Switch)

278002963

$3.28

22

Battery, 30 Amperes

278001882

$184.01

31

Cable-Starter

278003398

$63.99

33

Throttle Position Sensor

278002283

$119.99

46

LH Throttle Sensor

278002284

$119.99

95

O.T.A.S. Sensor Ass'y

278003009

$109.99

97

Battery Support

278003306

$20.99

99

Starter Relay

278003012

$42.49

110

Battery Ground Cable

278003270

$41.49

113

Switch RH Mode/Set

278002602

$126.99

123

Diagnostic Connector

278002704

$19.49

127

LCD Gauge | Model GTI LTD 155

278003378

$1.00

145

Switch LH VTS/Sport/Eco | Package STD

278002767

$126.99

161

Main Harness Ass'y

278003256

$779.99

168

Support

278003048

$21.99

169

O.T.A.S Actuator

278003537

$42.99

171

Safety Lanyard Ass'y, RFID | Includes 8020 to 8020j

278003402

$84.99

171

Safety Lanyard Ass'y, Learning / RFID

278003401

$84.99

180

Steering Harness Ass'y | GTI LTD, WAKE

278003262

$349.99

191

Tie Wrap 368 mm

293750008

$1.04

196

Battery Bolt Kit

250000282

$7.29

201

Tie-Rap 180 mm

414115200

$0.11

209

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

222

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

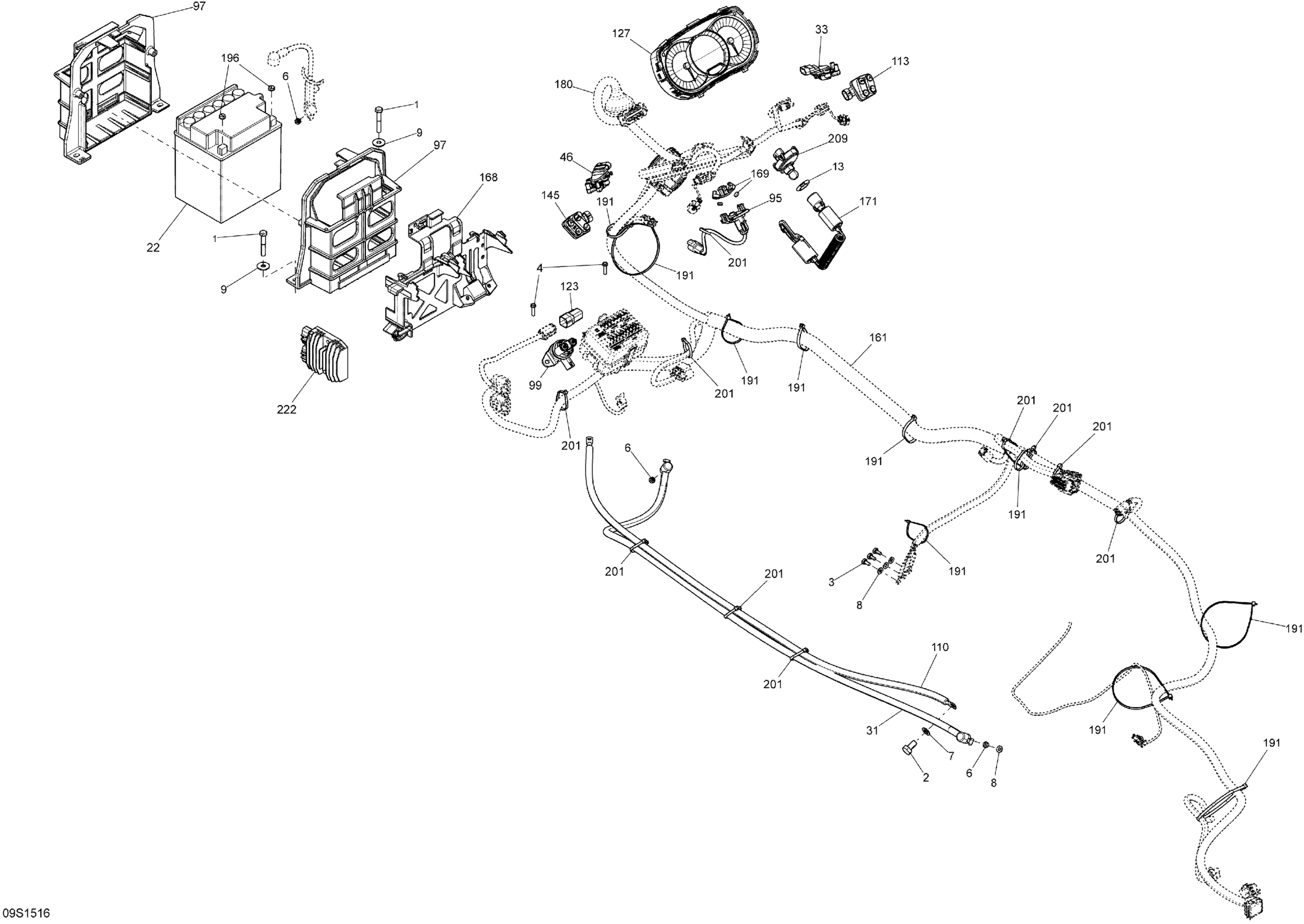

Sea-doo GTI LTD 155, 2015 Electrical System _09S1516 Diagram
