Partiron

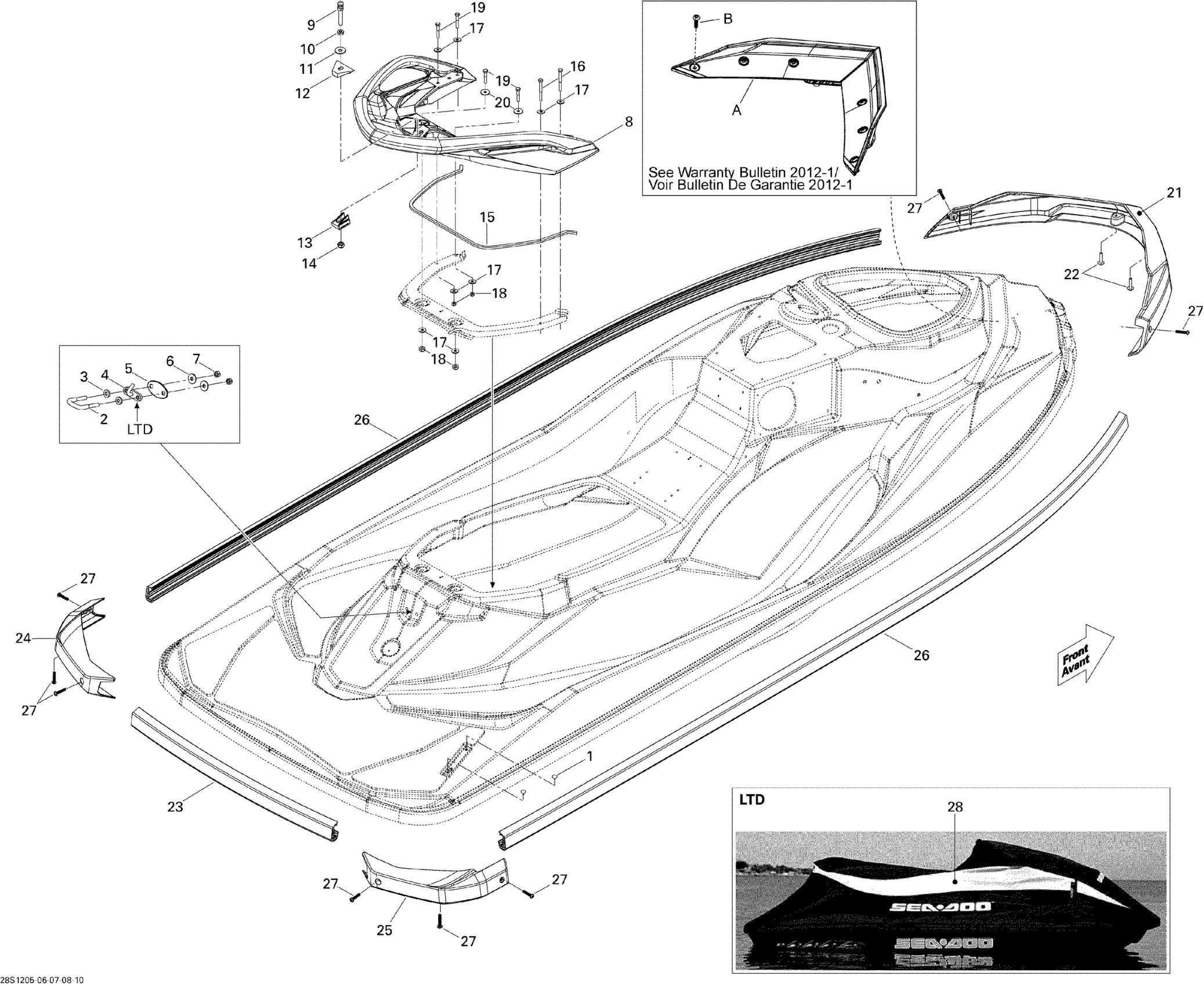

Sea-doo GTI LTD 155, 2012 Body, Rear View Diagram

#

Description
Price

1

Black, Snap Cap

293000014

$0.85

2

U-Clamp

292000933

$32.47

3

Flat Washer M8.5 x 18

293050001

$1.29

4

Hook | Package LTD

291002351

$67.13

5

Black, Finition Plate

291001386

$8.57

6

Flat Washer 8 mm, Stainless

234082600

$1.98

7

Hex. Elastic Nut M8 Brass

232581200

$1.29

8

Black, Rear Handle Ass'y

291004625

$113.07

9

Stud Seat

291003877

$38.32

10

Hex. Jam Nut M10

232100600

$1.85

11

Flat Washer 10 mm, Stainless

234002600

$1.85

12

Seat Stud Spacer

269002125

$7.36

13

SEAT STUD SUPPORT - Call your local BRP dealership

269002126

Unavailable

14

Elastic Stop Nut M10, Brass

232501200

$2.16

15

Gasket 3000Mm Long

219704378

$22.07

16

Hex. Screw M6 x 55

207065560

$0.83

17

Flat Washer M6, Stainless

234062600

$0.64

18

Elastic Stop Nut M6, Brass

232561200

$3.51

19

Hex. Screw M6 X 40

207164060

$2.74

20

Flat Washer M6.6 X 22

250200022

$1.87

21

Front Bumper This part replaces 291005401.

291004277

$61.72

22

Hexagonal Cap Screw M6 X35

250000399

$3.61

23

Lateral Bumper

291003872

$73.10

24

Black, Corner Bumper This part replaces 291004152.

291004278

$25.97

25

Black, Corner Bumper This part replaces 291004153.

291004279

$25.97

26

Lateral Bumper

291003872

$73.10

27

Screw Torx M6.81 X 30

250000626

$1.85

28

Trailering Cover | Package LTD

295100722

$315.87

A

Deep Black, Body Deflector

291004273

$20.77

B

Screw Torx M6.81 X 30

250000626

$1.85
