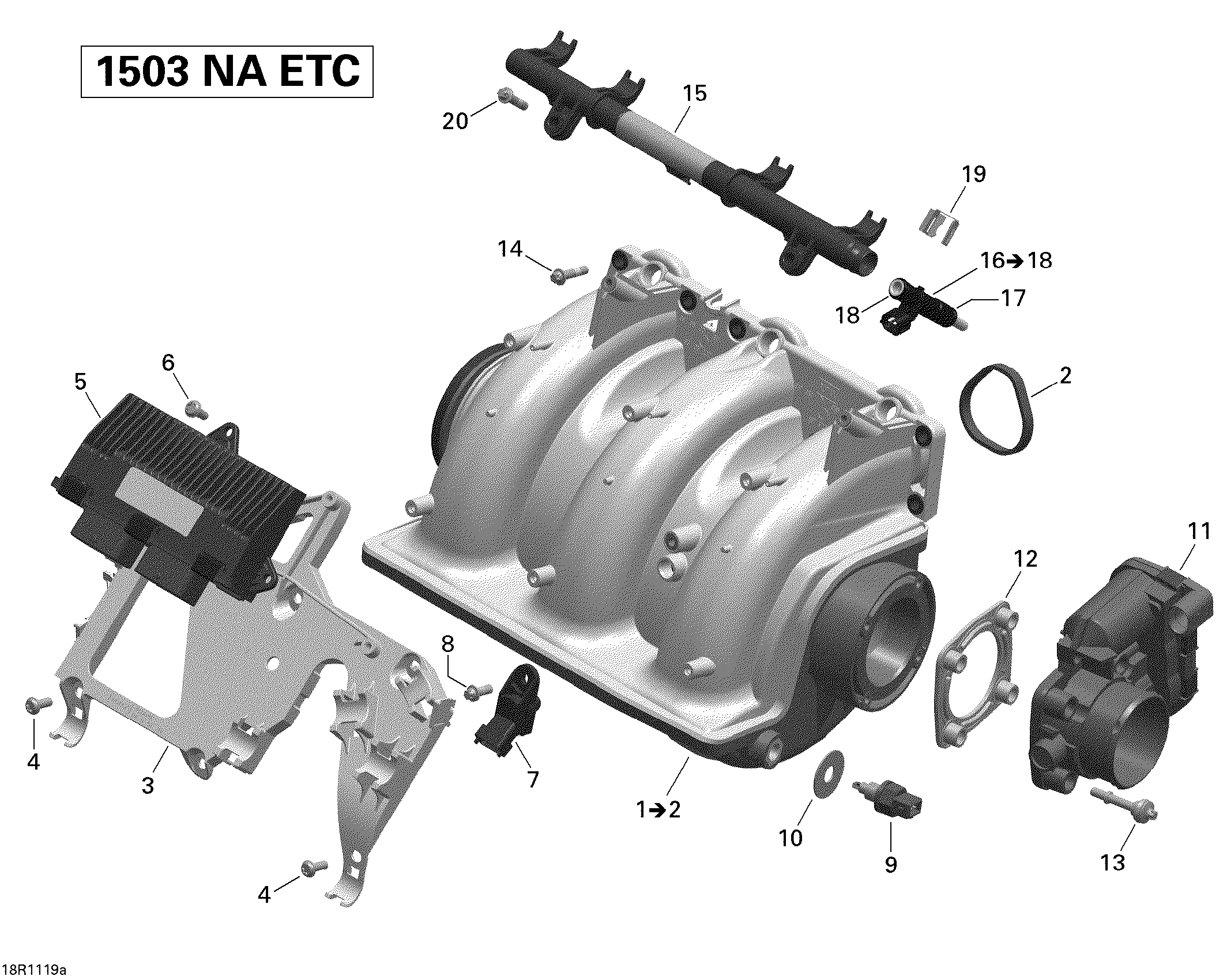

Sea-doo GTI LTD 155, 2012 Air Intake Manifold And Throttle Body Sea-Doo Diagram

Air Intake Manifold | Includes 1 to 2

420867921

$418.63

Gasket | Included in gasket kit

420950740

$3.61

Base Plate

420460842

$19.47

Torx Flange Screw M6 X 16

420641588

$1.74

Electronic Box

420666373

$952.22

Torx Flange Screw M6 X 16

420641588

$1.74

Pressure Sensor

420274058

$125.34

Torx Flange Screw M6 X 16

420641048

$2.46

Temperature Sensor This part replaces 420222423.

420222421

$31.82

Thrust Washer

420227987

$12.97

Throttle Body Socket Ass’y

420892592

$401.67

Rubber Gasket

420950792

$8.89

Allen Screw M6 x 30,5

420440561

$3.67

Torx Flange Screw M6 X 25

420641238

$2.68

Fuel Rail

420874414

$120.22

Fuel Injector | Includes 16 to 18 This part replaces 420874834.

420874846

$111.77

O-Ring

420431890

$4.95

O-Ring

420631220

$11.48

Injector Clip

420853030

$2.46

Torx Flange Screw M6 X 25

420641238

$2.68
