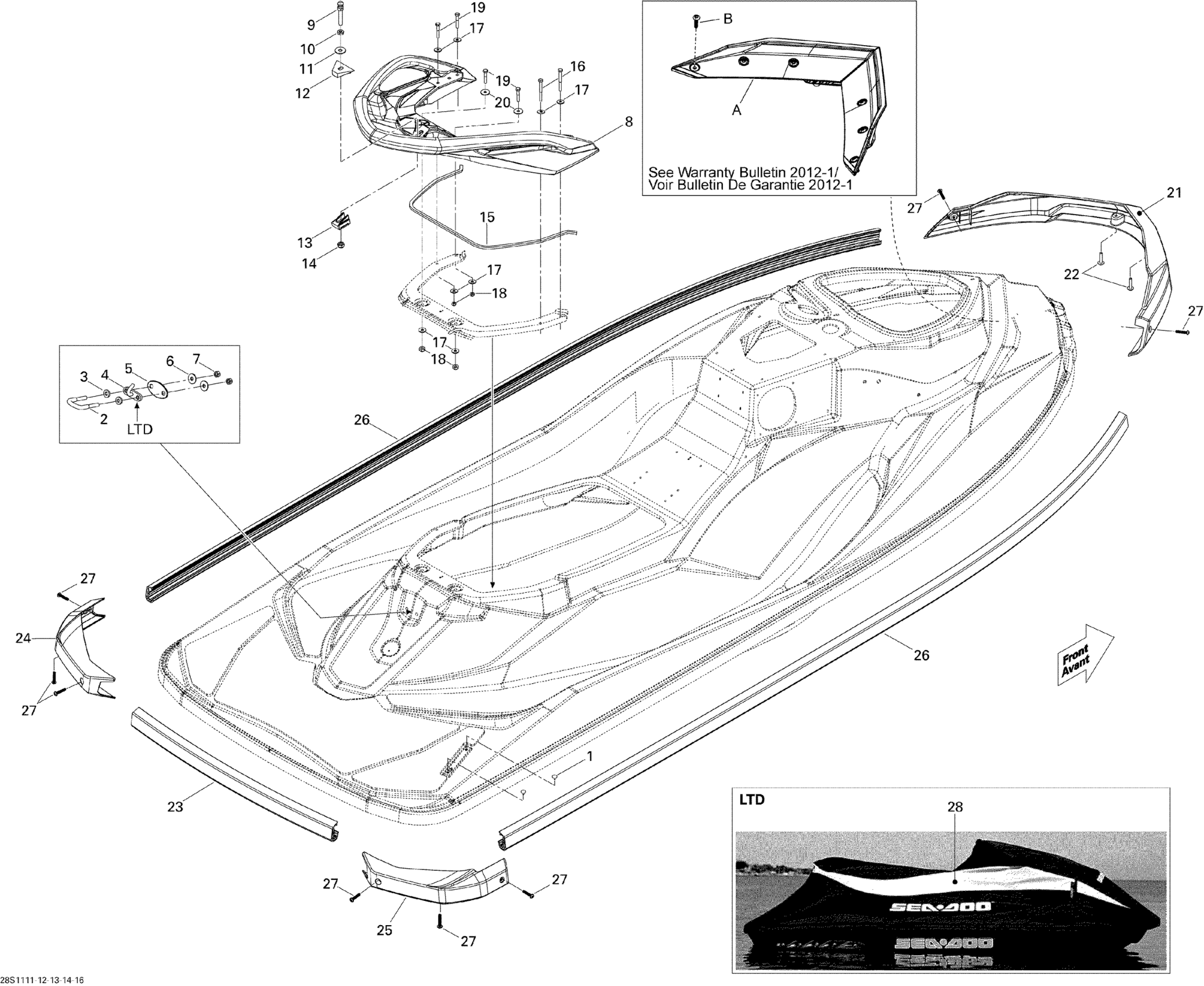

Sea-doo GTI LTD 155, 2011 Body, Rear View Diagram

#

Description
Price

1

Black, Snap Cap

293000014

$1.09

2

U-Clamp

292000933

$59.49

3

Not Available As Spare Parts

XXX

Unavailable

4

Hook | Package LTD

291002351

$69.99

5

Black, Finition Plate

291001386

$10.99

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Hex. Elastic Nut M8 Brass

232581200

$2.22

8

Black, Rear Handle Ass'y

291004625

$142.99

9

Stud Seat

291003877

$48.99

10

Hex. Jam Nut M10

232100600

$2.22

11

Flat Washer 10 mm, Stainless

234002600

$2.22

12

Seat Stud Spacer

269002125

$8.19

13

SEAT STUD SUPPORT - Call your local BRP dealership

269002126

$8.19

14

Elastic Stop Nut M10, Brass

232501200

$2.64

15

Gasket 3000Mm Long

219704378

$26.49

16

Hex. Screw M6 x 55

207065560

$1.01

17

Flat Washer M6, Stainless

234062600

$0.77

18

Elastic Stop Nut M6, Brass

232561200

$4.23

19

Hex. Screw M6 X 40

207164060

$3.38

20

Flat Washer M6.6 X 22

250200022

$2.72

21

Front Bumper This part replaces 291005401.

291004277

$76.49

22

Hexagonal Cap Screw M6 X35

250000399

$4.44

23

Lateral Bumper

291003872

$148.49

24

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

25

Black, Corner Bumper This part replaces 291004153.

291004279

$33.99

26

Lateral Bumper

291003872

$148.49

27

Screw Torx M6.81 X 30

250000626

$3.91

28

Trailering Cover | Package LTD

295100722

$361.99

A

Deep Black, Body Deflector

291004273

$26.99

B

Screw Torx M6.81 X 30

250000626

$3.91
