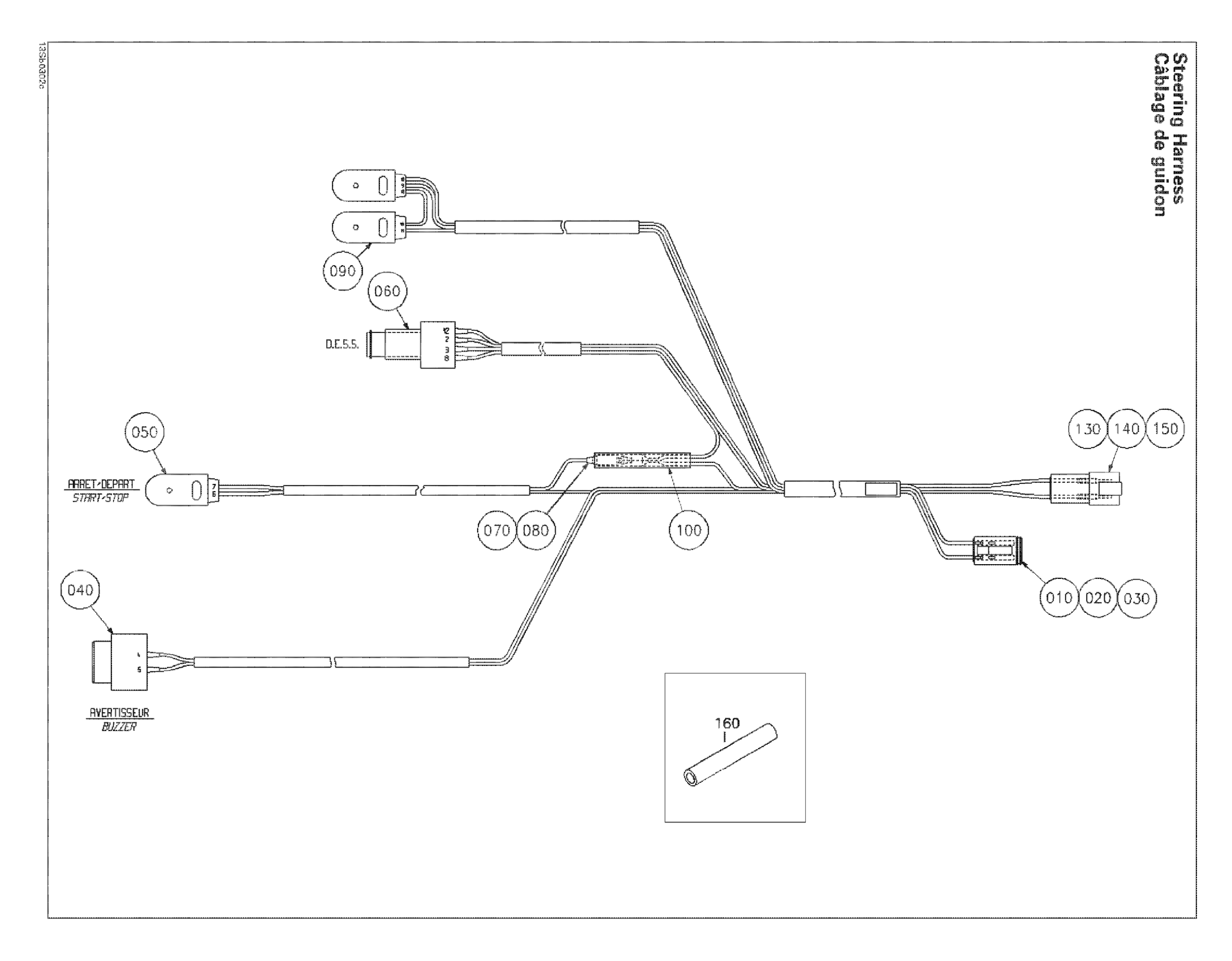

Sea-doo GTI LE RFI, 6103/6104, 2003 Steering Harness Diagram

#

Description
Price

10

Steering Harness | Includes 10 to 420

278001798

Unavailable

10

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

20

Female Terminal

278000632

$2.09

30

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

40

BUZZER - Call your local BRP dealership

278001586

Unavailable

50

SWITCH - Call your local BRP dealership

278001587

Unavailable

60

SAFETY SWITCH - Call your local BRP dealership

278001790

Unavailable

70

Male Terminal

278000230

$4.39

80

Insulated Sheath

278001008

$3.28

90

Switch, Mode/Set

278001836

Unavailable

100

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

130

Male Housing

278002378

$13.99

140

Male Lock, 3 Circuits

409207600

$3.19

150

Male Terminal

278000631

$4.39

160

Housing 9 mm, Meter

293100012

Unavailable

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

Pvc Vinyl Tubing

293100011

Unavailable

Heat Shrink Tubing 25 mm

512059668

Unavailable
