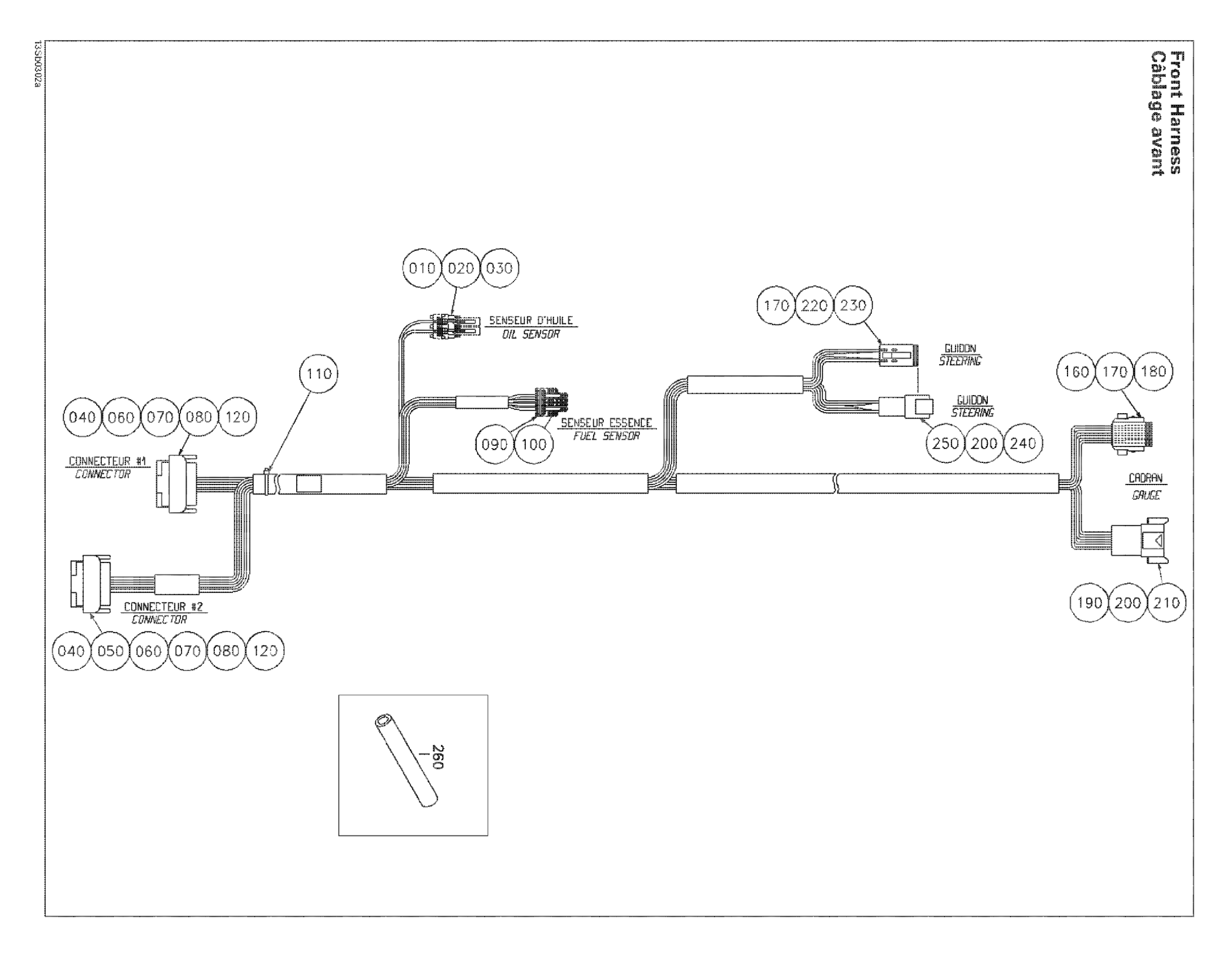

Sea-doo GTI LE RFI, 6103/6104, 2003 Front Harness Diagram

#

Description
Price

10

FRONT HARNESS - Call your local BRP dealership

278001805

Unavailable

10

Wire Seal

278000218

$4.39

20

Female Terminal

278000223

$3.19

30

Male Connector, 2 Circuits

278000220

$15.49

40

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

50

Male Terminal Housing, 26 Circuits

278001062

Unavailable

60

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

70

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

80

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

90

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

100

Female Terminal

278001114

$3.19

110

Tie Wrap 142 mm

293750002

$1.25

120

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

160

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

170

Female Terminal

278000632

$2.09

180

MALE HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001743

Unavailable

190

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

200

Male Terminal

278000631

$4.39

210

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

220

Male Lock, 4 Circuits | CE

278000738

$3.09

230

Male Connector, 4 Circuits | CE

278000739

$19.49

240

Female Lock, 6 Circuits

278000735

$3.19

250

Female Housing

278001137

Unavailable

260

Housing 9 mm, Meter

293100012

Unavailable

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

Pvc Vinyl Tubing

293100011

Unavailable

Heat Shrink Tubing 25 mm

512059668

Unavailable
