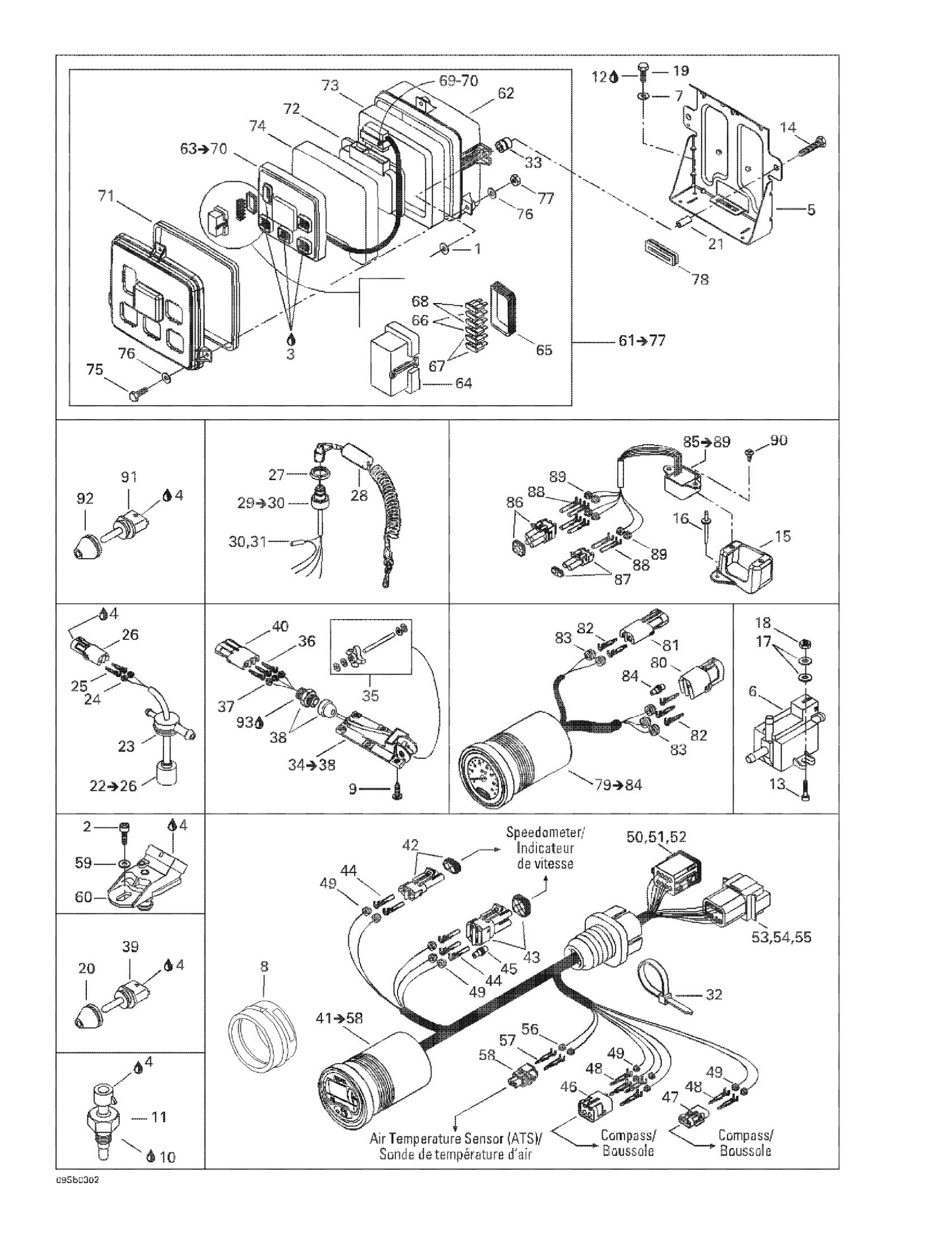

Sea-doo GTI LE RFI, 6103/6104, 2003 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Flat Washer M6, Stainless

234062600

$0.73

2

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.49

3

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

4

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

5

Box Support

278001856

Unavailable

6

Solenoid Valve

270600005

$45.49

7

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

8

Gauge Support

293720047

Unavailable

9

Phillips Screw M5 x 12

250000319

$1.18

10

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

11

Temperature Sensor

278002895

$36.54

12

Loctite 271, 10 ml

293800005

$23.85

13

Socket Head Screw M5 X 20

205052060

Unavailable

14

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

15

Support | GTI RFI LE

278001863

Unavailable

16

Pop Rivet 3/16"

293150080

Unavailable

17

Flat Washer | XT

211200035

$0.52

18

Hex. Elastic Nut M5 | X

232551600

$1.04

19

Hex. Screw 10-14 X 7/8”

211000023

$3.34

20

INSULATOR - Call your local BRP dealership

278001054

Unavailable

21

SPACER - Call your local BRP dealership

272000074

Unavailable

22

OIL LEVER SENSOR ASS'Y - Call your local BRP dealership

278001401

Unavailable

23

Grommet

293720008

$12.52

24

Wire Seal

278000218

$4.00

25

Male Terminal | XT Models

278000222

$2.93

26

Female Housing, 2 Circuits

278000217

$8.72

27

Safety Nut (DESS Switch)

278002963

$3.12

28

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

29

SAFETY SWITCH - Call your local BRP dealership

278001790

Unavailable

30

Female Terminal | DS 650 X

278001009

$2.93

31

Insulated Sheath

278000770

$6.73

32

Tie-Rap 180 mm

414115200

$0.10

33

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

34

Speed Sensor | Includes 26 to 30 / LE

278001595

Unavailable

35

Paddle Wheel Kit

295500108

Unavailable

36

Male Terminal | XT Models

278000222

$2.93

37

Wire Seal

278000218

$4.00

38

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

39

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

40

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

41

LCD Info Gauge | Includes 40 to 57 / LE

278001799

Unavailable

42

Male Connector, 2 Circuits

278000220

$12.66

43

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

44

Female Terminal

278000223

$2.93

45

Wire Seal

278000216

$2.93

46

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

47

Female Housing, 2 Circuits

278000217

$8.72

48

Male Terminal | XT Models

278000222

$2.93

49

Wire Seal

278001065

$5.85

50

MALE HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001743

Unavailable

51

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

52

Female Terminal

278001665

$4.28

53

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

54

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

55

Male Terminal | GTI RFI LE

278001664

Unavailable

56

Wire Seal

278000999

$2.93

57

Female Terminal

278000998

$4.00

58

Male Housing, 2 Circuits

278001005

$17.88

59

Stainless Flat Washer M6

234061600

$0.28

60

Pressure Sensor

270600040

$181.31

61

Not Available As Spare Part - Friction Washer

Unavailable

62

Electronic Box Base

278000938

Unavailable

63

Electronic Module | Includes 63 - 70.

278001848

Unavailable

64

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

65

Cover Seal

278001070

Unavailable

66

Fuse, 5 Amperes | CE

278000344

$3.12

67

Fuse, 10 Amperes | North America

278001197

$2.06

68

Fuse, 15 Amperes

278000343

$3.12

69

Female Terminal

278000998

$4.00

70

Wire Seal

278000999

$2.93

71

Gasket

293250063

Unavailable

72

Electronic Module

278001849

Unavailable

73

Lower Foam

278000941

Unavailable

74

Top Foam

278001100

Unavailable

75

Hex. Screw M6 X 30

207063060

$1.73

76

Flat Washer M6, Stainless

234062600

$0.73

77

Hex. Elastic Stop Nut M6

232561600

$1.06

78

Insulator

278001259

Unavailable

79

SPEEDOMETER - Call your local BRP dealership | Includes 34 to 39 / LE

278001822

Unavailable

80

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

81

Female Housing, 2 Circuits

278000217

$8.72

82

Male Terminal | XT Models

278000222

$2.93

83

Wire Seal

278001065

$5.85

84

Wire Seal

278000216

$2.93

85

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

86

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

87

Male Connector, 2 Circuits

278000220

$12.66

88

Female Terminal

278000223

$2.93

89

Wire Seal

278000218

$4.00

90

Black Dart

293730010

$0.93

91

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

92

INSULATOR - Call your local BRP dealership

278001054

Unavailable

93

Was 293800013 Loctite 56765

219704454

$63.40
