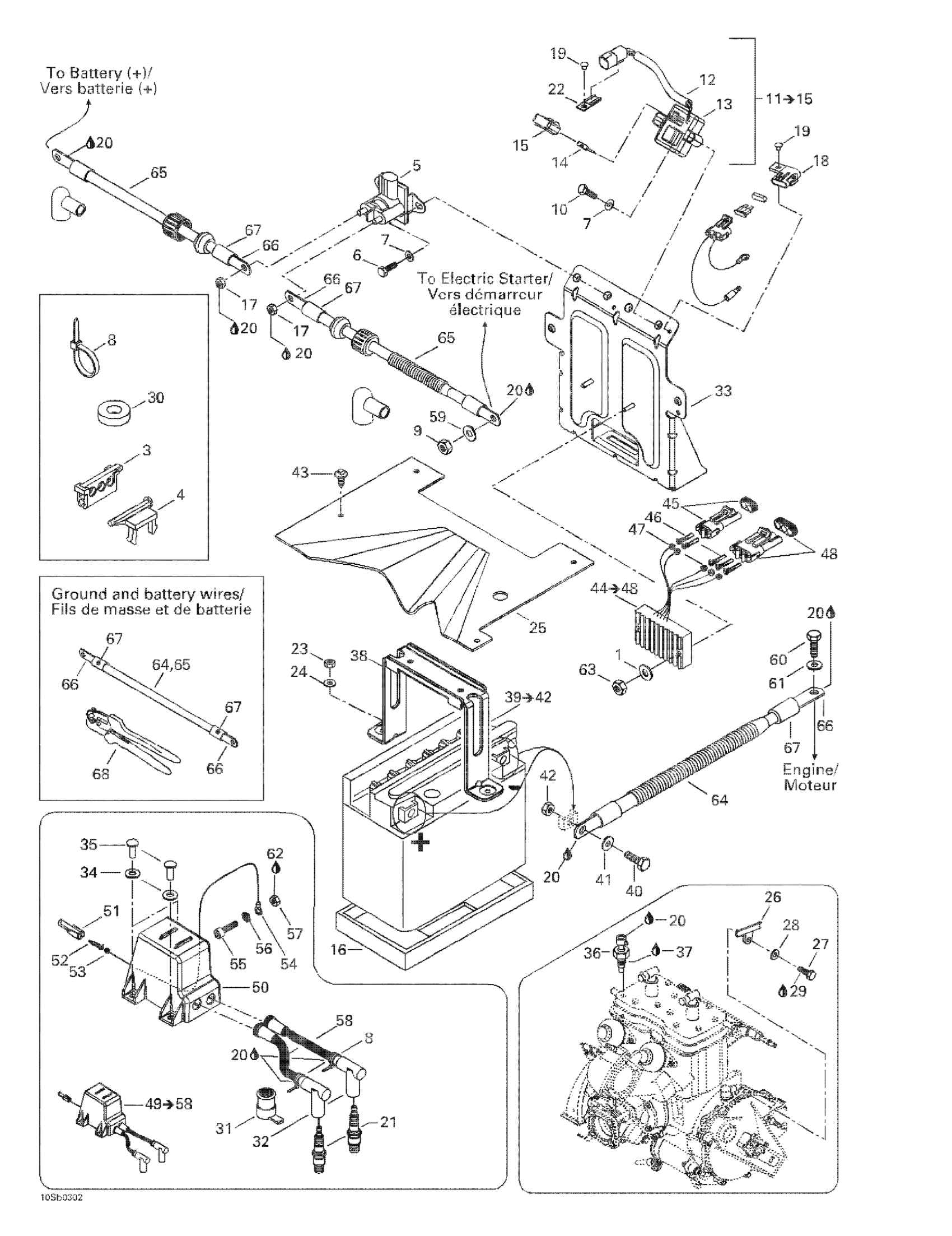

Sea-doo GTI LE RFI, 6103/6104, 2003 Electrical Box And Battery Diagram

#

Description
Price

1

Stainless Flat Washer M6

234061600

$0.25

2

Electrical Box Base

278001712

Unavailable

3

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

4

Collar Support

278001096

Unavailable

5

Starter Relay

278003012

$35.07

6

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

7

Flat Washer M6, Stainless

234062600

$0.64

8

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

$0.88

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 173 mm

293750009

$0.85

Tie-Rap 180 mm

414115200

$0.09

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

11

MAIN RELAY - Call your local BRP dealership

278001783

Unavailable

12

Cushion

278000805

$3.22

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Lower Battery Pad

278001746

Unavailable

17

Hex. Elastic Stop Nut M6

232561600

$0.92

18

Fuse Holder Cap

278001326

$6.03

19

Pop Rivet 3/16"

204000081

$1.37

20

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

21

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.03

22

Clip

270000141

$8.33

23

Hex. Elastic Nut M8

232581600

$1.25

24

Flat Washer 8 mm, Stainless

234082600

$1.98

25

Protector

275500577

Unavailable

26

Clip

278001873

Unavailable

27

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

28

Stainless Flat Washer M6

234061600

$0.25

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

Brass Washer

250200038

Unavailable

31

PROTECTOR CAP - Call your local BRP dealership

278001380

Unavailable

32

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

33

Box Support

278001856

Unavailable

34

Stainless Flat Washer M6

234061600

$0.25

35

Tapping Screw M6.3 X 32

209663260

Unavailable

36

Temperature Sensor

278002895

$31.82

37

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

38

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

39

Battery 19A | Includes 5 to 8

278001756

$162.45

40

Hex. Screw M6 X 16

207161644

$0.61

41

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

42

Hex. Nut M6

232061414

$0.44

43

Mount Dart

293730040

$0.86

44

Rectifier Ass’Y | Includes 30 - 34.

278001554

Unavailable

45

Male Connector, 2 Circuits

278000220

$11.02

46

Female Terminal

409007300

$0.36

47

Wire Seal

278000218

$3.48

48

Male Housing, 3 Circuits

278000273

$7.59

49

IGNITION COIL ASSY - Call your local BRP dealership | Includes 32 to 44

278001545

Unavailable

50

Ignition Coil

278001546

$129.32

51

Female Housing, 1 Circuit

278000161

$8.98

52

Male Terminal

409004300

$5.46

53

Wire Seal

278000218

$3.48

54

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

55

Socket Head Screw M6 X 20

205062044

$1.07

56

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

57

Elastic Stop Nut M6

232561414

$1.55

58

Spark Plug Wire, 270 mm

278001464

Unavailable

Spark Plug Wire

278001465

Unavailable

59

Stainless Flat Washer M6

234061600

$0.25

60

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

61

Stainless, Flat Washer 8 mm

234081600

$0.46

62

Loctite 271, 10 ml

293800005

$20.77

63

Hex. Elastic Stop Nut M6

232561600

$0.92

64

Ground Cable, Black | Includes 66,67

278001850

Unavailable

65

Battery Cable

278001803

Unavailable

65

Starter Cable

278001804

Unavailable

66

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

67

Not Available As Spare Part - Friction Washer

Unavailable

68

Not Available As Spare Part - Friction Washer

Unavailable
