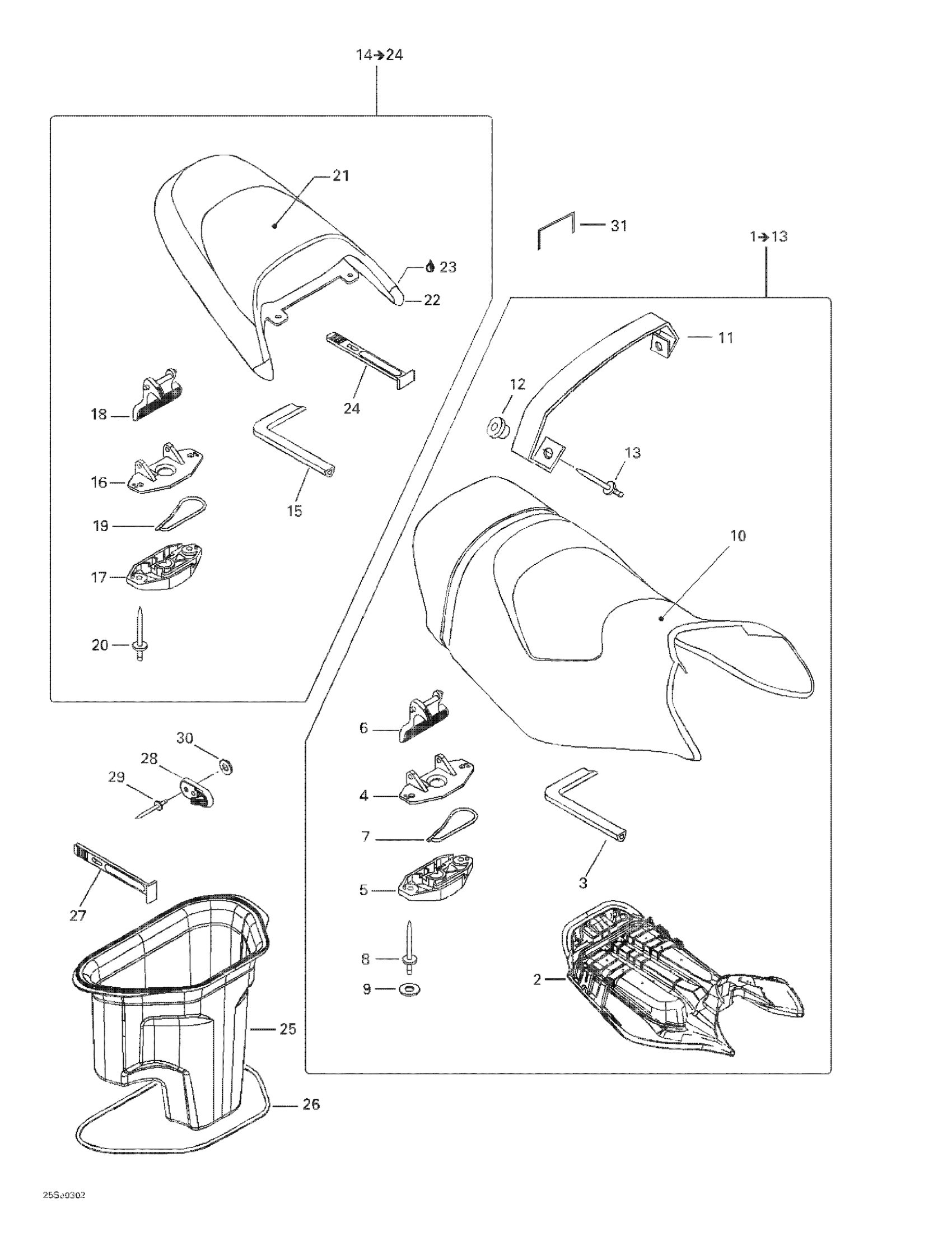

Sea-doo GTI LE RFI, 6103/6104, 2003 09- Seat Diagram
#
Description
Price
1
Seat Ass’Y | Includes 1 - 13.
269000885
Unavailable
2
Seat Base
269000829
Unavailable
3
Was 293200062 Seal
219704366
$76.49
4
Latch Ass'y
269700109
$24.99
5
Latch Ass'y
269700109
$24.99
6
Latch Ass'y
269700109
$24.99
7
Latch Spring
269700017
$9.19
8
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
9
Stainless Flat Washer M6
234061600
$0.33
10
Cover And Foam
269000839
Unavailable
11
Seat Strap
269000840
Unavailable
12
Grommet
293720067
$12.99
13
RIVET_POP 1/4 X ,725 - Call your local BRP dealership
293150078
Unavailable
14
Rear Seat | Includes 14 - 24.
269000892
Unavailable
15
Was 293200062 Seal
219704366
$76.49
16
Latch Ass'y
269700109
$24.99
17
Latch Ass'y
269700109
$24.99
18
Latch Ass'y
269700109
$24.99
19
Latch Spring
269700017
$9.19
20
RIVET 1/4 X 5/8 - Call your local BRP dealership
293150074
Unavailable
21
Rear Seat Cover
269000836
Unavailable
22
RH Seat Corner | LE
269000837
Unavailable
LH Seat Corner | LE
269000838
Unavailable
23
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
24
Strap
269502417
$17.69
25
Rear Tray
269500990
Unavailable
26
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
27
Strap
269502417
$17.69
28
Hook
269500521
$9.09
29
Pop Rivet 3/16"
293150039
$1.49
30
Flat Washer 5 mm, Stainless
234052600
$0.77
31
Staple
293730005
Unavailable
