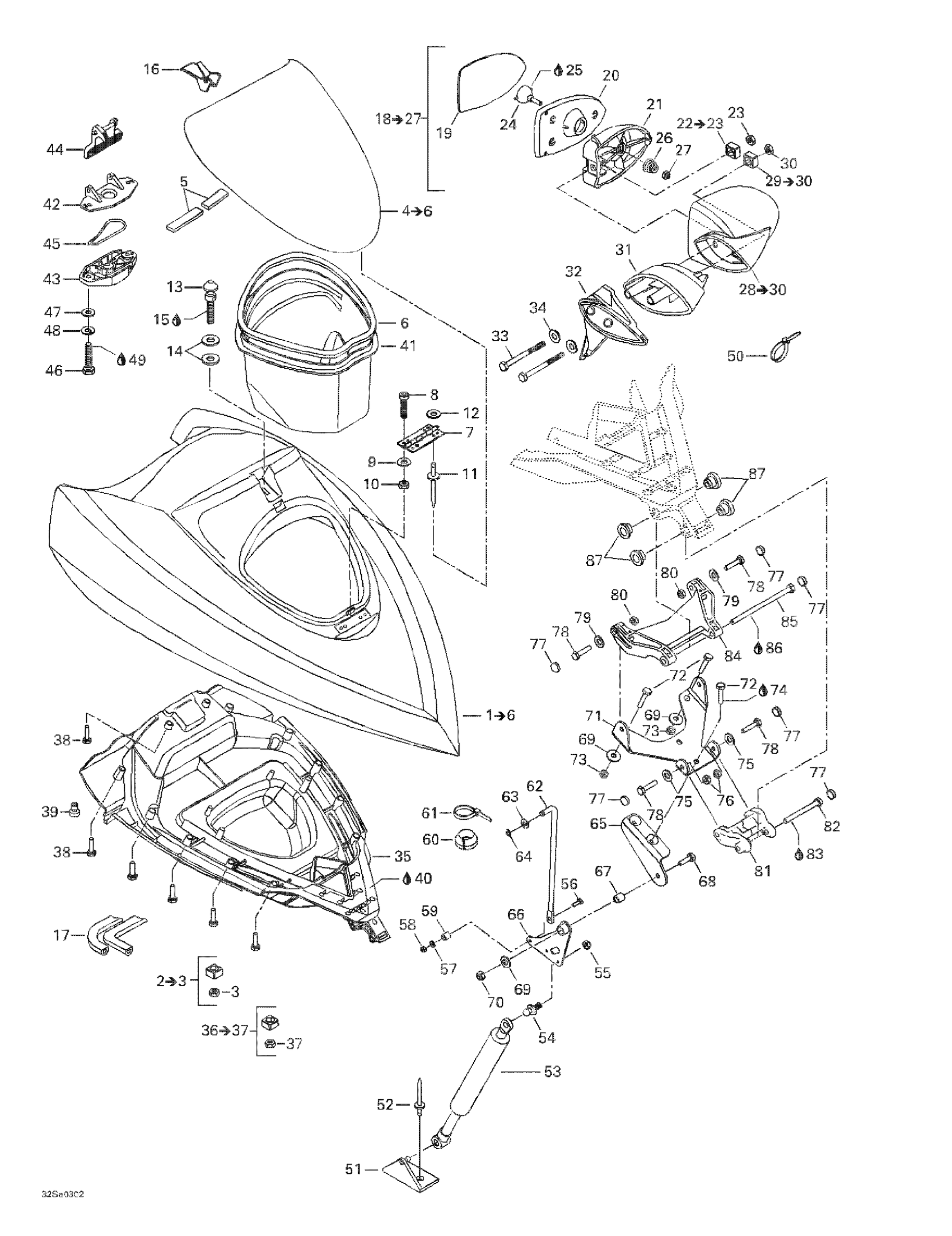

Sea-doo GTI LE RFI, 6103/6104, 2003 Front Storage Compartment Diagram

#

Description
Price

1

Cover | Includes Items 1 to 4 / LE

269501180

Unavailable

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

3

Hex. Nut M6

232061600

$1.15

4

Access Cover | Includes Items 5 to 7 / LE

269501185

Unavailable

5

Neoprene Seal (1PAC=3M)

219704364

$27.49

6

Was 293200017 Neoprene Seal

219704365

$149.99

7

HINGE - Call your local BRP dealership

269500338

Unavailable

8

Socket Head Screw M5 X 16

205451660

$1.15

9

Flat Washer 5 mm, Stainless

234052600

$0.77

10

Hex. Elastic Nut M5 | X

232551600

$1.15

11

Pop Rivet 3/16"

204000081

$1.49

12

Flat Washer 5 mm, Stainless

234052600

$0.77

13

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

14

Flat Washer M6, Stainless

234062600

$0.77

15

Loctite 243, 10 ml

293800060

$21.49

16

Latch

269501487

$16.99

17

Was 293200017 Neoprene Seal

219704365

$149.99

18

RH Mirror Ass’Y | Includes Items 19 to 28 / LE

269500685

Unavailable

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

19

RH Mirror

269500687

Unavailable

LH Mirror Ass'y | Includes Items 19 to 28 / LE

269500688

Unavailable

20

Frame Mirror

269500697

Unavailable

21

Housing Support | WAKE

269500807

Unavailable

22

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

23

Hex. Elastic Nut M8

232581600

$1.48

24

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

25

Synthetic Grease, 400 G

293550010

Unavailable

26

Mirror Spring

269500453

$10.49

27

Hex. Elastic Stop Nut M6

232561600

$1.15

28

Mirror Shell | Includes Items 29 to 31 / LE

269501182

Unavailable

29

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

30

Hex. Elastic Nut M8

232581600

$1.48

31

RH Mirror Support | LE

269501183

Unavailable

LH Mirror Support | LE

269501184

Unavailable

32

RH Spacer | LE

269500792

Unavailable

LH Spacer | LE

269500793

Unavailable

33

HEX. SCREW M8 X 120 - Call your local BRP dealership

230082060

Unavailable

34

Flat Washer 8 mm, Stainless

234082600

$2.43

35

Lower Storage Cover | Includes Items 36 to 39

269500000

Unavailable

36

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

37

Hex. Nut M6

232061600

$1.15

38

Hex. Flange Screw K40 X 13

241141360

$0.67

39

Rubber Bumper

293830005

$8.09

40

Glue Tube, Loctite 454, 20 G

413708300

$60.99

41

GLOVE BOX - Call your local BRP dealership

269501121

Unavailable

42

Latch Ass'y

269700109

$24.99

43

Latch Ass'y

269700109

$24.99

44

Latch Ass'y

269700109

$24.99

45

Latch Spring

269700017

$9.19

46

Hex. Screw M6 X 30

207063060

$1.89

47

Stainless Flat Washer M6

234061600

$0.33

48

Lock Washer Helical M6

234161601

$1.15

49

Loctite 243, 10 ml

293800060

$21.49

50

Tie Wrap 368 mm

293750008

$1.04

51

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

52

Avdel Rivet 3/16"

293150037

$0.56

53

GAS SHOCK - Call your local BRP dealership

269500988

Unavailable

54

Ball Head Stud

250300016

$14.81

55

Hex. Elastic Nut M8

232581600

$1.48

56

Hex. Screw M4 X 16 | Europe

207141660

$1.47

57

Flat Washer 4 mm, Stainless

234041600

$1.15

58

Elastic Stop Nut M4

232541600

$1.15

59

Spacer

269500841

Unavailable

60

Cable Grommet

293720063

Unavailable

61

Tie-Rap 180 mm

414115200

$0.11

62

ROD - Call your local BRP dealership

269500842

Unavailable

63

Stainless Flat Washer M6

234061600

$0.33

64

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

65

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

66

LEVER - Call your local BRP dealership

269501020

Unavailable

67

SPACER - Call your local BRP dealership

269501022

Unavailable

68

Hex. Screw M6 X 30

207163060

$1.48

69

Flat Washer M6, Stainless

234062600

$0.77

70

Hex. Elastic Stop Nut M6

232561600

$1.15

71

PIVOT SUPPORT - Call your local BRP dealership

269500703

Unavailable

72

Hex. Forming Screw M6 X 20

207162060

$1.29

73

Hex. Elastic Stop Nut M6

232561600

$1.15

74

Loctite 243, 10 ml

293800060

$21.49

75

Stainless Flat Washer M6

234061600

$0.33

76

Hex. Elastic Stop Nut M6

232561600

$1.15

77

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

78

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

79

Stainless Flat Washer M6

234061600

$0.33

80

Hex. Elastic Stop Nut M6

232561600

$1.15

81

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

82

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

83

Loctite 243, 10 ml

293800060

$21.49

84

REAR ARM - Call your local BRP dealership

269500705

Unavailable

85

Hex. Screw M6 X 100

230060060

$7.41

86

Loctite 243, 10 ml

293800060

$21.49

87

Sleeve

269500706

$4.65
